AOOSER Automatic Assembly Line of Electric Vehicle Battery, Energy Storage Battery and Power Battery Pack

AOOSER Automatic Assembly Line of Electric Vehicle Battery, Energy Storage Battery and Power Battery Pack

Item NO.:Battery Pack Product

Origin:China

Warranty:One year limited warranty with life time support

AOOSER Automatic Assembly Line of Electric Vehicle Battery, Energy Storage Battery and Power Battery Pack

Description:

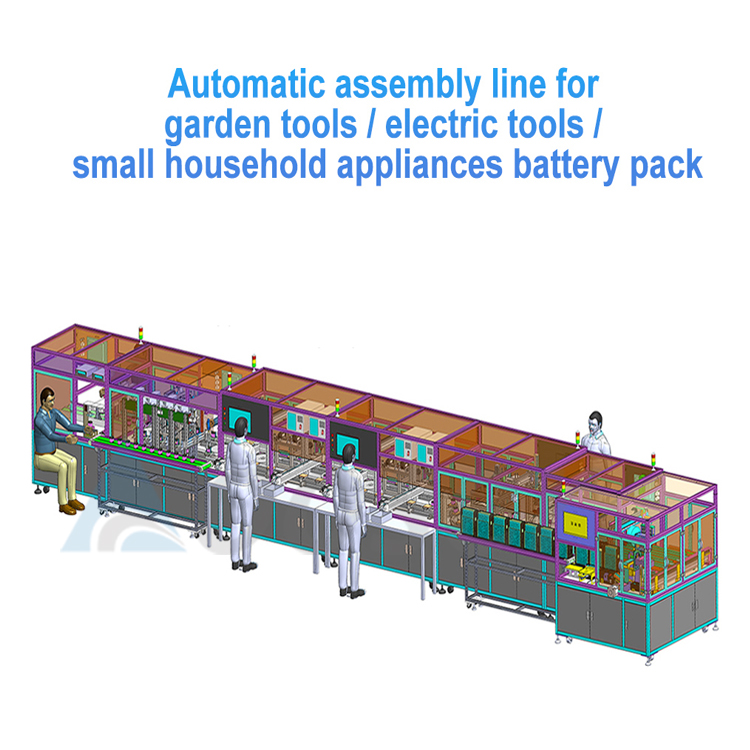

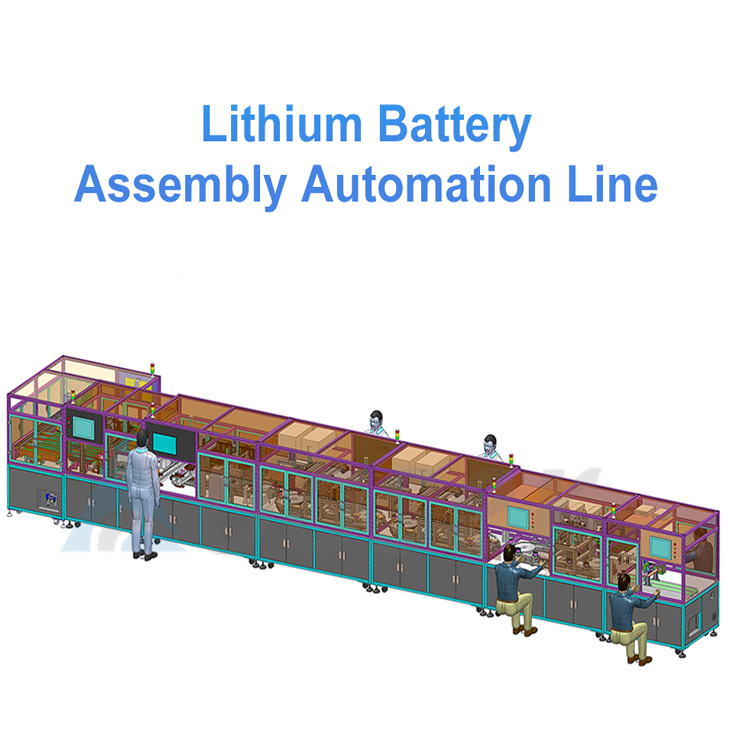

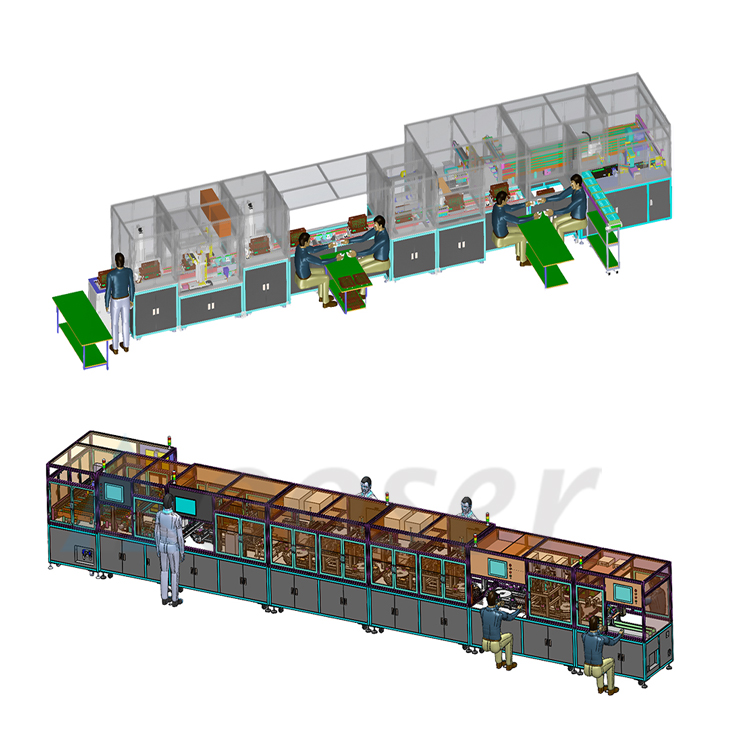

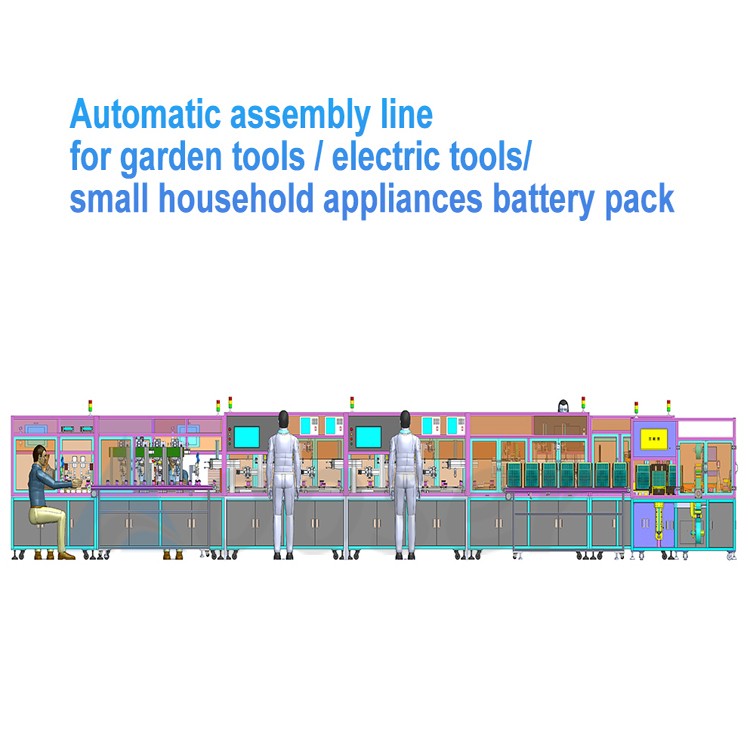

The production line mainly realizes the automatic production process of battery packs. The total length of the line is 16 meters, and the whole line is composed of the following equipment:

(1) Automatic sorting of battery loading test data from highland barley paper batteries;

(2) Robot;

(3) Battery pack bracket assembly;

(4) Nickel welding of battery pack;

(5) BMS PCB welding-6 battery components. Including multi-station fast and high-precision automatic battery pack production line, picking robot and CCD inspection effect.All devices can be linked together, with simple interface, convenient operation and convenient maintenance. Each device has its own control system and display screen.

Specification:

Automatic Lithium Battery Pack Assembling Line
1	Automatic batteries loading system	Full automatic battery cell transfer system, save labor cost
2	Automatic sticking machine	barley paper insulation pasting to prevent short circuit
3	Automatic sorting machine	Automatic sort the batteries by testing internal resistance and voltage
4	Automatic CCD testing machine	Inspect whether the positive(+) and negative(-) of batteries are misplaced
5	Automatic spot welding machine	Weld the cells together according to design, single side spot welding and double side welding is optional
6	Automatic Battery performance tester	For quickly checking the performance of semi-finished battery pack by charging, discharging, AC/DC resistance, testing different pressure/internal resistance etc.
7	Other Equipment	Other supporting device
