Product Name:Battery Pack Production Line
Type: Manual and Semi-automatic
Origin: China
Warranty: One year limited warranty with life time support
Lithium Ion Battery PACK Assembly Line for Laboratory and Battery Manufacturer
Description:
With the wide application of lithium batteries such as 18650 in the field of new energy,in order to save labor costs and enhance productivity, the semi-automatic and automated equipment has become one of the core competitiveness of battery companies.
The system integrates a lithium battery sticker system, a sorting and inspection system, an automatic battery pack assembly system, a CCD visual recognition system and an automatic spot welding system. It adopts automatic feeding and automatic sorting mechanism to ensure the consistency of the battery used in the product. At the same time, it can automatically scan and obtain cell bar codes, and classify and record bar odes and PACK bar codes.
Specification:
|

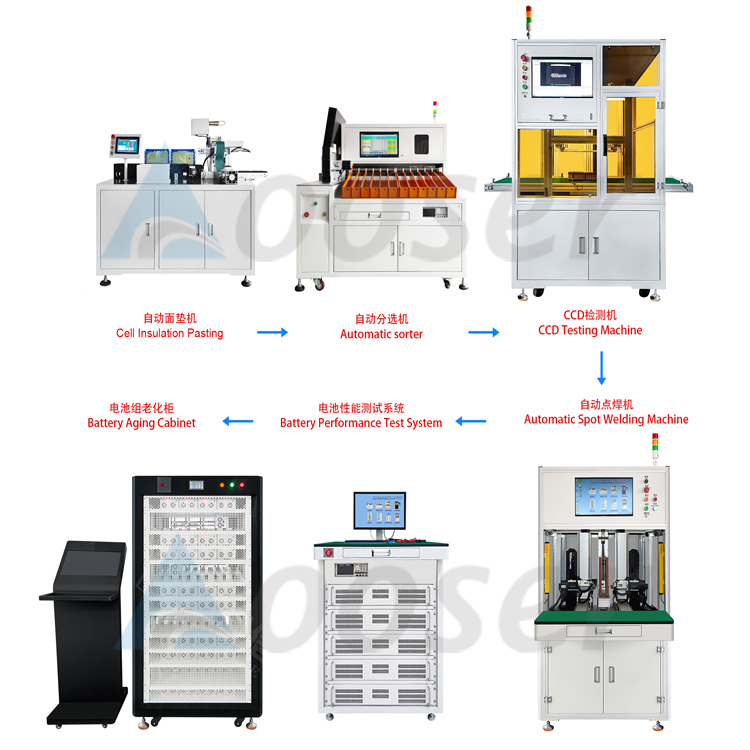

The equipment List for Lithium Battery PACK Assembly Line |
||
|
|
Product name |
Remark |
|
A |
Automatic sticking machine |
barley paper insulation pasting to prevent short circuit |
|
B |
Automatic sorting machine |
Automatic sort the batteries by testing internal resistance and voltage |
|
C |
CCD testing machine |
Inspect whether the positive(+) and negative(-) of batteries are misplaced |
|
D |
Automatic spot welding machine |
Weld the cells together according to design, single side spot welding and double side welding is optional |
|
E |
Battery performance tester |
For quickly checking the performance of semi-finished battery pack by charging, discharging, AC/DC resistance, testing different pressure/internal resistance etc. |
|
F |
Battery aging cabinet |
Remove early failure and unqualified component products, so that product reliability is relatively improved, and product quality is guaranteed |
|
G |
Others |
Other supporting facilities |
