Model: AS-UV-40A
Power: 1200W
Origin: China
Warranty: One year

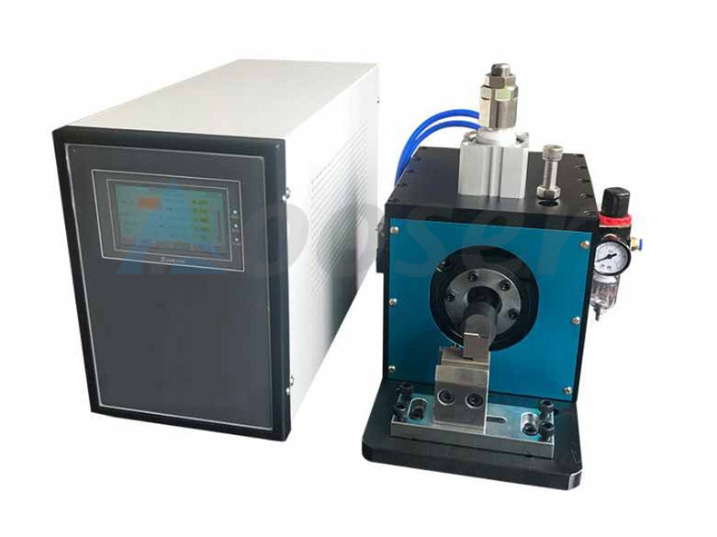

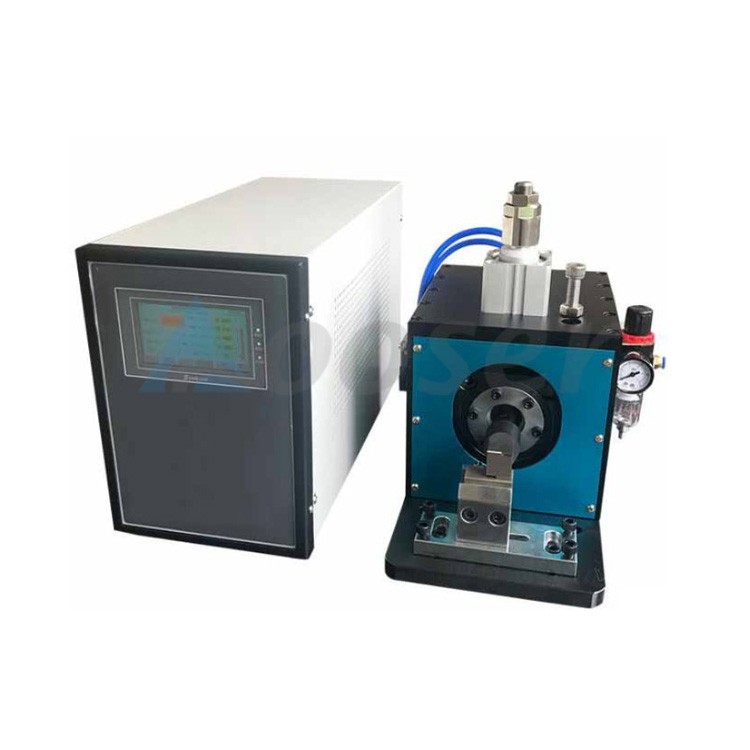

Description: Ultrasonic Spot Welding Machine is an ultrasonic metal welder designed for welding Li ion battery anode electrode sheets copper foil and Ni tab onto current collectors.
Description:
Ultrasonic Spot Welding Machine with Automatic frequency tracking function is an ultrasonic metal welder designed for welding Li ion battery anode electrode sheets copper foil and Ni tab onto current collectors to prepare Li-Ion pouch cells and cylinder cell in R&D laboratories and production line, It's easy operation.
Parameters:
|
Model |
AS-UV-40A |
|
Source voltage |
AC220V, 50HZ, can be customized |
|
Power |
1200W |
|
Warranty |
One Year limited warranty with lifetime support |
|
Type |
Ultrasonic spot welding machine |
|
Frequency |
40KHZ |
|
Welding time |
0.05-9.99s |
|
Air supply |
0.2-0.8MPa |
|
Welding effect |
Single layer ofcopper foil and Nickel Strip or Nickel-Cu strip welding , belt melt, welding firmly |
|
Welding ability |
1 Materials : Battery anode electrode. (single layer copper foil and single piece Nickel/Ni-Cu strip) 2 Copper foil thickness : 8-15um 3 Nickel/Ni-Cu strip thickness : 0.06-0.12mm 4 Welding mode : according to your requirements 5 Welding area : can be customized |
|
Dimension (L*W*H) |
Power box : 400*170*300mm Welding machine : 300*200*270mm |
