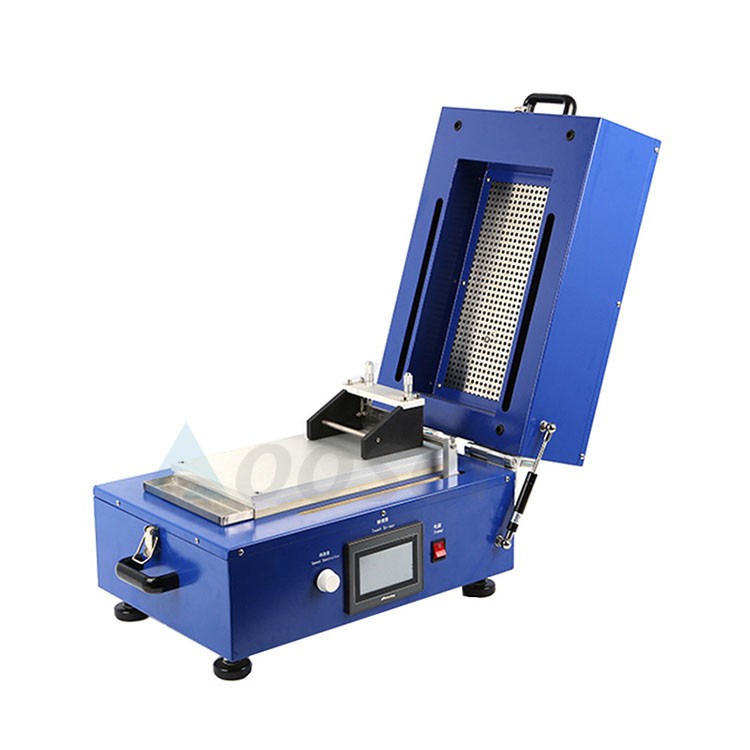

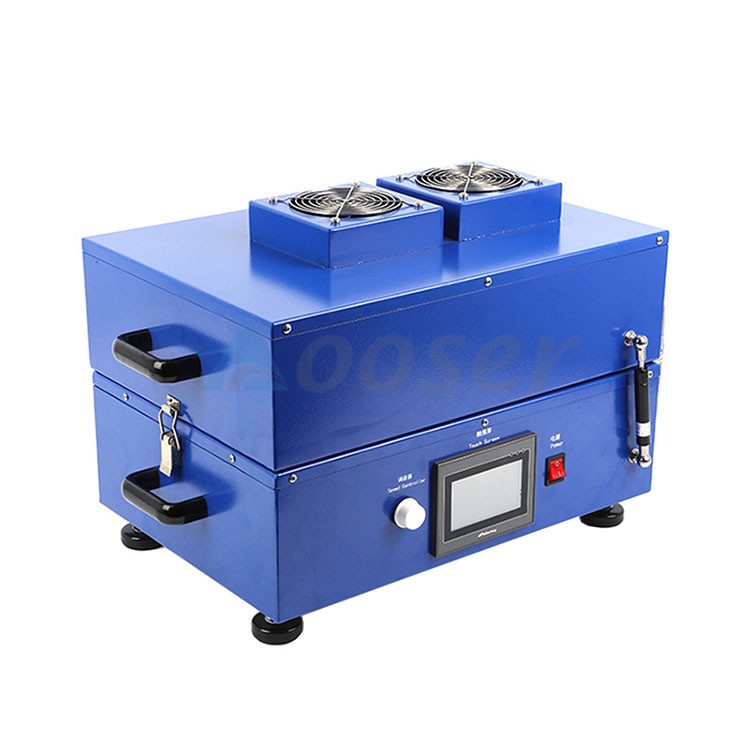

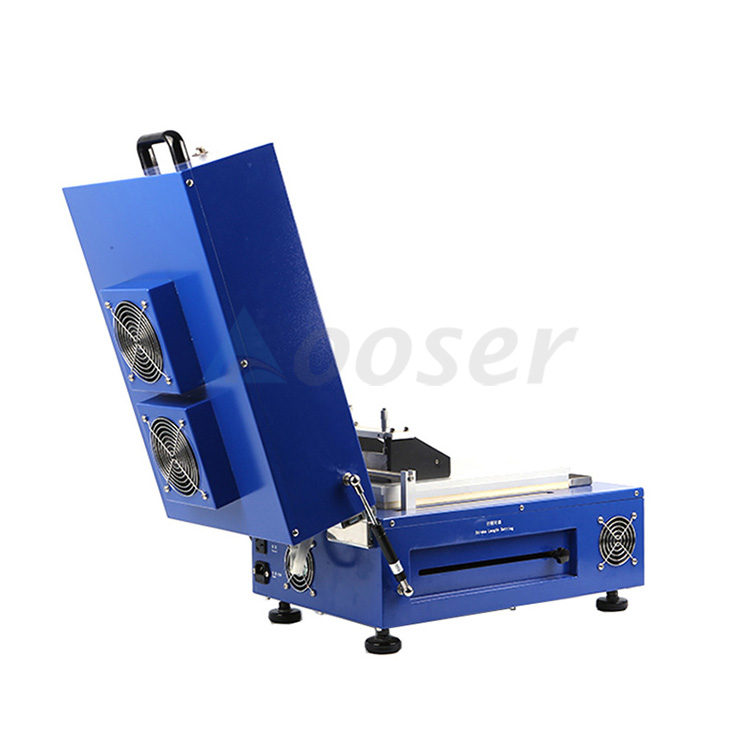

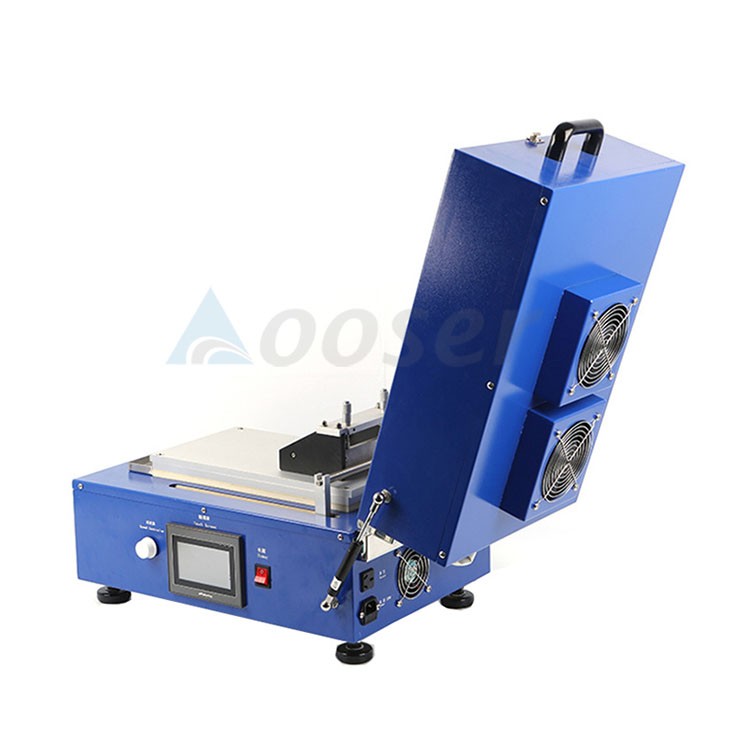

Small Vacuum Tape Casting Machine for Battery Slurry Coating

Film automatic coater for battery electrode coating

Description:

This tape casting machine is a touch-screen film coater which widely used in all kinds of high- temperature film coating research, like ceramic films, crystal films, battery electrode sheet, and special namo-films, and can adapt to the technology development of high temperature film coating in future.

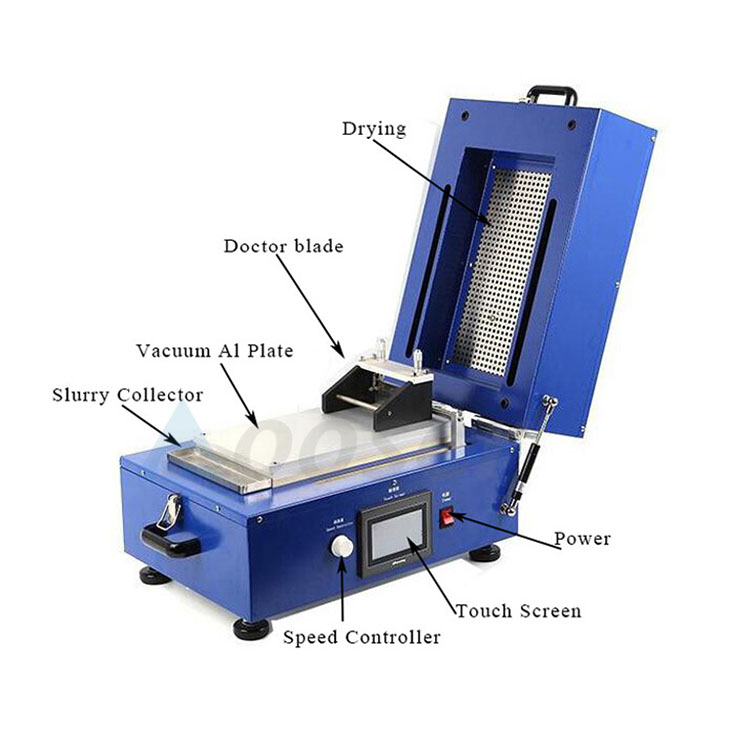

Features:
1. Touch-screen ,easy operation .
2. Temperature controlled heating system is digital displayed, max working temperature is 200℃.
3. Timer is digital displayed; the heating time can be set freely.
4. Coating speed can be regulated at a range of 0~200mm/s.
5. Vacuum aluminum plate used to place and take off the substrate quickly.
6. Stroke can be regulated by touch screen at a range of 10~250mm.
7. Coating thickness can be regulated, the accuracy is 0.01mm.
8. Small dimension saves space.
9. Nice appearance, solid geometry design makes well- formed shape.

Technical parameters:
