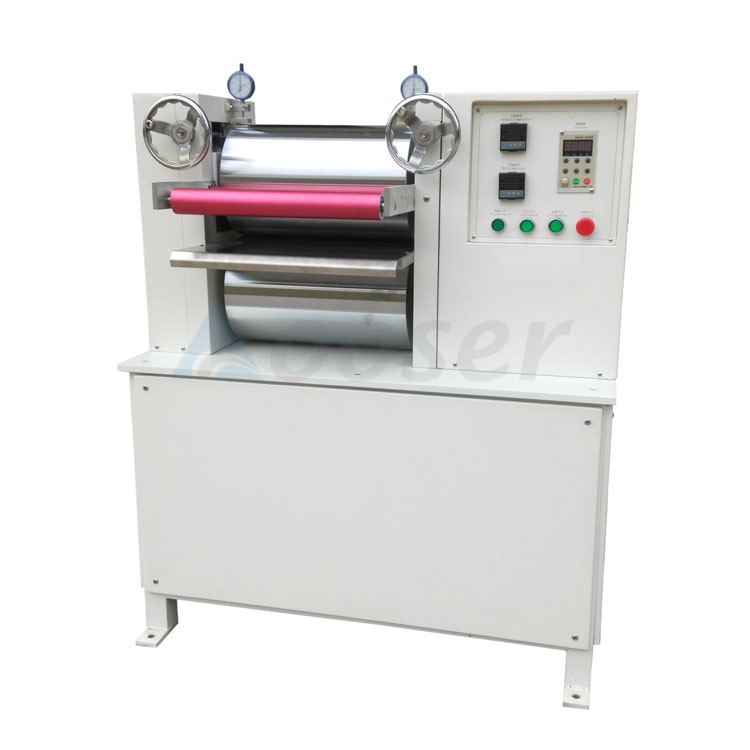

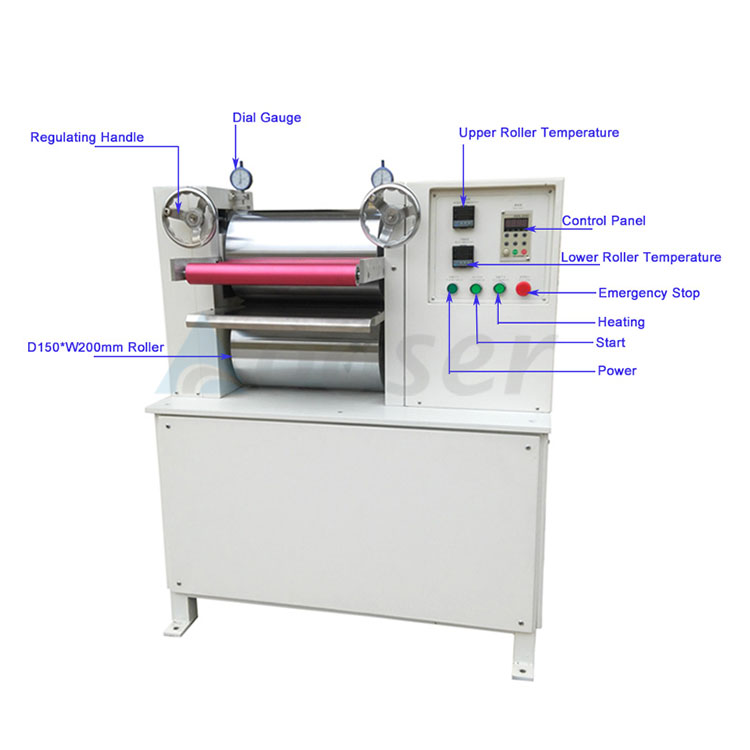

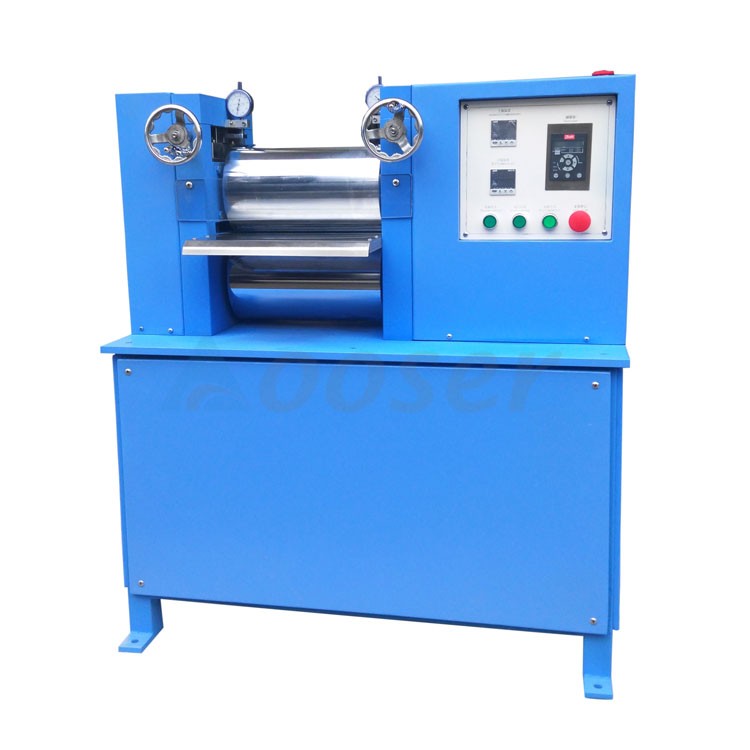

Aooser battery electrode rolling press Machine is a compact precision hot battery electrode sheet calendering machine for lab and polit production line. It has two rollers of 150mm diameter and 200mm width with dual dial gauge.
Hot Rolling Press Machine For Battery Electrode Calendering
Description:
AS-RDG-H150200 Roll Press Machine is a compact precision hot battery electrode calendering machine for lab and polit production line. It has two rollers of 150mm diameter and 200mm width with dual dial gauge.
This calendering machine is mainly used for small electrodes in the rolling process, suitable for use by universities and enterprises experiment line, make the battery electrode compression molding, increased density.
The width of steel rollers can be customized, the roller can be heated up to 120C and customized up to 200C
Technical parameters:
|
Product name |
Hot RollerPress Battery Electrode Calendering Machine |
|
Model |
AS-RDG-H150200 |
|
Working Voltage |
220V AC 50Hz, 110V optional |
|
Power |
5000W (when heating) |
|
Roller material |
9CR2MO |
|
Roller Dimension |
150mm(Dia.) x 200mm(W) |
|
Roller surface hardness |
>HRC62 |
|
Rolling press accuracy |
≤±0.05 |
|
Roller surface finish |
0.8 |
|
Roller surface hardening depth |
5 mm |
|
Rolling press thickness |
0-3 mm adjusted with Dial gauge |
|
Rolling press width |
Max 200mm, Customized |
|
Rolling press speed |
0-6.5 m/min adjustable |
|
Heating temperature |
RT-120℃, can customized to 200C |
|
Warranty |
One years limited manufacture warranty with lifetime support |
|
Packing |
Standard export wooden case |
Application Notes:
1. This roller is specially designed for battery making, its advantages as affordable, compact and precise.
2. Must use acetone to clean and dry rollers surfaces after each use to avoid rusting
3. Coated Rust-proof oil if machine were to be unused for a long period of time
4. The minimum thickness of the rolled sheet should depend on the physical property of the materials.
