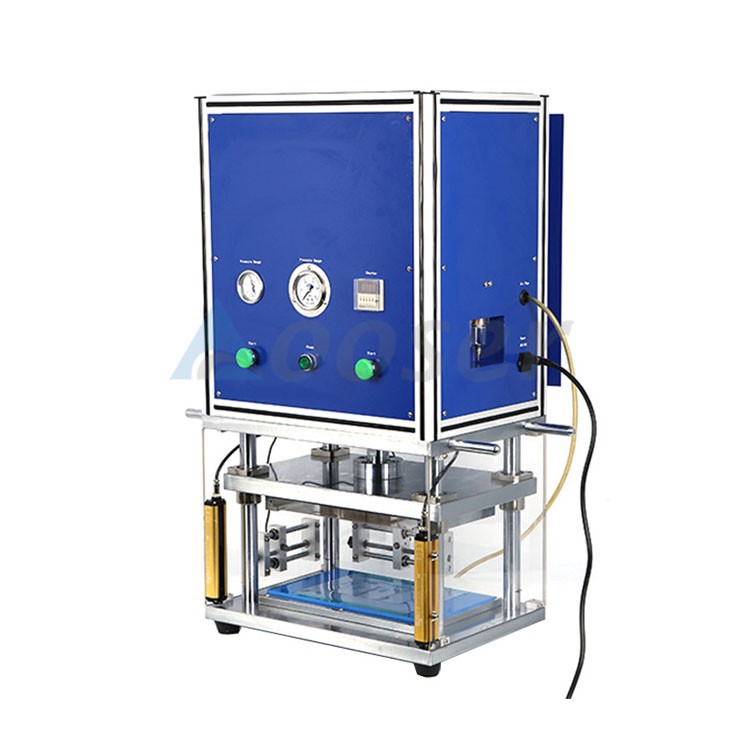

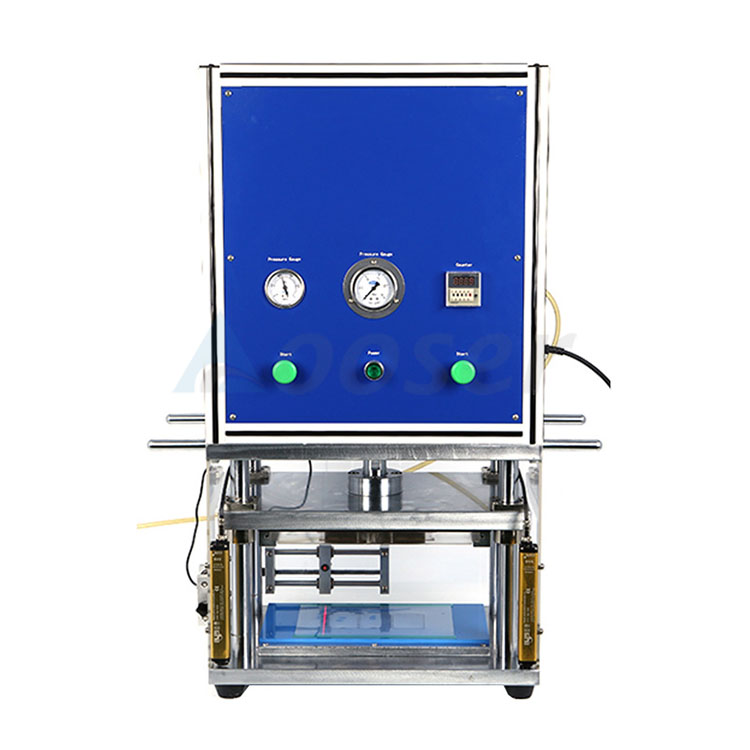

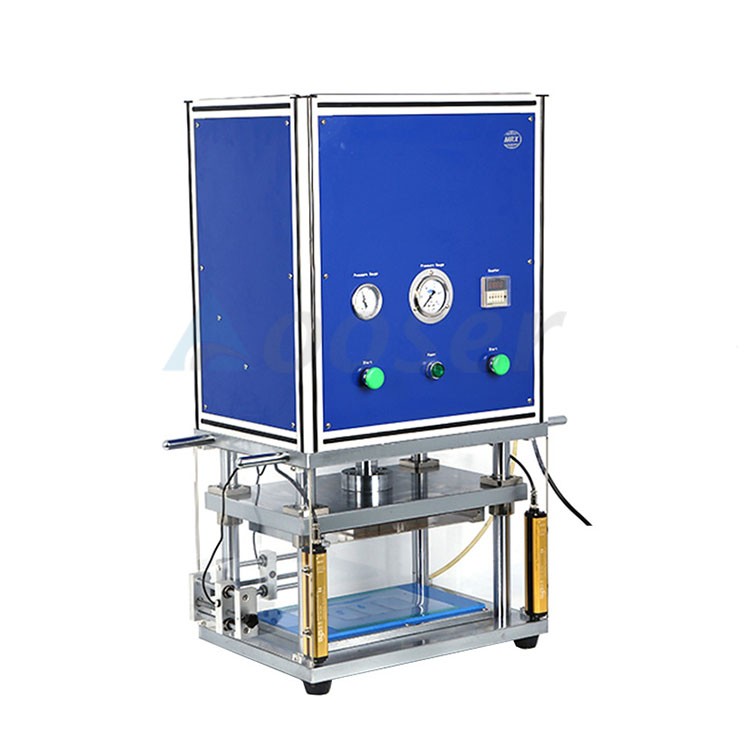

Pouch Cell Battery Electrode Sheet Die Cutting Machine

Pouch Cell Battery Electrode Sheet Die Cutting Machine

Model: AS-MQJ-200
Work voltage: AC 220V 50HZ, 110V is optional
Power: 100 W
Max cutter die size: 300mm(L) * 200mm(W)
Air Cylinder: 3 tons Max. pressure
Cutting stroke: 250 mm

Pouch Cell Battery Electrode Sheet Die Cutting Machine

Description:

The battery electrode sheet die cutter machine is mainly used for pouch cell electrode sheet cuting before stacking process. It is a necessary equipment in the production line of pouch cell to produce specific shapes of cathode electrode and anode electrode with current battery tabs.

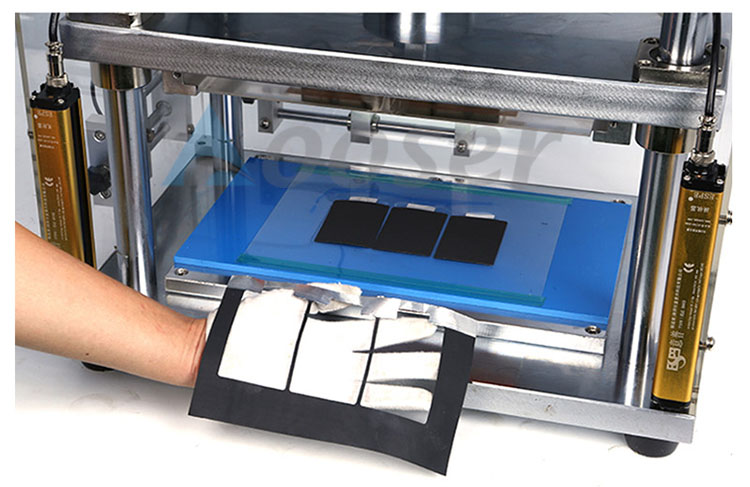

It adopts Safety curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front. High speed, high accuracy, long lifetime to make ready electrode without burr, to get a good consistency.

Specifications:

Product name	Battery Electrode Sheet Die Cutter Machine
Model	AS-MQJ-200
Work voltage	AC 220V 50HZ, 110V is optional
Power	100 W
Application	Pouch cell lab research or battery pilot production line
Max cutter die size	300mm(L) * 200mm(W)
Die Set Dimensions	One set of standard electrode die is included.within the dimensions: 200mm(L) *300mm(W) Customized size die is available upon request
Safety Protection	Built in Safety Curtain to protect against hand injures during electrode feeding Double start press button
Cutting Accuracy	±0.1mm
Air Cylinder	3 tons Max. pressure
Tensile Cylinder	0.15 tons pressure
Cutting stroke	250 mm
Feeding	Manually
Production Yield	800 - 2000 pieces of electrodes per hour
Air Pressure	0.5-0.8 Mpa
Dimension (LWH)	650mmx550mmx900mm
Net Weight	160 Kg
Warranty	One year limited warranty with lifetime online support
