Small Vacuum Pre-Sealing Machine for Lab Pouch Cell Case

Small Vacuum Pre-Sealing Machine for Lab Pouch Cell Case

Product Description:

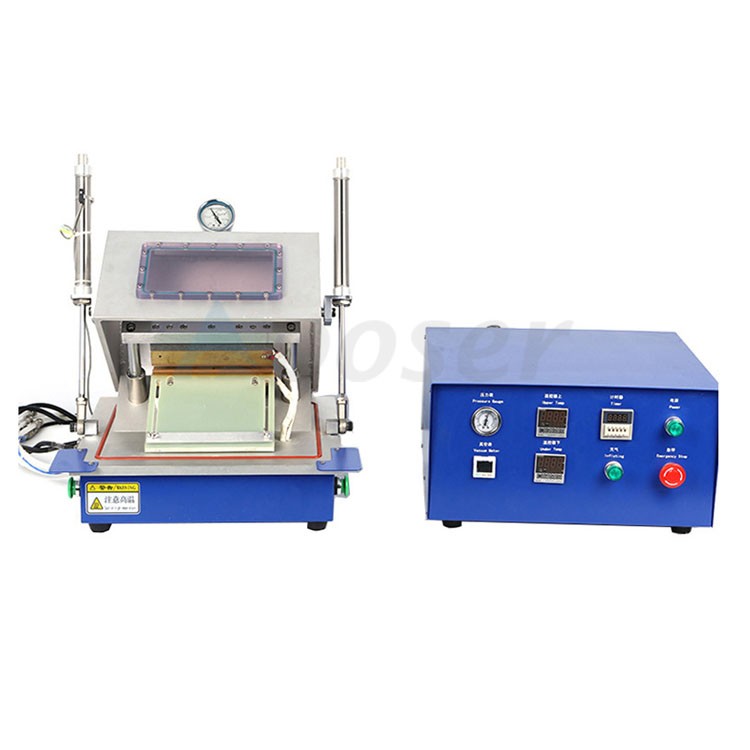

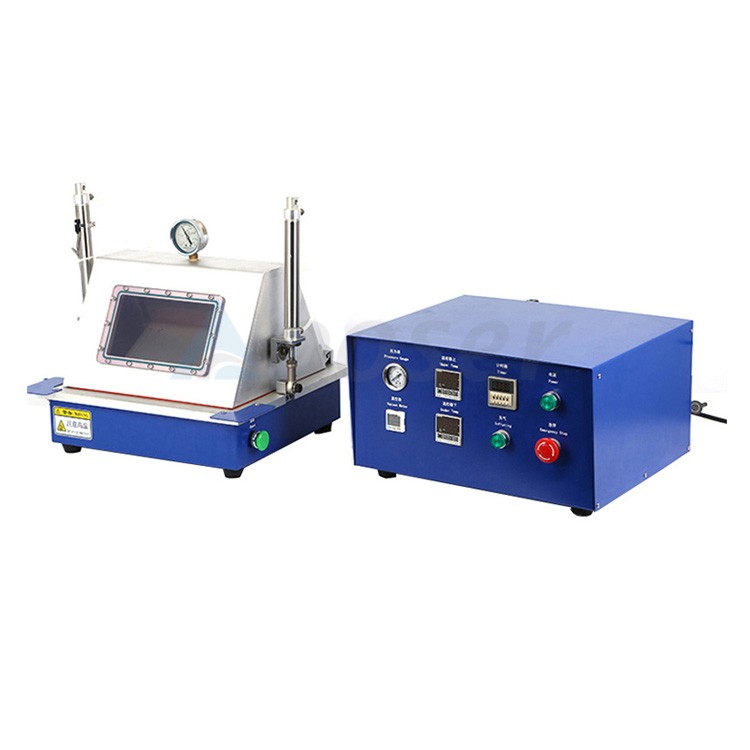

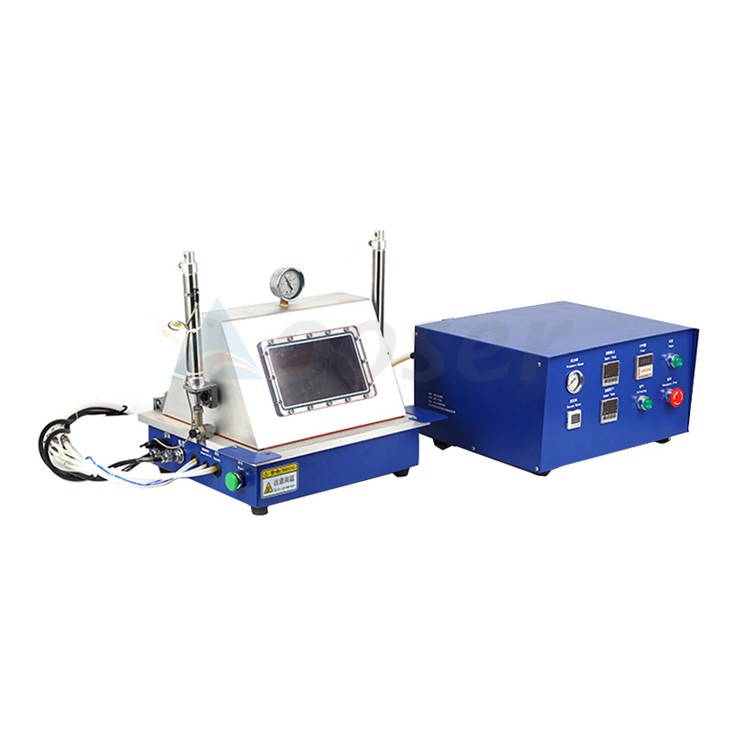

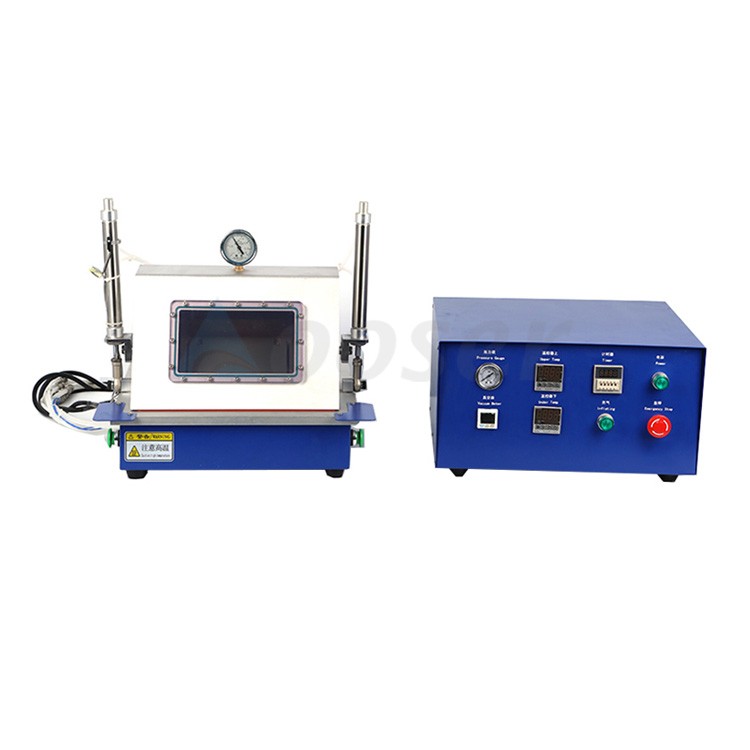

The vacuum pre-sealing machine is mainly used for pouch cell casehot sealing after electrolyte diffusion. This equipment accurate controls the main vacuum pumping box and pneumatic heat sealing components to automatically complete the vacuum heat sealing of laminated- aluminum battery case.

Product Features :

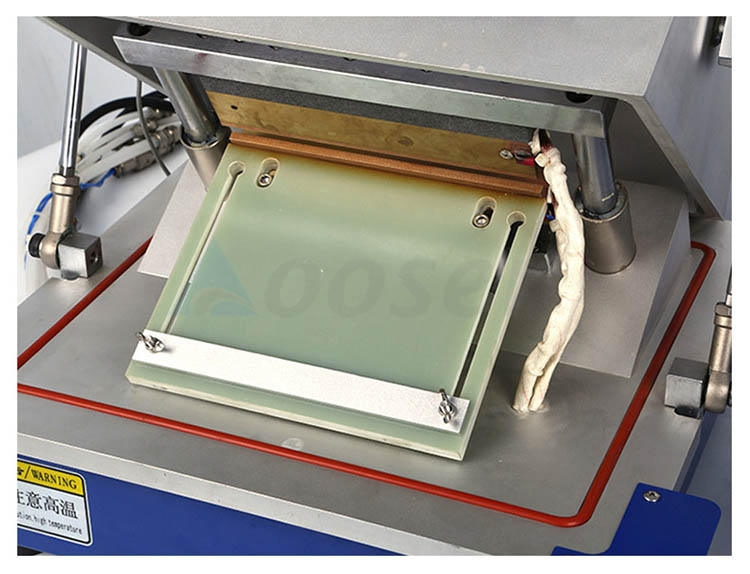

1. The sealing head is made of copper material so that the heat transfer effect is good to save power consumption and improve work efficiency and more energy-saving than other similar products.
2. Pressure of upper and lower sealing heads can be regulated by pressure regulating valve to meet different technological parameter demands.
3. The lower and upper sealing heads are driven by cylinder through two linear-guide bushes that makes them move up and down flexibly and ensures the parallelism demand after sealed by right guidance.
4. Through perspective window to observe the changes inside the chamber during work.
5. The cover chamber is driven by cylinder, guided by rotating guide bush to move up and down flexibly, accurate guide can ensure the sealing demand.
6. This equipment is applicable for different sizes of batteries and easy to regulate.
7. Split design of main machine and control box makes the equipment can work either in the glove box or the production line.

Technical Parameters:
