Model: AS-BT-2681A
Input Voltage: AC 220v,50HZ (110V optional)
Test voltage: 10V,25V,100V,250V,500V
Voltage accuracy: 2%
Resistance measurement range:10^5Ω-10^13Ω.
Dimension(L*W*H): 380mm*140mm*320mm
Weight: 7kg

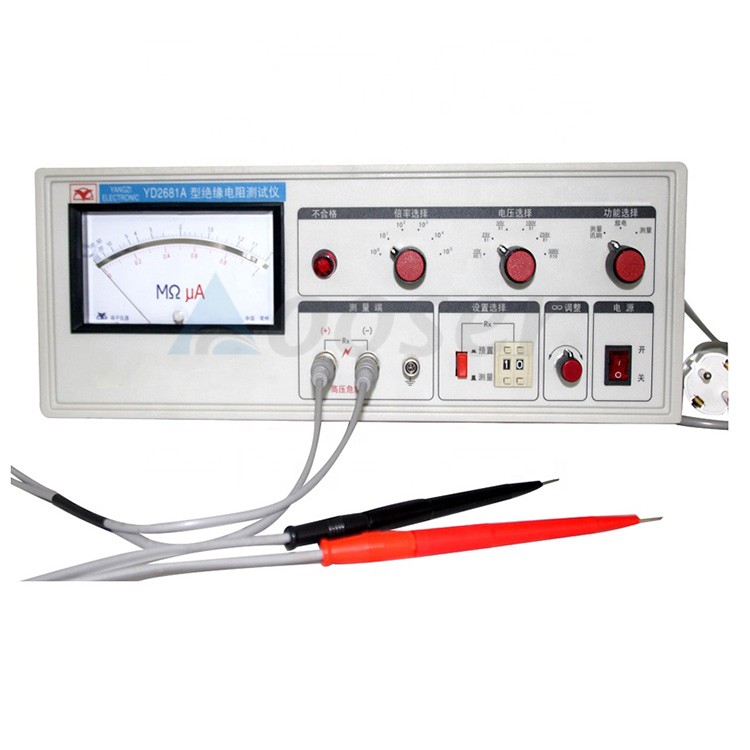

Universal Insulation Resistance Tester for Battery and Supercpcitor Short-circut Testing
Features:
Simple operation,direct display
Fast measurement speed,wide resistance measurement range
Fail alarm with sound and light
General purpose insulation resistance tester
Specification:
|
Model |
AS-BT-2681A Battery Short Circuit Tester |
|
InputVoltage |
AC 220v,50HZ (110V optional) |
|
Test voltage |
10V,25V,100V,250V,500V |
|
Voltage accuracy |
2% |
|
Resistance measurement range |
10^5Ω-10^13Ω |
|
Display method |
Mirror head indicator |
|
Rangesetting |
Manual |
|
Measurement Speed |
Resistive element≤0.5 seconds;capacitive element 0.5 seconds-10 seconds |
|
Sorting function |
Qualified,unqualified sound |
|
Dimension(L*W*H) |
380mm*140mm*320mm |
|
Weight |
7kg |
