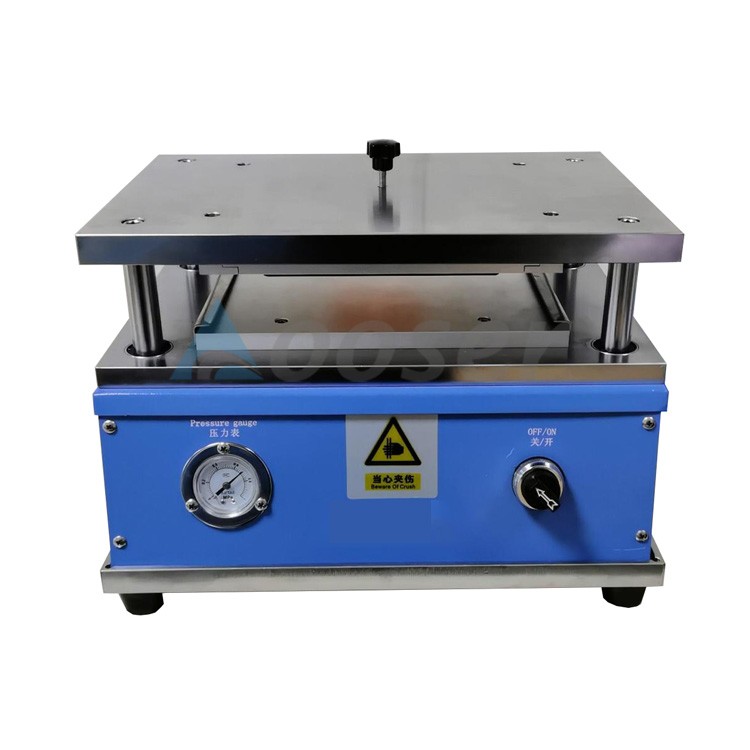

Lab Compact Pneumatic Pouch Cell Electrode Die Cutter Cutting Machine

Model: AS-MQJ-80

Drive: Pneumatic

Max cutting size: 85mmx65mm

Max pressure: 1000 Kg

Weight: 40 Kg

Lab Compact Pneumatic Pouch Cell Electrode Die Cutting Machine

Introduction：

AOOSER pneumatic die cutter is suitable for die-cutting of positive and negative electrodes of batteries, punching sheet type electrode by pneumatic method and can be placed in the glove box.

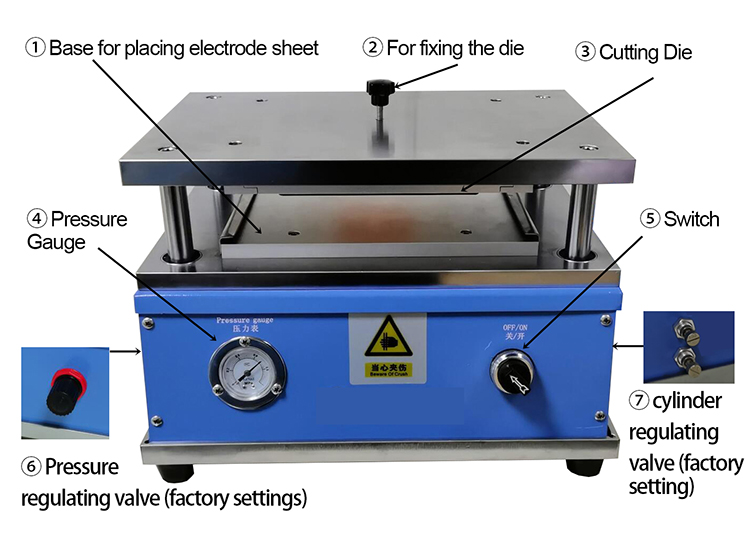

Main features：

Sheet type electrode feeding, knife template for die cutting, can be placed in the glove box

Easy to replace the cutter

Long die life, normal use ≥30,000 times

No quality defects such as burrs, powder drop, and indentation

Adopts four pillar structures, up and down slip smooth and high precision

Exquisite appearance, easy to operate, safe and reliable, small size

Specifications：

Product name	Compact Pouch Cell Die Cutter AS-MQJ-80
Vertical burr	≤12μm
Horizontal burr	≤20μm
Max punching size	L85*W65mm(can be customized according to requirements)
Punching accuracy	±0.1mm
Punching pressure	Max. 1T (0.6MPa compressed air) Punching the battery electrode recommended pressure 500Kg
WorkingStroke	35mm
Compressed air	0.5MPa.If placed in a glove box, the gas used is the same as that used in the glove box.
Dimension(LWH)	350230300mm
350230300mm	40kg
Warranty	One year limited warranty and lifetime support
