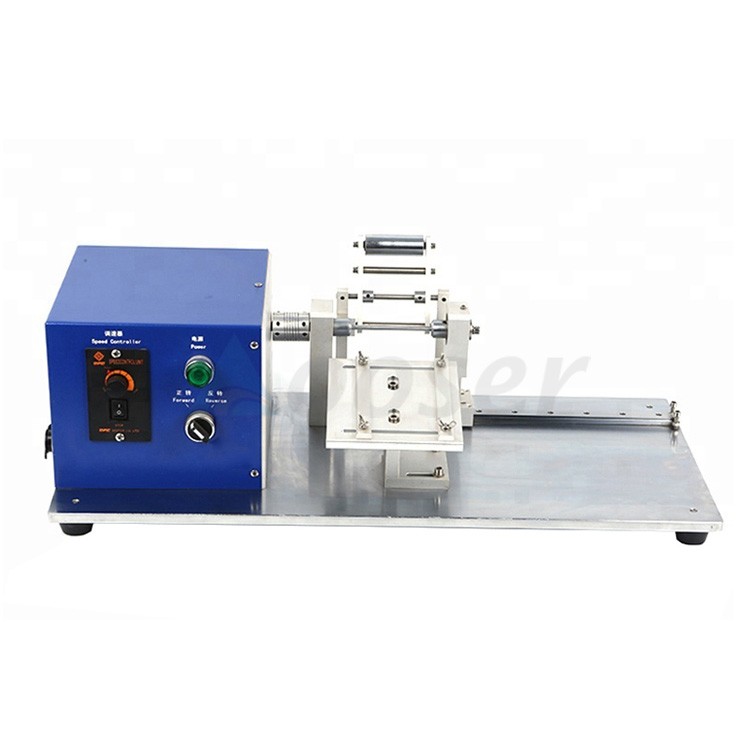

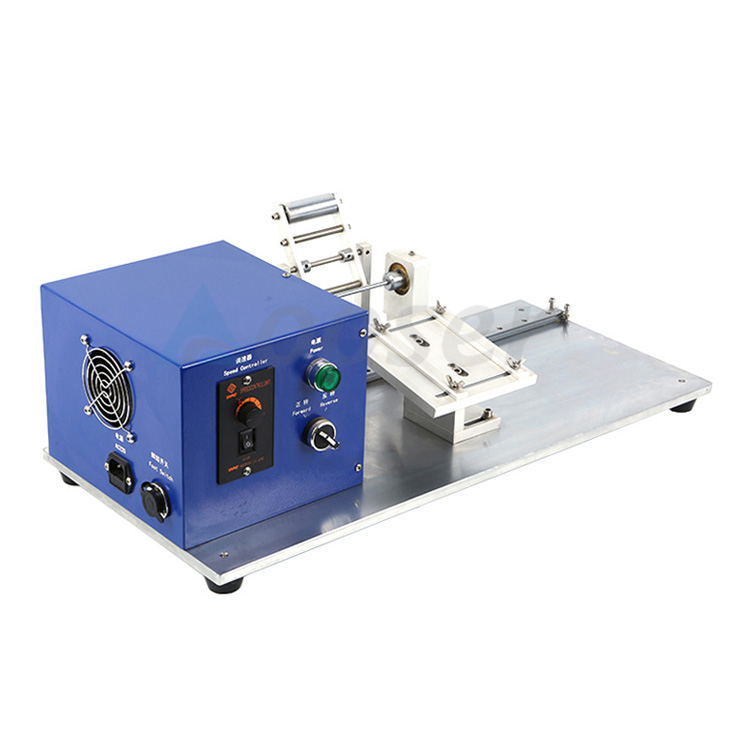

Lab Cylindrical Battery Winding Machine for 18650 Cylinder Cell

Model

Semi-Automatic Winding Machine  AS-JR-90C

Input Voltage

AC 220V 50Hz, 110V optional

Power

40 W

Warranty

One Year limited warranty with lifetime support

Winding Speed

0 - 170 RPM Adjustable

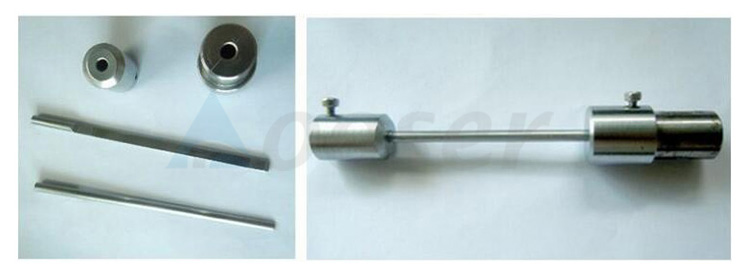

Winding blade

The winding width depends on the width of the winding blade

Customized square winding blade according to battery model

Winding Mode

Switchable between clockwise and counterclockwise

Output

70-100EA/h, according to battery size and maunal

Product Dimensions

(L*W*H)

360mmx310mmx280mm

Net weight

About 20kg (45 lbs)

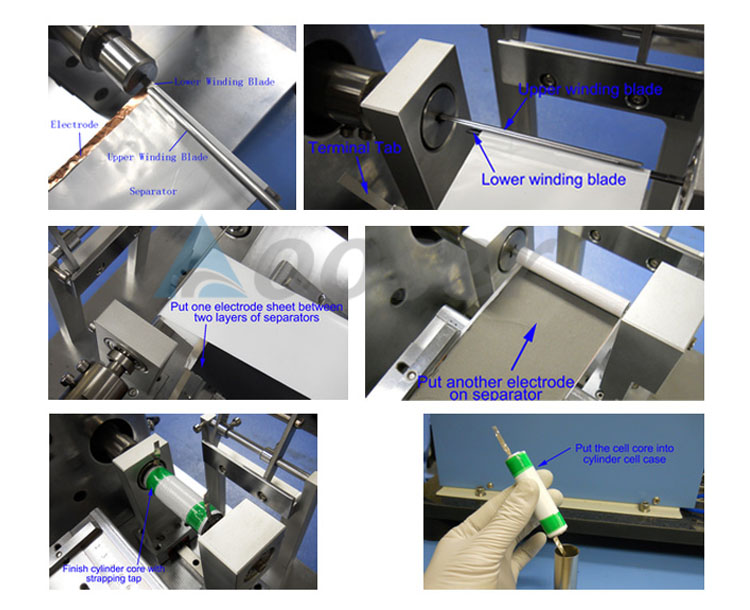

Application Notes

This machine can be used for prismatic battery with square winding shaft,

and you can also choose the round winding shaft for cylinder cell core winding,

We will supply with the suitable winding accessories according to your battery model
