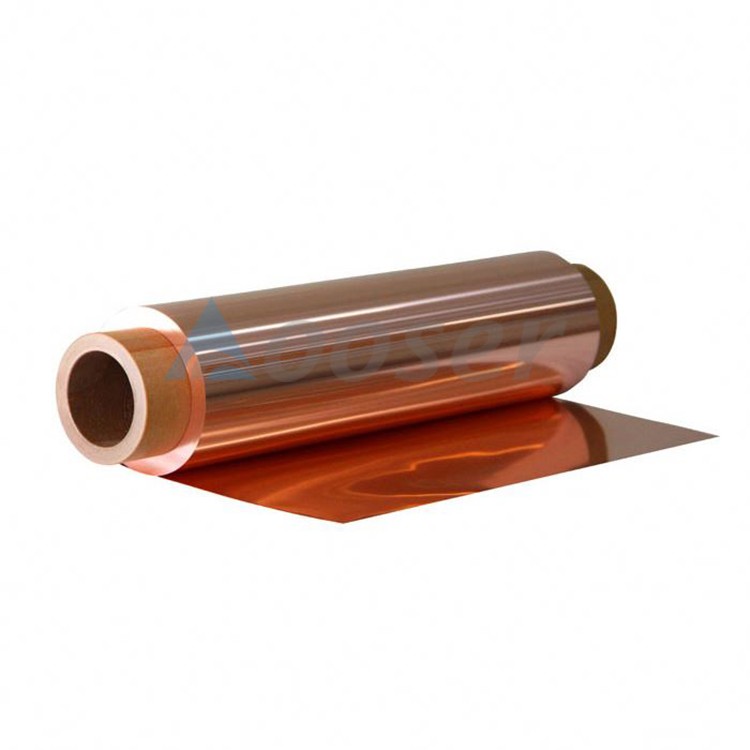

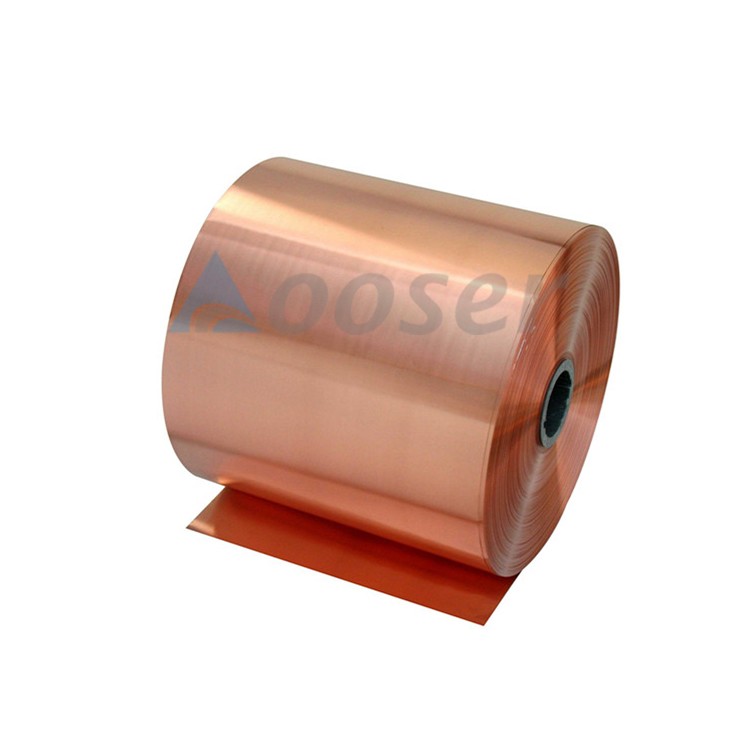

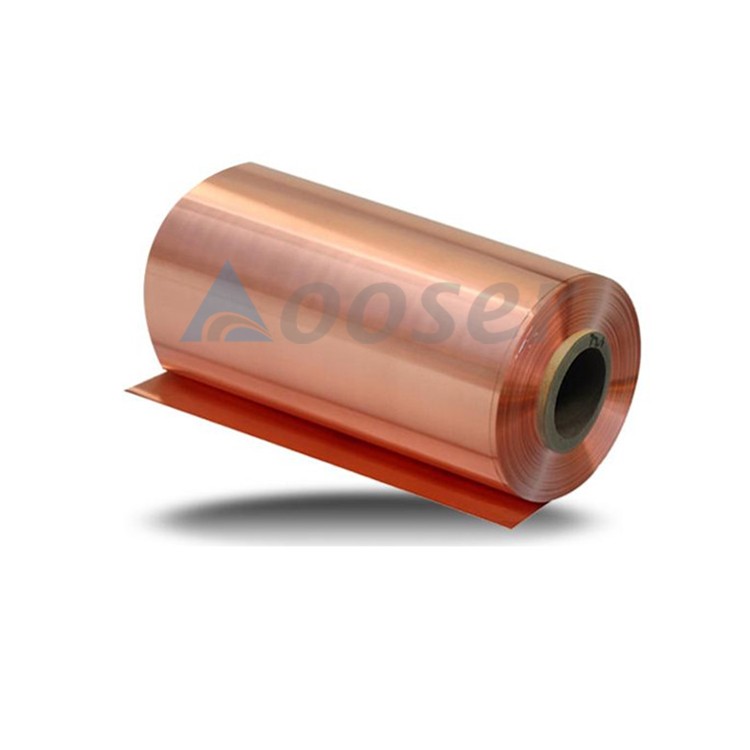

High Quality Electrolytic Copper Foil used for Li Ion Battery Anode Current Collector.
Lab Electrolytic Grade Cu Copper Foil for Li-ion Battery Anode Material
This copper foil is used as a substrate for coating anode materials in Li-Ion battery research.
Parameters:
Item |
L-Cu-09 |
L-Cu-10 |
L-Cu-12 |
|
Width (mm) |
customized |
|||
Thickness (um) |
9 |
10 |
12 |
|
Areal density (g/m2) |
85-90 |
95-100 |
105-110 |
|
Purity(%) More than 99.9% |
Cu ≥99.9% |
|||
Fe < 0.0010% |
||||
Bi < 0.00020% |
||||
Pb < 0.0005% |
||||
Roller core inner diameter |
76mm |
|||
Width |
200mm |
|||
Tensile strength (MPa) |
≥294 |
≥300 |
≥305 |
|
Normal elongation(%) |
2.5 |
2.7 |
3.0 |
|
High temperature Tensile strength180℃(MPa) |
≥147 |
≥150 |
≥153 |
|
High temperature elongation180℃(%) |
2 |
2 |
2.5 |
|
Anti oxidization(180℃ Heating 1h) |
No oxidation of points on the surface,The color does not change,Copper foil without fracture |
|||
Surface roughness(um)Rz |
Drum side(um) |
Less than 0.3 |
Less than 0.3 |
Less than 0.35 |
Matte side(um) |
Less than 3.0 |
Less than 3.5 |
Less than 4.0 |
|
Surface tension(dyne/cm) |
Drum side |
62 |
65 |
68 |
Matte side |
62 |
65 |
68 |
|
Coating performance |
Cu foil with uniform tension on both sides, slurry coating uniformity |
