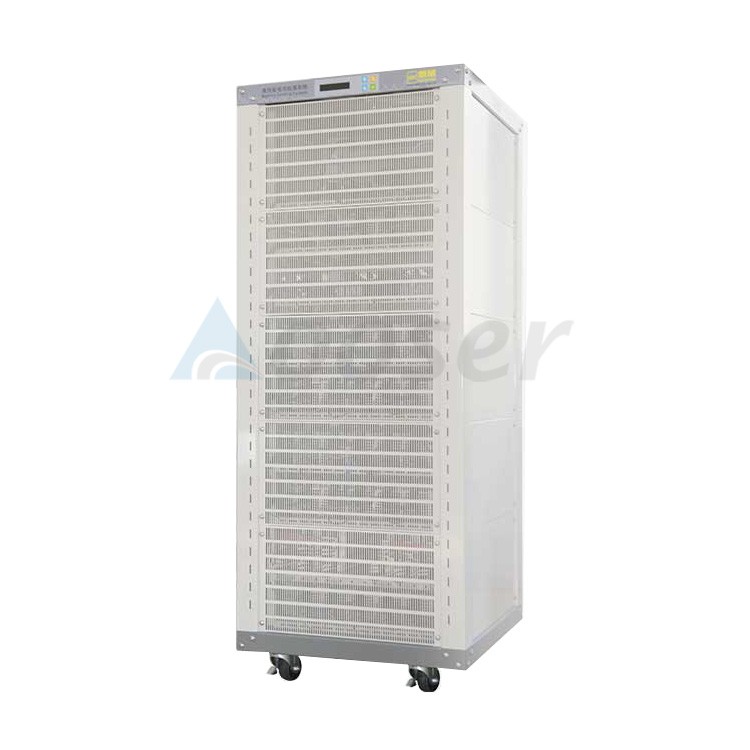

50V150A Battery Tester for Battery Pack Analyzing

Description

Product Specification

AC Input

AC 380V±10% 50Hz

Power

9873

W

Resolution

AD: 16bit; DA: 16bit

Impedance Input

≥1MΩ

Voltage

Measuring Range

250mV~50V

Discharge Min Voltage

3V

Accuracy

± 0.1%  of  FS

Stability

± 0.1%  of  FS

Current

Range

Charge: 750mA~150A                  Discharge: 750mA~150A

Accuracy

± 0.1%  of  FS

Stability

± 0.1%  of  FS

Power

Output Power Per Channel

7500W

Stability

± 0.2%  of  FS

Time

Rise Time

20ms (10%FS~90%FS)

StepTime

≤ (365*24) hour/step

Time Format 00：00：00：000 (h:min:s:ms)

Data Acquisition

Intervals

Time interval  Δt:（100ms~60000s）

Voltage interval  ΔU:（100mV~50V）

Current interval  ΔI:（300mA~150A）

Frequency

10Hz

Charge

Modes of Operation

CCC, CVC, CC & CVC, CPC

End Conditions

Voltage, Current, Test  Time, Capacity

Discharge

Modes of Operation

CCD, CPD, CRD

End Conditions

Voltage, Current, Test Time, Capacity

Cycle

Cycles

65535

Steps

254

Nested Function

Max three levels of loops

Protective Function

● Power-off data protection

● Off-line Operating

●User-defined safety (upper and lower) tolerance of current, voltage and delay time

Reverse-connecting protection

Channel Features

Independent pairs of closed loop for constant current source and constant voltage source

Channels

Independent control

Detection and Sampling

4-wire Connecting

Noise Density

<85dB

Data Management

MYSQL Database

Communication Means

TCP/IP Protocol

Exports Formats

EXCEL, TXT, Graph

Communication Interface

Ethernet Port

Number of Channels Per Cabinet

1

Operating  Environment

Description

Product Specification

Operating Temperature

0℃~40℃

Storage Temperature

-10℃~50℃

Operating Humidity

≤70% RH

Storage Humidity

≤80% RH

Description

Product Specification

Battery Holder

Universal Holder

Dimensions（W*D*H）(mm)

30U，600*600*1520
