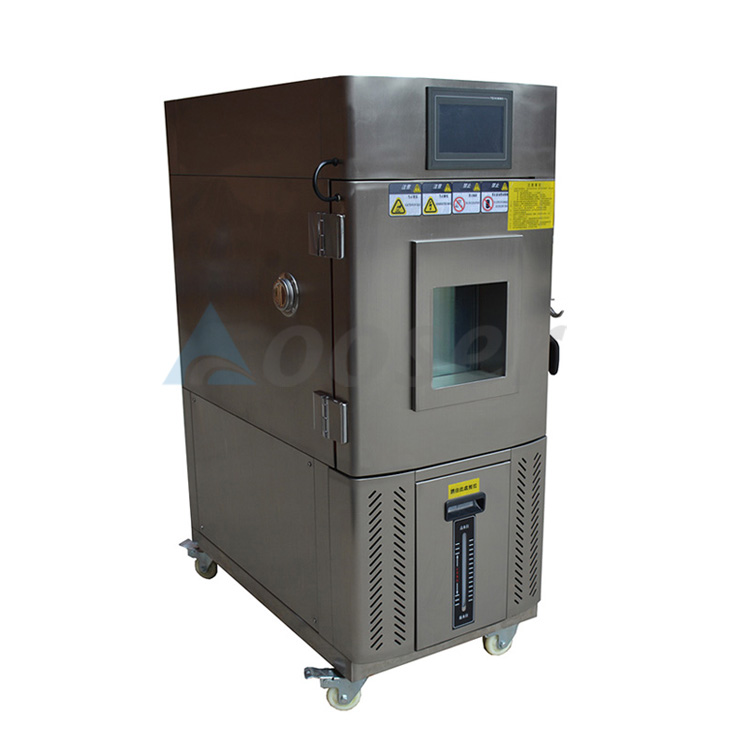

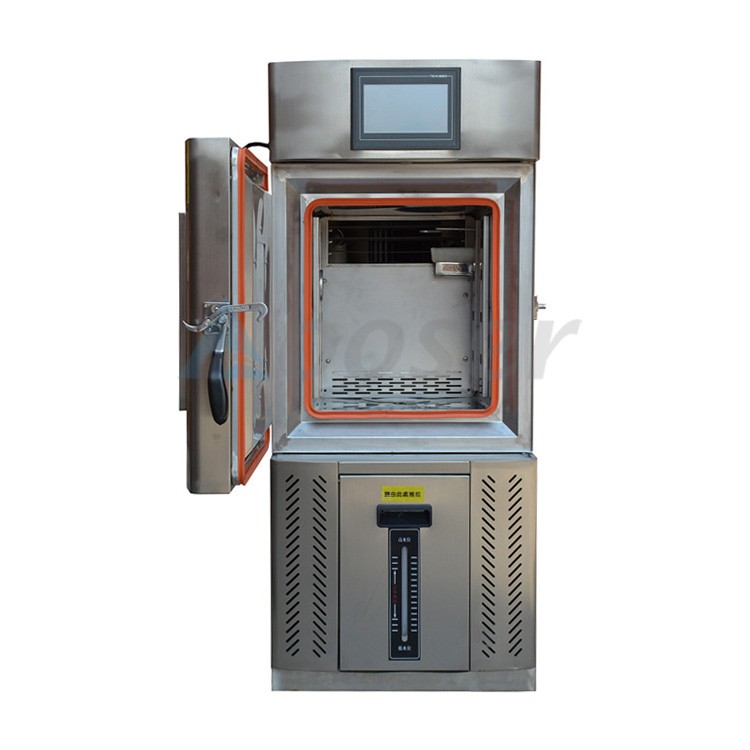

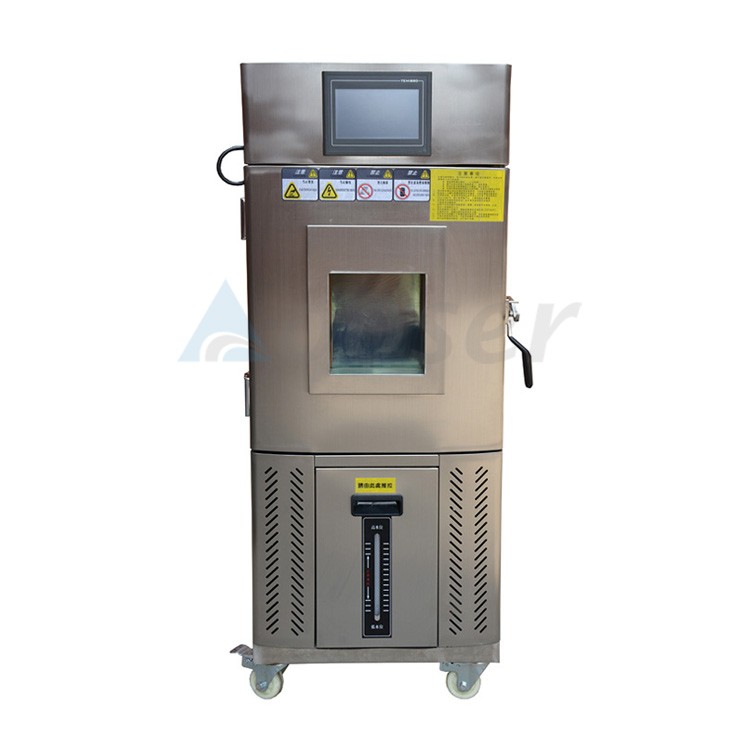

Programable High Low Temperature and Humidity Test Chamber for Lab

Model

Constant Temperature and Humidity Test Chamber AS-BWX-42L

AC Source

AC 220V±10%50HZ (custom voltage available)

Power

3.5KW

Warranty

One year warranty with life time technical support

Temperature range

-20℃ to 150℃

Temperature rise

From 20℃ to -20℃, about 40 minutes

Temperature fall

From 20℃ to 100℃, about 40 minutes

Temperature fluctuation

Less than±0.5℃

Temperature uniformity

Less than±1℃

Temperaturedeviation

Less than±2℃

Humidity range

20% -98%R.H (AT+25℃～+85℃)

Humidity deviation

+2/-3% R.H (above 75%R.H ) ;±5% R.H (under 75%R.H )

Wind speed

From1.7m/s to2.5m/s

The parameter mentioned above is measured under temperature≤25℃, normal pressure, no-load and no-load conditions, 1/6 space from the inner wall of the cabinet.

Inner box size(L*W*H)

350mm*300mm*400mm

Dimension(L*W*H)

550mm*870mm*1400mm

Cable hole

One 50mm diameter hole on the side of chamber(can be customized)

Workshop material

SUS304 mirror stainless steel plate

Box shell material

SUS304 stainless steel

Box door

A multi-layer insulating glass observation window is installed on the gate, and a heating anti-frost device is provided.

Lighting

A (AC12V) 20W halogen lamp is installed on the chamber door.

Safety device

With over temperature protection, grounding etc

Shelf

Two-layer adjustable height stainless steel strip shelves

Safety protection device

Safe and reliable grounding device;

Studio over temperature protection;

Heater short circuit protection;

Humidifier short circuit protection;

Fan overload protection;

Compressor overpressure protection;

Compressor overload protection;

Water shortage protection;

Leakage Protection.
