Lithium Battery Cathode Raw Materials LiNiMnCoO2 NCM811 NMC811 For Lab

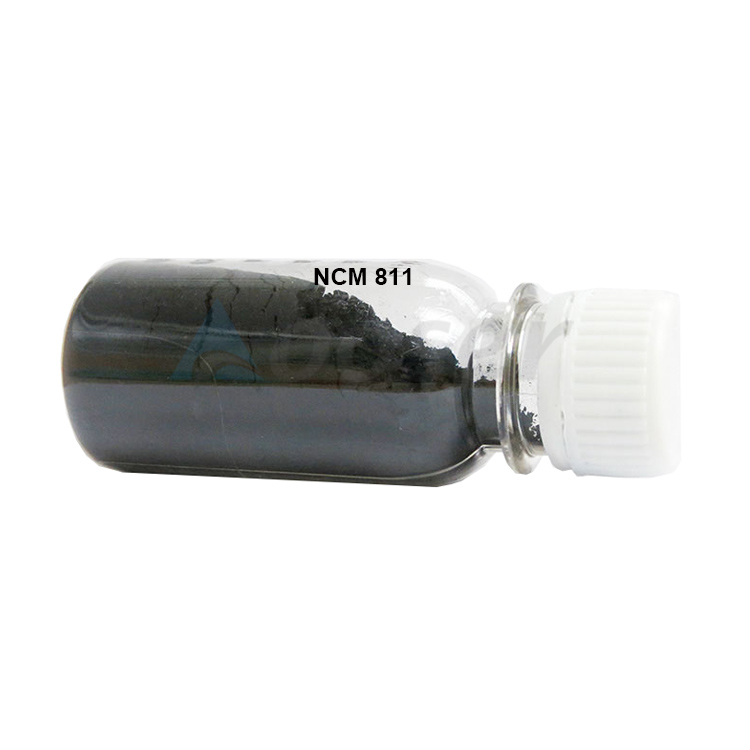

NMC 811 is a black powder for lithium ion battery cathode raw material. Full chemical format is LiNiMnCoO2, NMC 811 means that Nickel:Manganese:Cobalt=8:1:1.

Lithium ion Battery Cathode Raw Materials LiNiMnCoO2 NCM811 NMC811 Black Powder for Lab

Description:

NMC 811 is a black powder for lithium ion battery cathode raw material. Full chemical format is LiNiMnCoO2, NMC 811 means that Nickel:Manganese:Cobalt=8:1:1.

The lithium nickel cobalt manganese battery is safer than lithium cobalt oxide battery. The finished lithium battery mainly used for compact electric tool or equipment. High nickel type NMC material has larger capacity of battery.

Parameters:

Test item		Unit	Standard	Typical

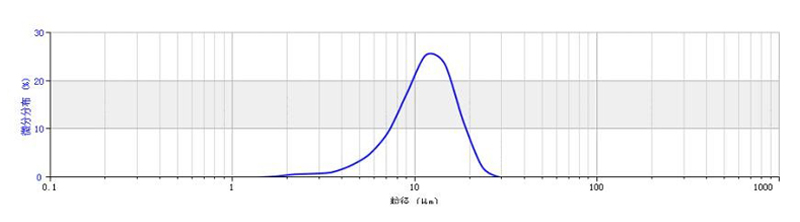

Particle size	D10	um	＞5.0	5.2
	D50		10-12	11.75
	D90		＜25	23.46
	Dmax		＜40	37.09
SSA		m2/g	＜0.4	0.33
Tap density		g/cm3	＞2.25	2.3
Max Compact Density		g/cm3	3.50±0.20	3.5
PH Value			＜12.10	12.08
Moisture		Wt%	＜0.04	0.02
Li		Wt%	7.40±0.20	7.4
Ni		Wt%	47.50±1.50	47.67
Co		Wt%	6.60±0.60	6.62
Mn		Wt%	5.50±0.60	5.57
Li+		Wt%	＜0.28	0.26
Fe		ppm	＜40	16
Cu		ppm	＜40	8
Na		ppm	＜200	130
Ca		ppm	＜50	20
Mg		ppm	＜100	55
Magnetic impurity		ppb	＜50	15

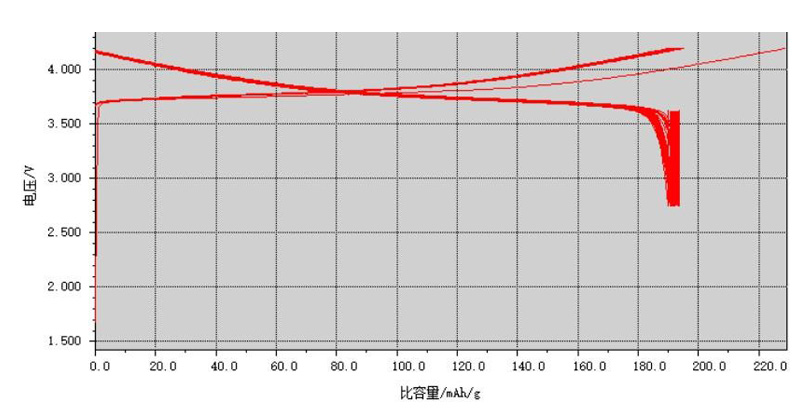

Halfcelldischarge capacity		mAh/g	＞190	195
Halfcelldischarge efficiency		%	＞85	87
