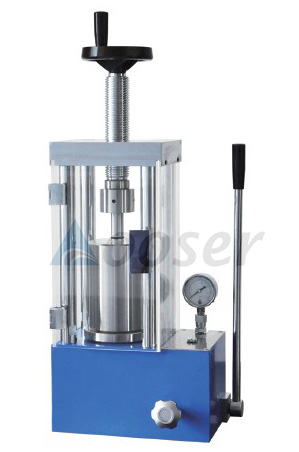

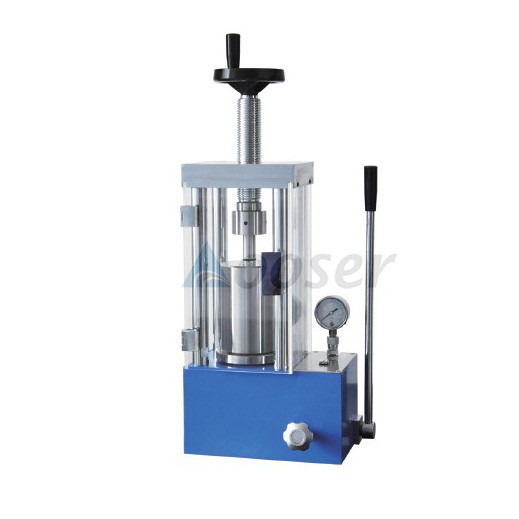

Lithium Battery Isostatic Press Machine PC-12J to PC-60J 300MPa Manual Lab Press

Product Name: Isostatic Press Machine

Brand Name:AS-PC-12J~60J

Product Origin:China

Product description:Lithium battery isostatic pressing machine, specially designed for lithium battery production. It uses the principle of isostatic pressure to pressure the cell evenly in all directions, so that the internal structure is tight, and the electrode and the active material fit better.

Product Description

The lithium battery isostatic press machine is specifically designed for lithium battery production. Utilizing the isostatic pressing principle, it ensures uniform pressure application on the battery cell in all directions, resulting in a compact internal structure and enhanced adhesion between electrodes and active materials. This machine effectively improves the compaction density of battery cells, optimizes battery performance, reduces internal resistance, and increases battery capacity and cycle life. It is a critical equipment in lithium battery manufacturing.

Product Features

① Durable pure aluminum alloy handwheel;
② Ergonomically designed lever for effortless operation;
③ Chrome-plated oil cylinder with superior sealing and long service life;
④ Intelligent control panel for easy parameter setup and multi-stage programmable settings;

Model	PC-12J	PC-20J	PC-40J	PC-60J
Pressure Range	0-12T (0-17MPa)	0-20T (0-21MPa)	0-40T (0-30MPa)	0-60T (0-34MPa)
Cylinder Diameter	Chrome-plated Φ95mm	Chrome-plated Φ95mm	Chrome-plated Φ130mm	Chrome-plated Φ150mm
Pressure Gauge	Dual-scale (Force & Pressure)	Dual-scale (Force & Pressure)	Dual-scale (Force & Pressure)	Dual-scale (Force & Pressure)
Max. Cylinder Stroke	40mm (T)	40mm (T)	40mm (T)	50mm (T)
Protective Cover	Acrylic Glass	Acrylic Glass	Acrylic Glass	Acrylic Glass
Operating Temperature	10℃-40℃	10℃-40℃	10℃-40℃	10℃-40℃
Isostatic Pressure	0-300MPa	0-300MPa	0-300MPa	0-300MPa
Isostatic Chamber	Φ22×70mm	Φ30×150mm	Φ40×150mm	Φ50×150mm
Dimensions (L×W×H)	305×195×530mm	305×195×630mm	355×215×710mm	405×240×720mm
Weight	80kg	95kg	130kg	180kg
