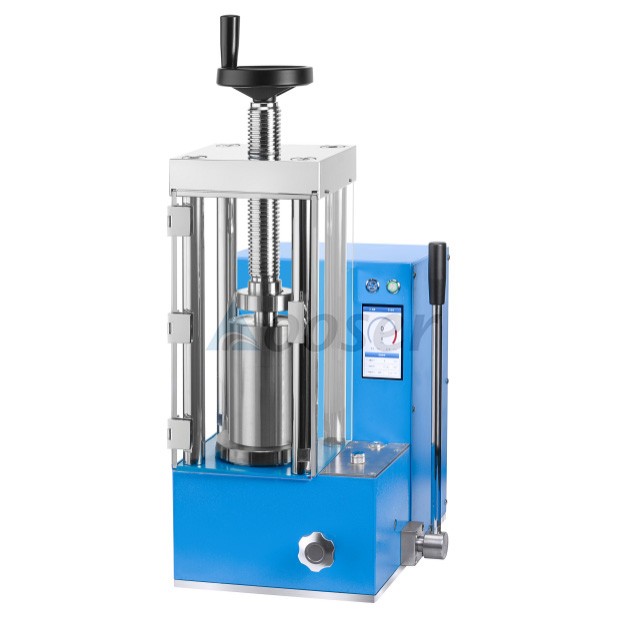

PCD Series Lithium Battery Isostatic Press Machine 0-300MPa Electric-Manual Lab Press

Product Name: Isostatic Press Machine

Brand Name:AS-PCD-12J~60J

Product Origin:China

Product description: Lithium battery isostatic pressing machine, specially designed for lithium battery production. It uses the principle of isostatic pressure to pressure the cell evenly in all directions, so that the internal structure is tight, and the electrode and the active material fit better.

1.Product Description

The lithium battery isostatic press machine is specifically designed for lithium battery production. Utilizing the isostatic pressing principle, it ensures uniform pressure application on the battery cell in all directions, resulting in a compact internal structure and enhanced adhesion between electrodes and active materials. This machine effectively improves the compaction density of battery cells, optimizes battery performance, reduces internal resistance, and increases battery capacity and cycle life. It is a critical equipment in lithium battery manufacturing.

2. Product Features

① Durable solid aluminum alloy handwheel;
② Ergonomically designed lever for effortless operation;
③ Chrome-plated hydraulic cylinder with superior sealing and extended service life;
④ Intelligent control panel for easy parameter setup and multi-stage programmable settings;

3. Technical Specifications

Model	PCD-12J	PCD-20J	PCD-40J	PCD-60J
Pressure Range	0-12T (0-17MPa)	0-20T (0-21MPa)	0-40T (0-30MPa)	0-60T (0-34MPa)
Piston Diameter	Φ95mm (diameter)	Φ95mm (diameter)	Φ130mm (diameter)	Φ150mm (diameter)
Display Accuracy	0.1T	0.1T	0.1T	0.1T
Display Screen	4.3" Touchscreen	4.3" Touchscreen	4.3" Touchscreen	4.3" Touchscreen
Max. Piston Stroke	40mm	40mm	50mm	50mm
Pressurization Mode	Electric/Manual	Electric/Manual	Electric/Manual	Electric/Manual
Re-pressurization Mode	Auto/Manual Slow Press	Auto/Manual Slow Press	Auto/Manual Slow Press	Auto/Manual Slow Press
Protective Cover	Acrylic Glass	Acrylic Glass	Acrylic Glass	Acrylic Glass
Operating Temperature	10℃-40℃	10℃-40℃	10℃-40℃	10℃-40℃
Isostatic Pressure	0-300MPa	0-300MPa	0-300MPa	0-300MPa
Isostatic Chamber	Φ22×70mm	Φ30×150mm	Φ40×150mm	Φ50×150mm
Dimensions (L×W×H)	305×430×530mm	305×430×600mm	355×450×710mm	405×470×720mm
Power Supply	220V (50/60Hz)	220V/110V (500W)	220V/110V (500W)	220V/110V (500W)
Weight	110kg	115kg	160kg	220kg
