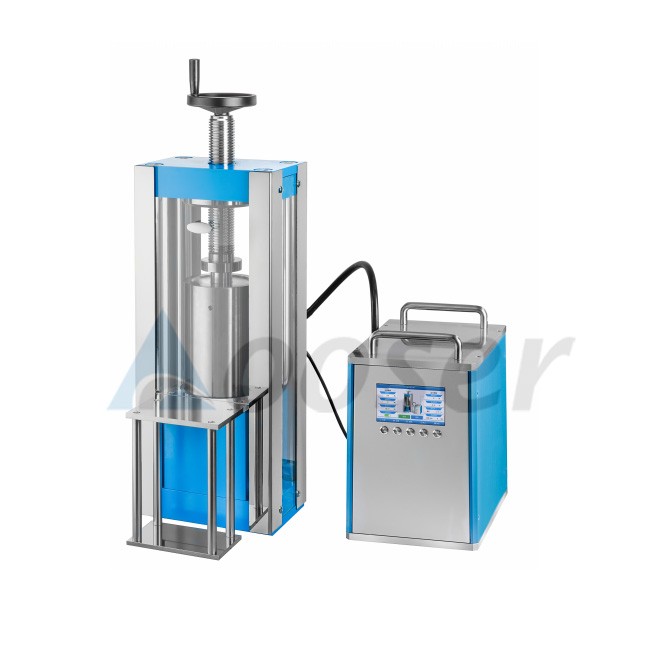

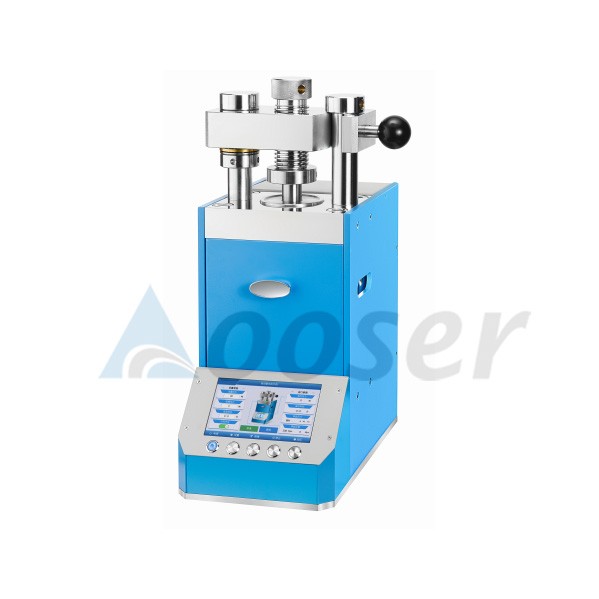

PP Series 300MPa Isostatic Press Machine 20-200T Lithium Battery Compaction 7-inch Touchscreen

Product Name: Isostatic Press Machine

Brand Name:AS-PP-20J~200J

Product Origin:China

Product description: The PP Series isostatic press applies 20-200T force with 300MPa omnidirectional compression, optimizing lithium electrode adhesion and cycle life. Featuring 7" touchscreen controls and auto pressure conversion, it accelerates R&D for batteries.

1. Product Description

The lithium battery isostatic press machine is specifically designed for lithium battery production. Utilizing the isostatic pressing principle, it ensures uniform pressure application on the battery cell in all directions, resulting in a compact internal structure and enhanced adhesion between electrodes and active materials. This machine effectively improves the compaction density of battery cells, optimizes battery performance, reduces internal resistance, and increases battery capacity and cycle life. It is a critical equipment in lithium battery manufacturing.

2. Product Features

① Durable solid aluminum alloy handwheel;
② Ergonomically designed lever for effortless operation;
③ Chrome-plated hydraulic cylinder with superior sealing and extended service life;
④ Intelligent control panel for easy parameter setup and multi-stage programmable settings;
⑤ Real-time display of sample pressure and parameters for precise monitoring;
⑥ Metal buttons with silver-plated contacts, ensuring >100,000 cycles of reliable operation.

Model Range: PP-20J ~ PP-200J

Model	PP-20J	PP-40J	PP-60J	PP-100J
Pressure Range	0-20T	0-40T	0-60T	0-100.0T
Display Accuracy	0.1T	0.1T	0.1T	0.1T
Piston Diameter	Φ110mm (diameter)	Φ130mm (diameter)	Φ150mm (diameter)	Φ200mm (diameter)
Pressurization Mode	Multi-stage programmed pressurization with real-time graphical display	Multi-stage programmed pressurization with real-time graphical display	Multi-stage programmed pressurization with real-time graphical display	Multi-stage programmed pressurization with real-time graphical display
Pressure Conversion	Auto-conversion based on sample geometry	Auto-conversion based on sample geometry	Auto-conversion based on sample geometry	Auto-conversion based on sample geometry
Display Screen	7-inch Touchscreen	7-inch Touchscreen	7-inch Touchscreen	7-inch Touchscreen
Isostatic Pressure	300MPa	300MPa	300MPa	300MPa
Isostatic Chamber (M×N)	Φ30×150mm	Φ40×150mm	Φ50×150mm	Φ60×150mm
Cylinder Stroke	50mm (T)	50mm (T)	50mm (T)	50mm (T)
Safety Protection	Upper plate cantilever structure for easy operation	Upper plate swing-arm structure for easy operation	Steel plate + acrylic glass door	Steel plate + acrylic glass door
Dimensions (L×W×H)	240×390×560mm	280×460×660mm	300×500×680mm	850×500×1100mm
Power Supply	500W (220V/110V customizable)	500W (220V/110V customizable)	500W (220V/110V customizable)	1500W (220V/110V customizable)
Weight	135kg	180kg	240kg	550kg

Model	PP-150J	PP-200J
Pressure Range	0-150T	0-200.0T
Display Accuracy	0.1T	0.1T
Pressurization Mode	Multi-stage programmed pressurization with real-time graphical display	Multi-stage programmed pressurization with real-time graphical display
Pressure Conversion	Auto-conversion based on sample geometry	Auto-conversion based on sample geometry
Display Screen	7-inch Touchscreen	7-inch Touchscreen
Safety Protection	Steel plate + acrylic glass door	Steel plate + acrylic glass door
Isostatic Pressure	300MPa	300MPa
Isostatic Chamber (M×N)	Φ80×150mm	Φ90×150mm
Safety Protection	Steel plate + acrylic glass door	Steel plate + acrylic glass door
Dimensions (L×W×H)	950×500×1180mm	1000×550×1250mm
Power Supply	500W (220V/110V customizable)	1500W (220V/110V customizable)
Weight	650kg	820kg
