PCD Series Split-Type Electric Isostatic Press Machine 65-200T 300MPa Lithium Battery Compaction

Product Name: Isostatic Press Machine

Brand Name:AS-PCD-65J~200J

Product Origin:China

Product description: The PCD Series split-type isostatic press delivers 65-200T force with 300MPa uniform compaction for lithium electrodes. Featuring 7" LCD programming and steel-acrylic protection, it boosts battery capacity by 20% while enabling ceramic sintering in Φ50-90mm chambers.

1. Product Description

The lithium battery isostatic press machine is specifically designed for lithium battery production. Utilizing the isostatic pressing principle, it ensures uniform pressure application on the battery cell in all directions, resulting in a compact internal structure and enhanced adhesion between electrodes and active materials. This machine effectively improves the compaction density of battery cells, optimizes battery performance, reduces internal resistance, and increases battery capacity and cycle life. It is a critical equipment in lithium battery manufacturing.

2. Product Features

① Durable solid aluminum alloy handwheel;
② Ergonomically designed lever for effortless operation;
③ Chrome-plated hydraulic cylinder with superior sealing and extended service life;
④ Intelligent control panel for easy parameter setup and multi-stage programmable settings;

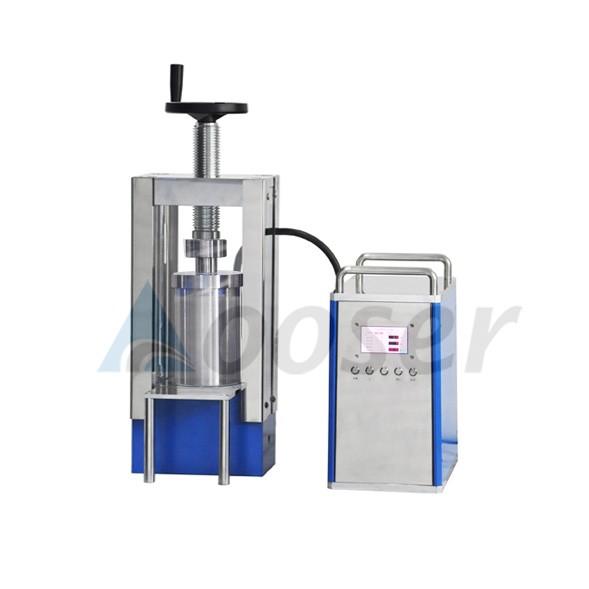

Split-Type Electric Isostatic Press Machine

Model	PCD-65J	PCD-100J	PCD-150J	PCD-200J
Pressure Range	0-65T	0-100T	0-150T	0-200T
Piston Diameter	Φ160mm (diameter)	Φ200mm (diameter)	Φ250mm (diameter)	Φ290mm (diameter)
Pressurization Process	Programmed pressurization - pressure holding - timed pressure release	Programmed pressurization - pressure holding - timed pressure release	Programmed pressurization - pressure holding - timed pressure release	Programmed pressurization - pressure holding - timed pressure release
Pressure Holding Time	1s~8s	1s~8s	1s~8s	1s~8s
Pressure Conversion	Program auto-converts sample pressure	Program auto-converts sample pressure	Program auto-converts sample pressure	Program auto-converts sample pressure
LCD Display	7-inch LCD	7-inch LCD	7-inch LCD	7-inch LCD
Protection	Steel plate + acrylic glass	Steel plate + acrylic glass	Steel plate + acrylic glass	Steel plate + acrylic glass
Isostatic Pressure	0-300MPa	0-300MPa	0-300MPa	0-300MPa
Isostatic Chamber	Φ50×150mm	Φ60×150mm	Φ80×150mm	Φ90×150mm
Chamber Dimensions (M×N)	220×400mm	260×400mm	280×400mm	290×420mm
Dimensions (L×W×H)	700×450×1050mm	850×500×1100mm	950×550×1150mm	1000×650×1200mm
Power Supply	1500W (220V/110V customizable)	1500W (220V/110V customizable)	1500W (220V/110V customizable)	1500W (220V/110V customizable)
Weight	350kg	580kg	680kg	980kg
