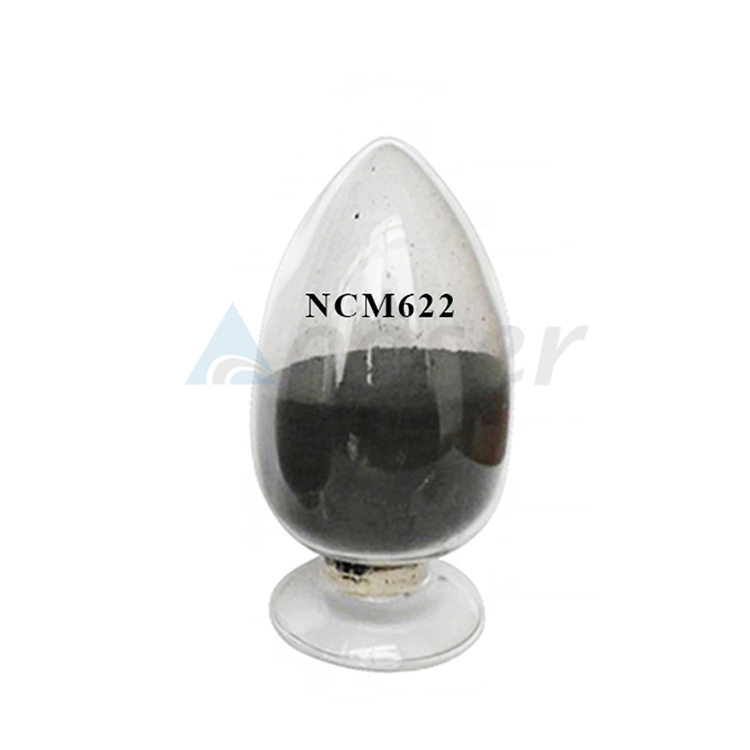

Lithium Nickel Cobalt Manganese Oxide NMC 622 Battery Cathode Material for Lab

The materials designed capacity is 162～168mAh/g（full cell，0.5C)

Suggest the recipe as followes:

T61A：SP：PVDF（HSV900）=95.2%:2.5%:2.3%

Lithium Nickel Cobalt Manganese Oxide NMC 622 Battery Cathode Material for Lab

Description:

High Capacity Li(Ni0.6Co0.2Mn0.2)O2 (NMC622)

Lithium Ion Battery Cathode Material NMC 622 or NCM 622 Ni:Co:Mn=65:15:20 Lithium Nickel Cobalt Manganese Oxide for lab lithium ion battery research.

The materials designed capacity is 162～168mAh/g（full cell，0.5C)

Suggest the recipe as followes:

T61A：SP：PVDF（HSV900）=95.2%:2.5%:2.3%

I. Specification:

Item		Unit	Standard	Typical
ChemicalCompositions	Li	%	7.2±0.6	7.1
ChemicalCompositions	Ni+Mn+Co	%	59.0±1.0	58.50
Impurity	Fe	ppm	≤100	45
	Na	ppm	≤100	48
	Cu	ppm	≤50	2

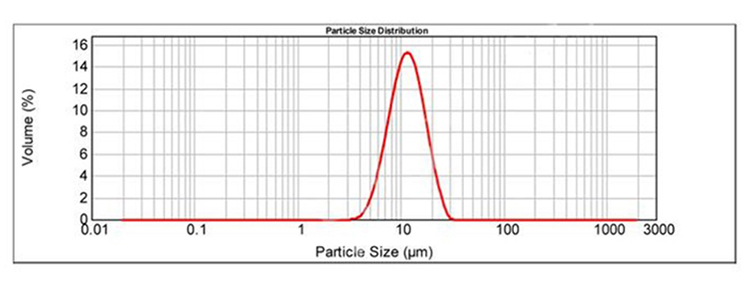

Particle Size Distribution	D10	μm	≥5.000	10.8
	D50	μm	11.5 ± 1.5	11.6
	D90	μm	≤25.0	19.6
	Dmax	μm	≤45.00	28.5
XRD Lattice Type		/	/	/
pH		/	≤12.0	11.7
Moisture		ppm	≤500	350
BET Surface Area		m2/g	0.35±0.15	0.35
Tap Density		g/cm3	≥2.1	2.4

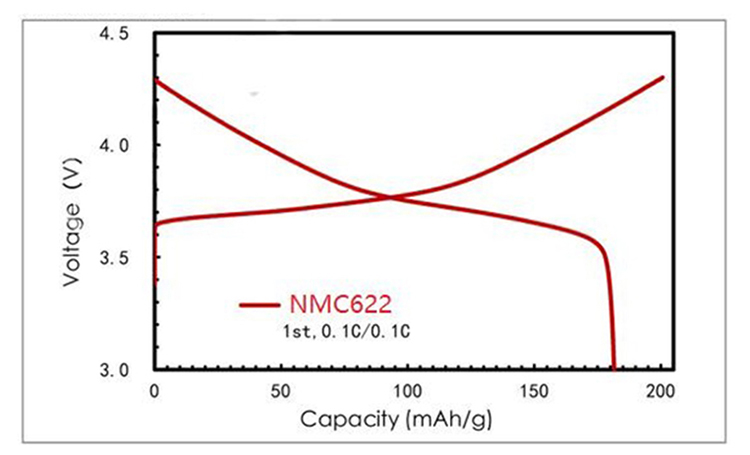

1stDischarge Capacity （CR2032, 0.1/0.1C, 3.0 ~ 4.3V v.s. Li）		mAh/g	≥178.0	181.5
1stefficiency		%	≥85.00	89.6
