Product name: Battery Stacking Machine/ Battery Electrode Laminator
Model: AS-BDP-200C
Stackable Size: 200x150mm
Stackable Layers: Up to 500 layers
Stacking Speed: Up to 5 layers/min
Max. Electrode Thickness: Piled up thickness < 10 mm
Aligning Accuracy: ±0.5 mm for stacked electrodes

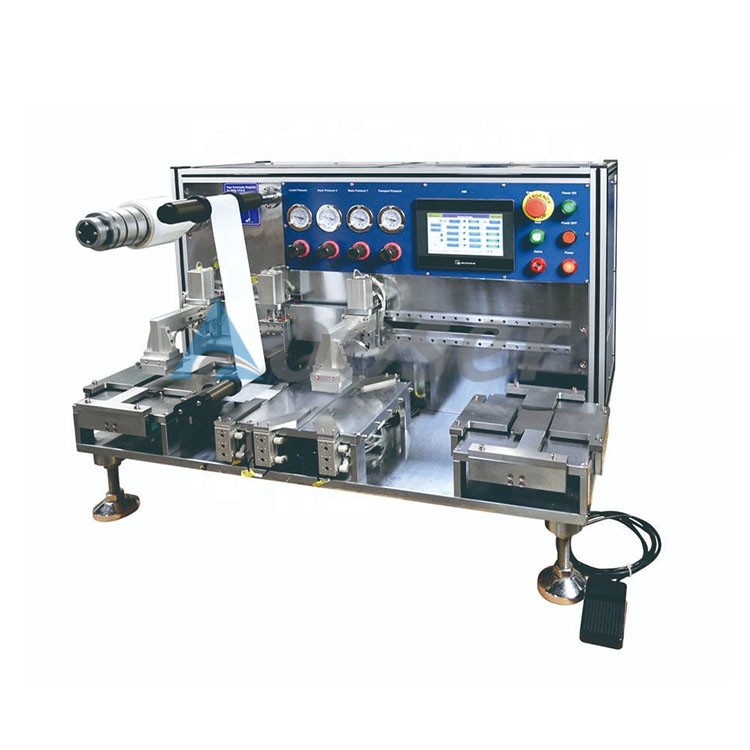

Semi-Automatic Battery Electrode Layer by Layer Stacking Machine for Pouch Cell
Description:
High-accuracy automatic stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the seperator film in between.
Product Introduction:
It is mainly used for the assembly of Z-shaped laminations of lithium battery positive, negative electrode and battery separator.
The device realizes manual loading, subsequent pole piece position correction and lamination process by fully automatic, and has the characteristics of high lamination efficiency and high stacking precision. The device can be designed to stack up to 200*200mm batteries. Different sizes can be realized by adjusting fixtures, which is very suitable for the development and sample preparation of laminated lithium-ion batteries.
The device adopts a single cantilever structure design, and the coil isolation membrane automatically controls the constant tension, and the motor drives the diaphragm to move left and right to realize the zigzag lamination.
Specification:
|
Model |
Semi-Automatic Pouch Battery Stacking Machine AS-BDP-200C |
|
Working Voltage |
AC220V 50/60Hz |
|
Power |
1KW |
|
Stackable Size |
200x150mm |
|
Stackable Layers |
Up to 500 layers |
|
Stacking Speed |
Up to 5 layers/min |
|
Max. Electrode Thickness |
Piled up thickness < 10 mm |
|
Aligning Accuracy |
±0.5 mm for stacked electrodes |
|
Acceptable Separator Roll Size |
I.D>3'' (76mm) O.D<9.8'' (250mm) |
|
Stacking Fixture |
One set of 80 x 50mm stacking die fixture is included for immediate use.
If you need different size electrode stacking, please inform us before order. We will make for your at extra cost. Allowable |
|
Vacuum Pump |
An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator. |
|
Suggested Air Pressure |
0.5 - 0.8 MPa (Air compressor is not included in the standard package.) Attention: If a gas cylinder is used instead of air |
|

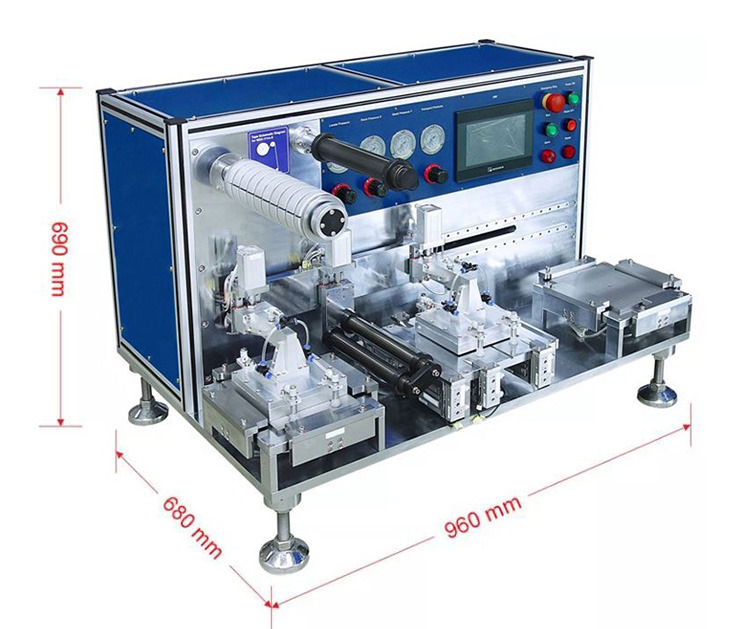

Product Dimensions |
960 mm L x 680 mm W x 690 mm H |
|
Weight |
260 kg |
|
Compliance |
CE Certified |
|
Warranty |
One Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty |
|
Application Notes |
Note: please confirm electrode sheet size before order ( each mold only fit with one size electrode ) |
