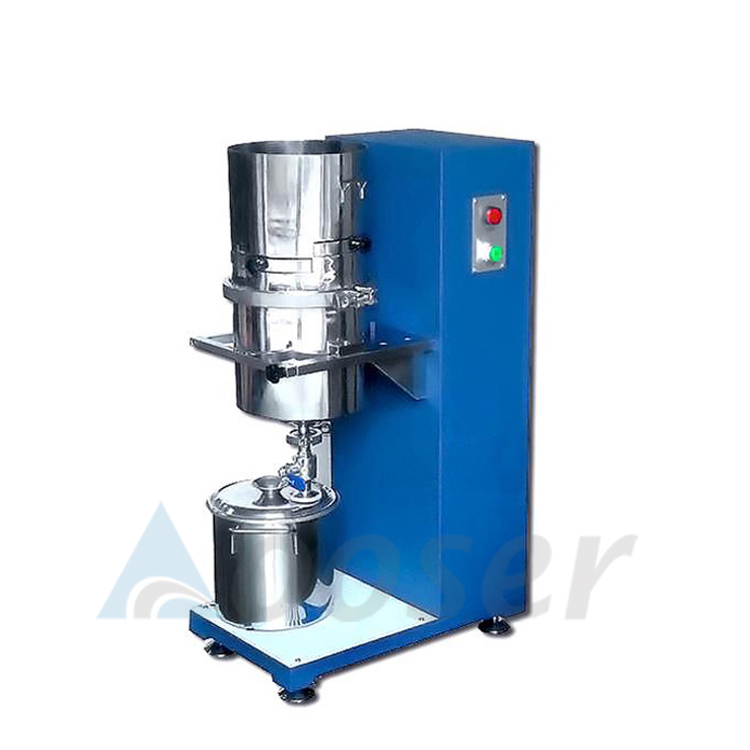

Small 5L Magnetic De-ironing Filtration System for Lithium Ion Battery Electrode Slurry Filting

Model: AS-MDFS-5L
Container Material: SUS304
Process Capacity: 5L
Origin:China

Small 5L Magnetic De-ironing Filtration System for Lithium Ion Battery Electrode Slurry Filting

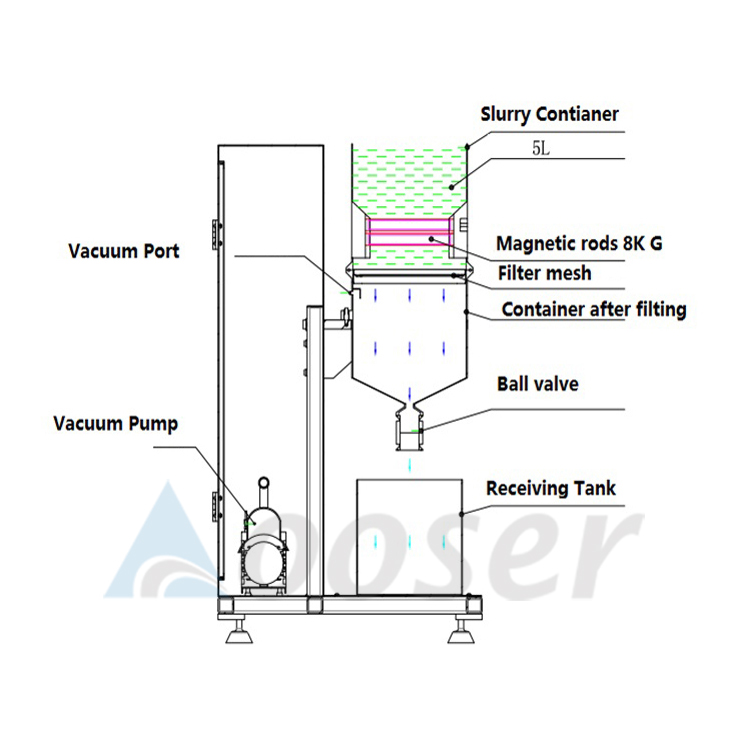

The equipment is a CE certified magnetic deironing filtration system. It is designed for optimizing the condition of slurry before the coating process. The slurry will pass through a set of strong permanent magnetic rods and then a mesh filter to remove large particles and iron impurity. Such a system is not only able to filter out the large particles but also remove iron to improve the quality and stability of the electrode slurry.

Specifications:

Model	Magnetic deironing filtration system AS-MDFS-5L
Voltage supply	110Vac - 240Vac universal power
Power	50W
Working Temperature	<=40°C
Process Capacity	5L
Magnetic Field Strength	8000 G
Filter	3 mesh filters: 80, 100, 120
Structure	Containers Made of Stainless Steel 304
Slurry Viscidity	<=15000CP
Humidity	0-90%RH
Deironing Function	8000-10000 GC

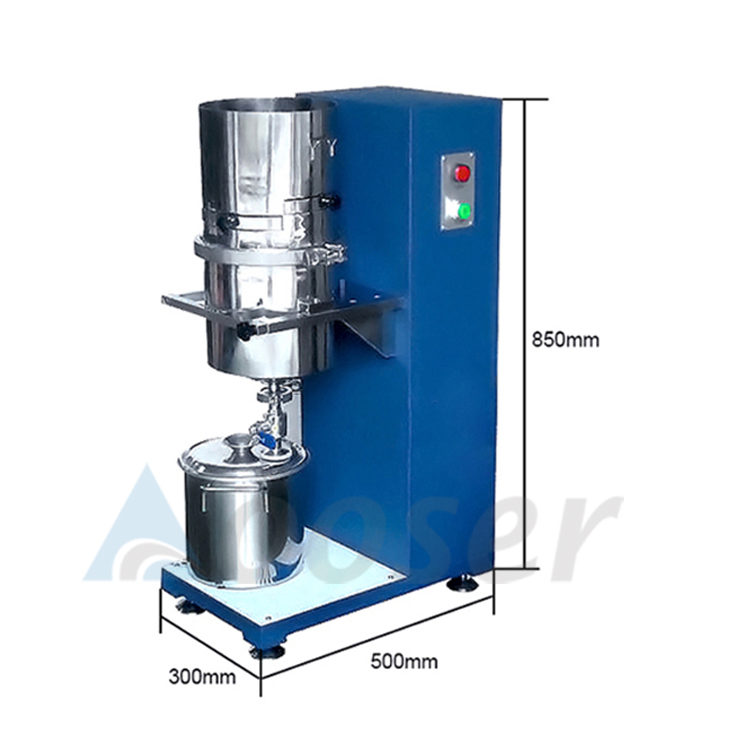

Overall Dimensions	500mm(L) x 300mm(W) x 850mm(H)
Shipping Weight & Dimension	130 lbs, 48"x40"x43"
Compliance	CE Certified Machine is safe 24VDC input , which can be used without any safety certification
Warranty	One year limited with lifetime support
Origin	China
