Model: AS-SM-5C
Application: 18650/21700/26650/32650
Sorting Speed: 4200pcs/hour
Origin: China
Description: This 18650 battery cells automatic sorting machine is mainly applied to battery pack manufacturer, it can also be customzied for other types of cylindrical batteries.

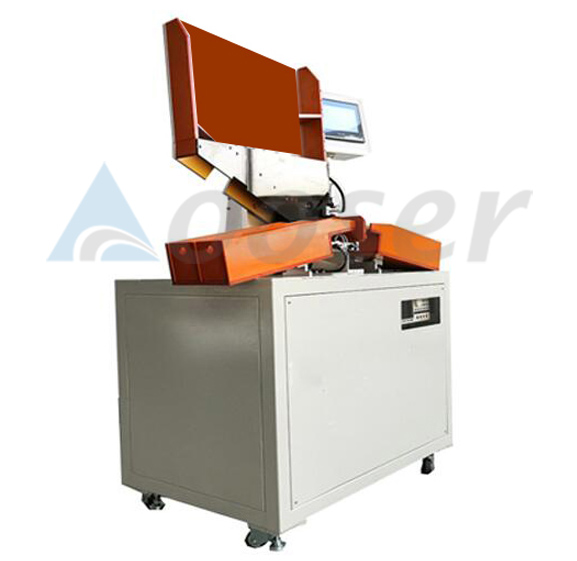

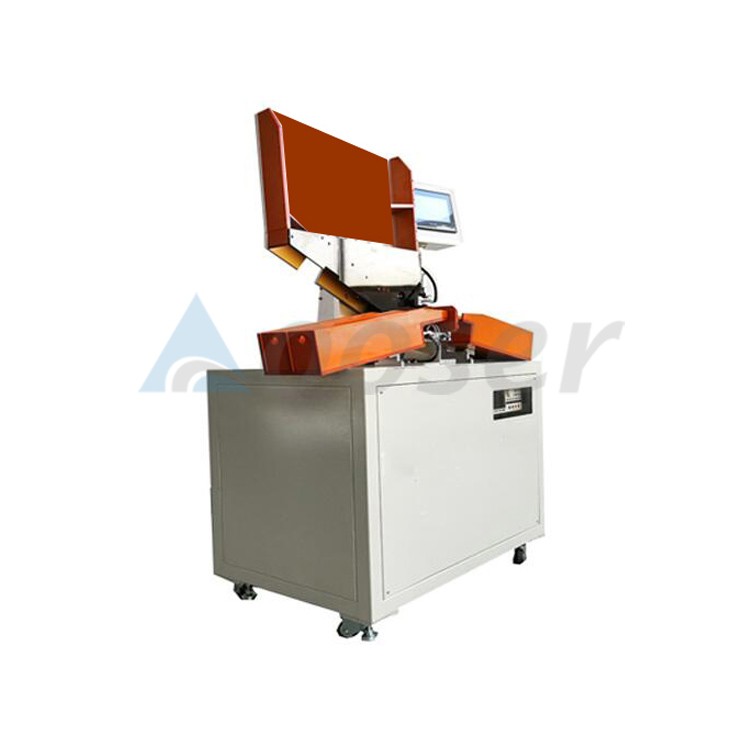

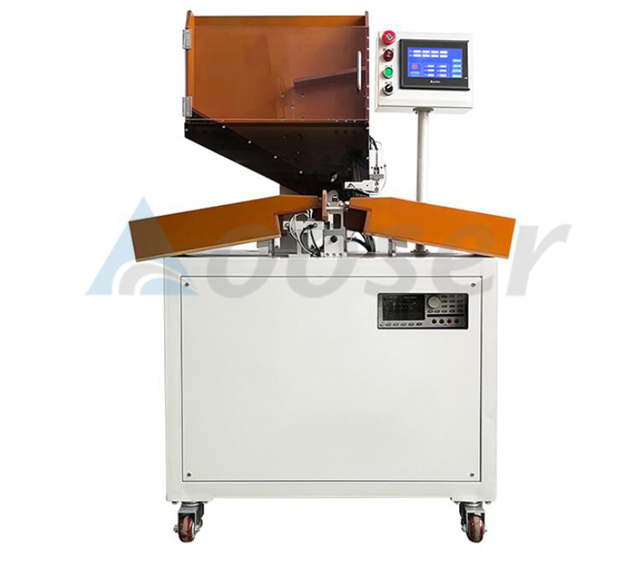

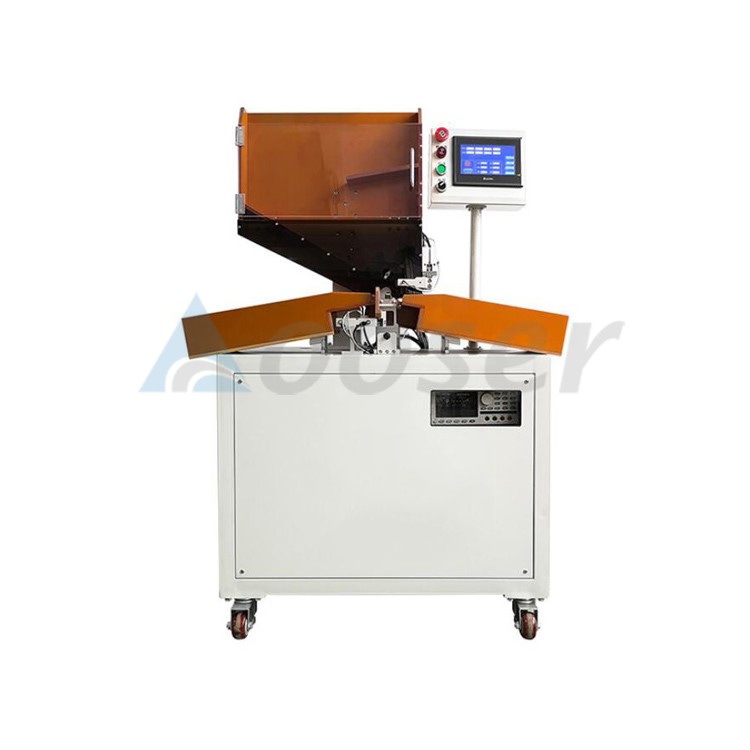

Automatic Cylindrical Cell Sorting Machine With 5-Channel
Advantage:
1.Products with high precision internal resistance,Voltage,automatic test system.
2.The device is set according to the settings Internal resistance voltage,
3. Accurate delivery of cores to designated gears.
4 .Hopper put in 500 pcs High production efficiency easy to operate.
5.Stick Barley paper 4200pcs/Hour high stability.
6.Can be docked with automatic veneer cushion machine,Saving labor.
Specifications:
|
Voltage |
AC220V,50Hz |
|
Compressed Air |
0.4-0.7Mpa |
|
Internal Resistance |
HK3561, Hioki3561 optional |
|
Measurement of Internal Resistance |
Range:0-60mΩ Accurace:± 0.5% rdg Resolving power: 0.1mΩ |
|
Internal Pressure Measurement |
Range:0-10V Accurace:± 0.015% rdg Resolving power: 0.1mV |
|
Size(L x w x H) |
980x520x1360mm |
|
Production Efficiency |
4200PCS/hour, single pad 1pcs |
|
Control Device |
7 inch Touch Screen |
|
Sorting Speed |
60-70PPM |
Standard Configuration:
|
Serial No. |
Spare Parts |
Brand |
|
1 |
Air Cylinder |
SMC,CKD |
|
2 |
Solenoid Valve |
SMC |
|
3 |
Linear Guide Rail |
TPI |
|
4 |
Electric Relay |
OMRON |
|
5 |
PLC |
TouchWin |
|
6 |
Inductorium |
OMRON,SUNX |
|
7 |
Button |
Goncon |
|
9 |
Pilot Lamp |
Goncon |
|
10 |
Tester |
HK3561, Hioki3561 optional |
