Small Electric Roller Press Machine With Heating Effect for Lab

Working Voltage

110V - 240V AC, 50/60Hz, automatic switch for worldwide use

UL/CSA/TUV certified power supply is in outside machine for easy

Motor

High Current torque 24V DC motor with reducing gear

1.8 A Max.

Rated power 40W

Rolling Speed

Dimensions: 100mm(Dia.) x 100mm(W)

Rolling Speed: 5-40mm/s or  0.3 - 2.4 Meter/ Minute  adjustable

Standard: Steel Roller

Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating

Roller diameter tolerance (TIR): <0.004mm

RA:0.4um

Never roll materials with hardness > 50HRC (bench top rolling press is not suitable for calendering thick metals. For applications with such needs, please consult with MTI engineers.)

Optional: Ceramic coated  rollers are available in product option bar

Ceramic coated on hardened tool steel with HRC > 72,

The coating material: 97% is chromic oxide; 3% is aluminum oxide, calcium oxide, and magnesium oxide

This roller is specially designed for rolling Lithium metal sheet, please don't use it for hard material

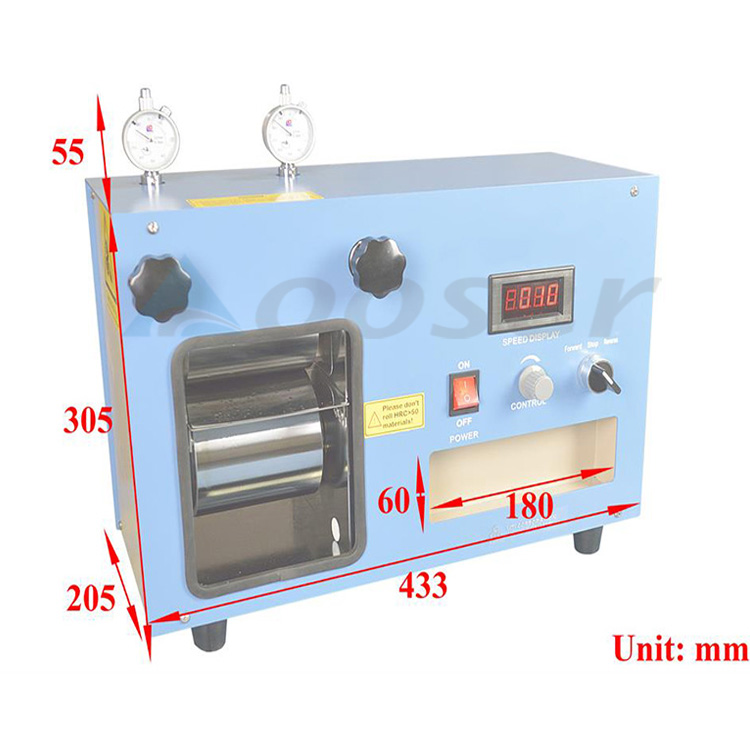

Product Dimensions

433 mm(L) x 205 mm(W) x 305 mm(H)

Compliance

CE Certificated

All electric components ( >24V) are UL / MET / CSA certified

The Product is ready to pass TUV(UL61010)  or CSA certification at extra cost.

Warranty

One-year limited manufacturer warranty with lifetime support

Rusting and damage due to improper storage condition or maintenance are not covered by warranty

Warnings

Never roll materials with hardness > 50HRC

In order to prolong the lifespan of the roller bearings, regular lubrication is recommended.

Multi-step thickness calendering needed: While calendering the sample sheet, make each calendering decrement of 0.02mm comparing to sheet original thickness.

Never calendering decrement over 0.02mm comparing to original sheet thickness each calendering.

Must clean roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion

Net Weight

123 lbs

Shipping Weight

160 lbs

Shipping Dimensions

40"x23"x26"

Origin

China

Warranty

One Year Limited with lifetime support
