Model: AS-CSDH-2kW
Votalge: 220V AC
Frequency: 24 Khz
Current: 10A
Warranty: 1 Year

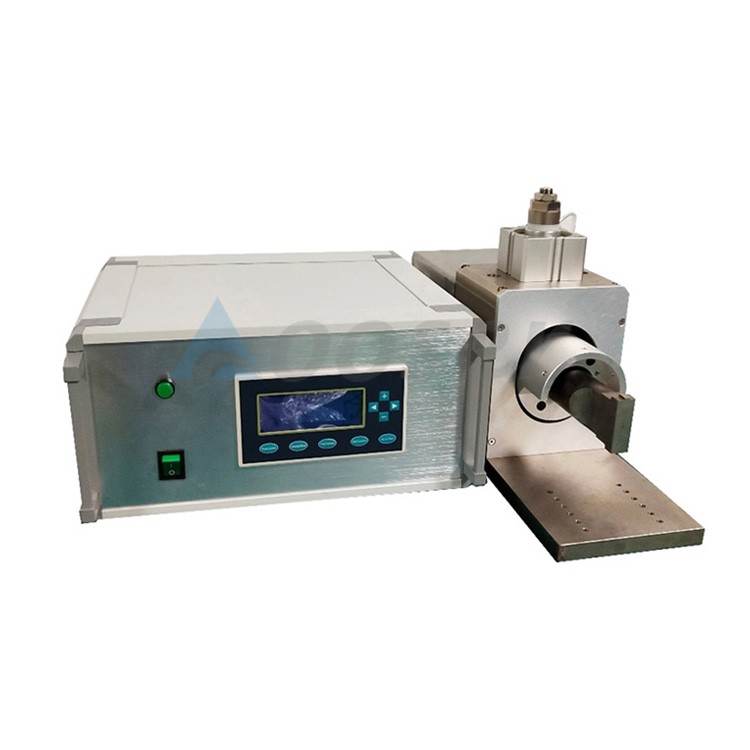

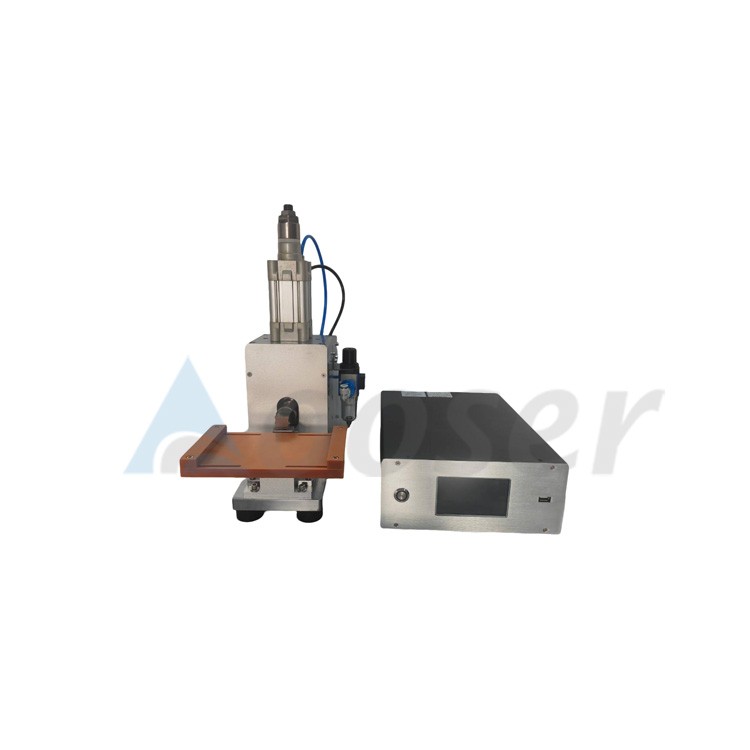

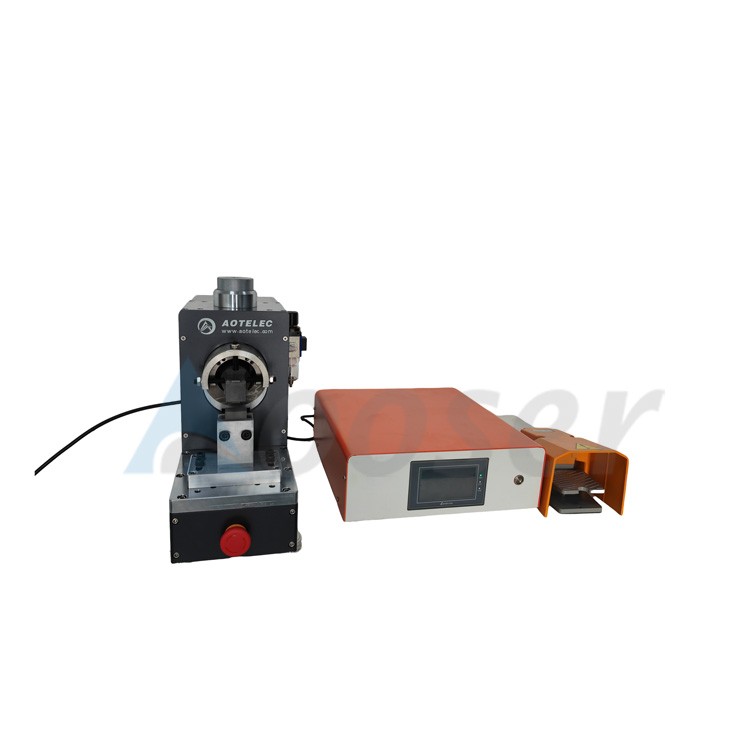

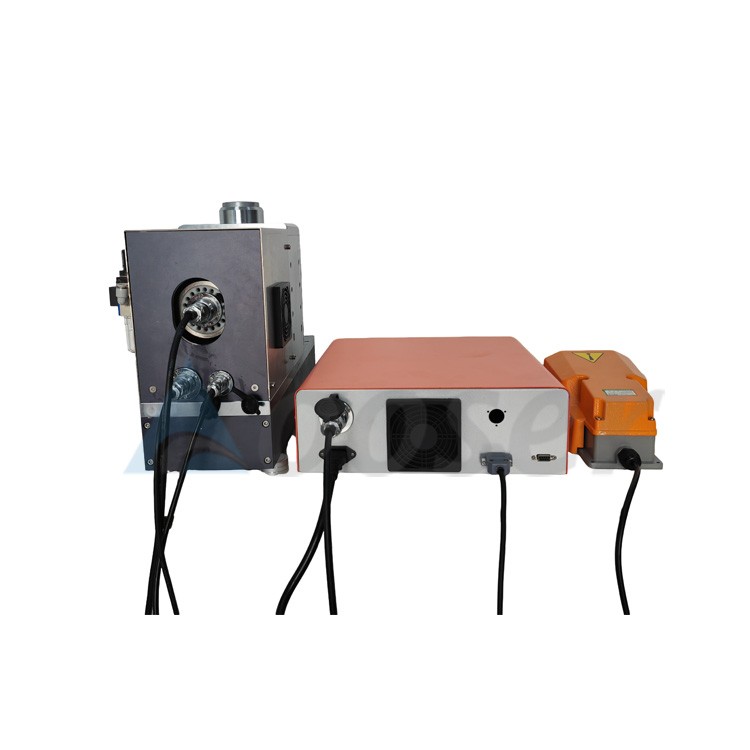

Pouch Cell Battery Tab Ultrasonic Spot Welder of AS-CSDH-2kW
Description:
Ultrasonic metal welding machine uses the principle of ultrasonic high-frequency vibration and friction to convert the energy of ultrasonic vibration into friction energy and transfer it to the metal surface to be welded. In the case of applying pressure to the heat generated by friction, the metal structure molecules are fully activated to form a new type of device that fuses between the molecular layers.
Main features:
1. Ultrasonic upper and lower welding head, using German steel raw materials, using superb processing technology, product durability, long life, smooth point.
2.Spot welding head: mechanically precise and stable, equipped with integrated cooling system.
3. Generator:use automatic tracking constant current technology with stable performance and intelligent control mode.
4. Transducer system:the power output is strong and stable, adoptGerman Tektronix chip.

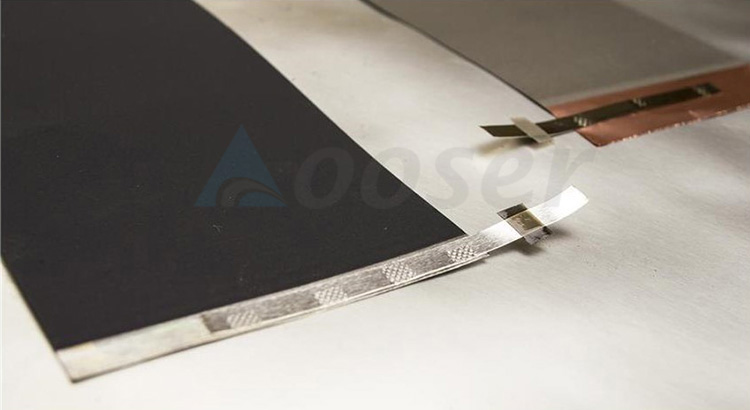

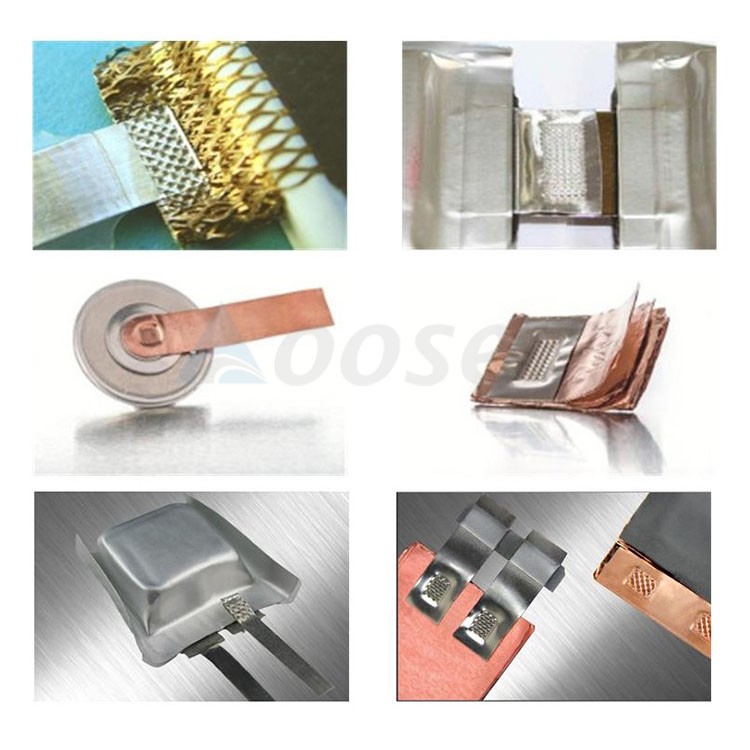

5. Welding materials:Al foil, copper foil, nickel foil etc.
Technical parameters:
|
Product name |
Ultrasonic Spot Welding Machine |
|
Model |
AS-CSDH-2kW |
|
InputVoltage |
AC220V (±10%),50Hz, 110V optional |
|
Airsource |
0.2-0.6Mpa |
|
Max output power |
2000 W |
|
Frequency |
24KHz |
|
Power regulating range |
Automatic frequency tracking,power adjustable 0~100% |
|
Automatic frequency tracking accuracy |
±5HZ |
|
Power stability |
≤ 5% |
|
Remote terminal dynamic response time |
≤10ms |
|
Overcurrent protection current |
10 A |
|
Overcurrent protection time |
100 ms |
|
Overheat protection temperature |
85 ℃ |
|
Working Temperature |
+5℃~ +50℃ |
|
Dimension |
Power box:420mm*380mm*200 mm Welding machine:510mm*280mm*400 mm |
|
Weight |
Power box:10kg, welding machine:45kg |
|
Warranty |
Welding head 6 month, machine is 1 year |
|
Other details |
Please send inquiry |
