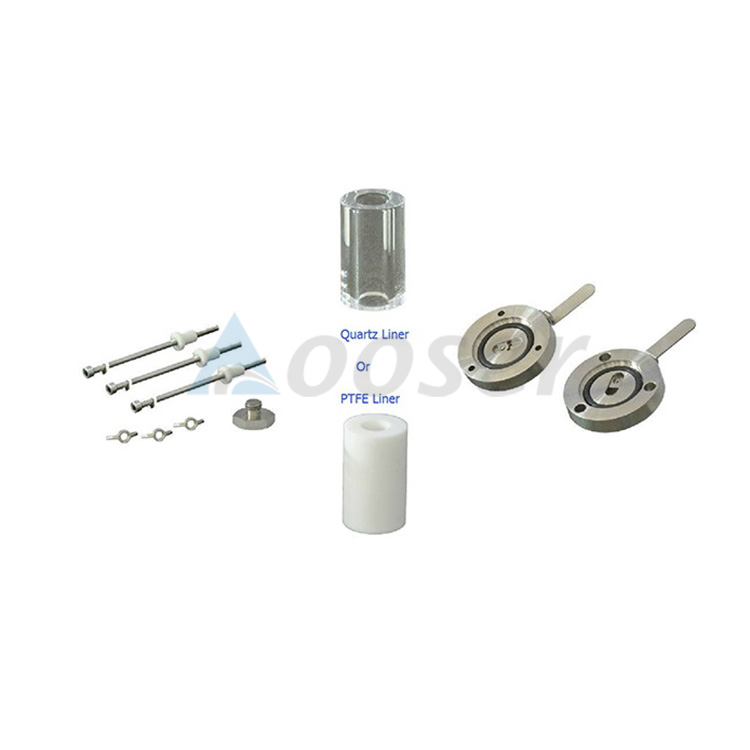

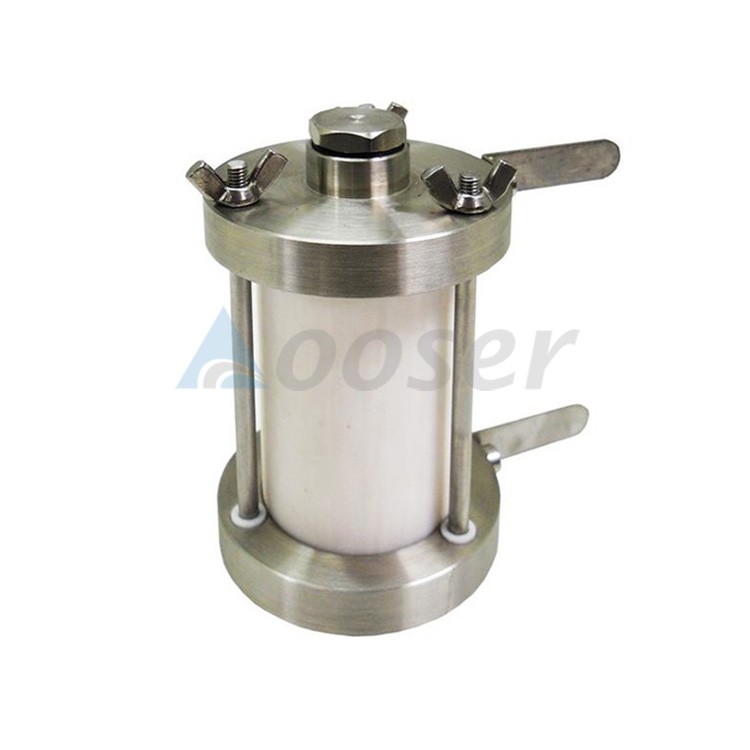

18650 Cylindrical Battery Split Type Test Cell with Optional PTF Or Quartz Liner

Model

EQ-SC-18650-TF

EQ-SC-18650-Qz

Dimensions (Dia. x Height)

1. ID of PTFE Body (liner): 18mm

2. Height of PTFE Body: 65mm

1. ID of Quartz Body (liner): 19mm

2. Height of PTFE Body: 65mm

Material

1. Caps: Full Stainless steel 304 end caps

2. Body liner: Electrolyte corrosion-proof PTFE liner can withstand temperature up to 250ºC

3. O-ring: Sealed by electrolyte corrosion-proof PTFE O-rings

1. Caps: Full Stainless steel 304 end caps

2. Body liner: Transparent quartz body allows you perform In-situ Laser Raman Spectroscopy.

3. O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings

Design

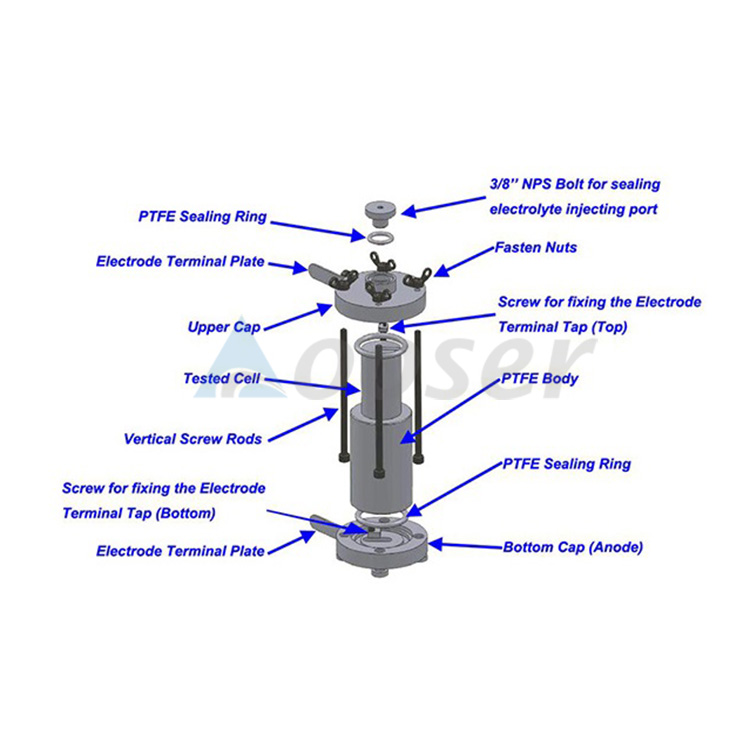

1. Easy assembling with only four cap mounting screws

2. Easy to separate for cleaning after the test

3. Space saving, compact design allows you put it into the glove box
