1.Multigroove coating device is designed for use on a flat substrate coating uniformity paint, adhesives and products similar.
2.Our company put more grooves precision coating device diversity and alternative fixed groove coating device is incorporated in a meter.
3.Suitable for aqueous, acidic and alkaline products.

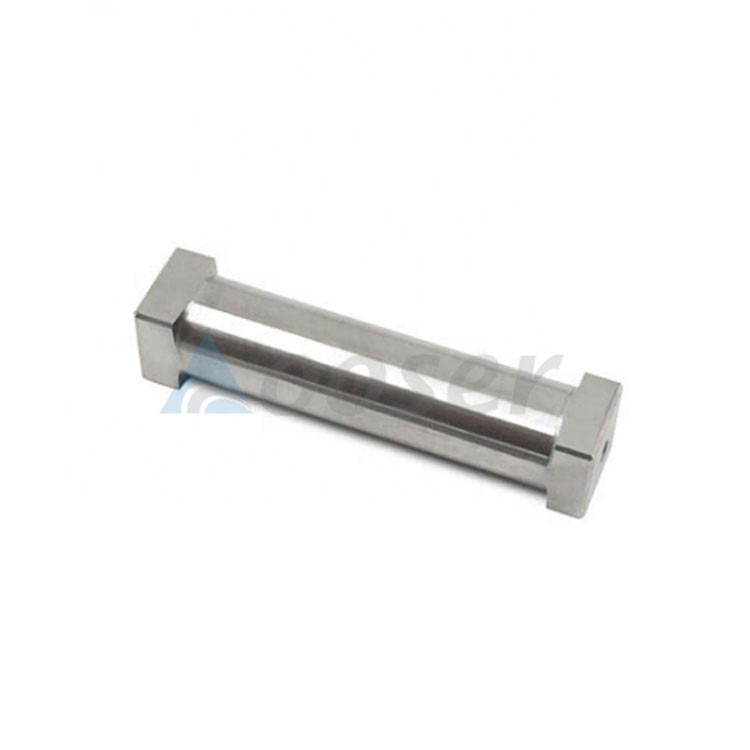

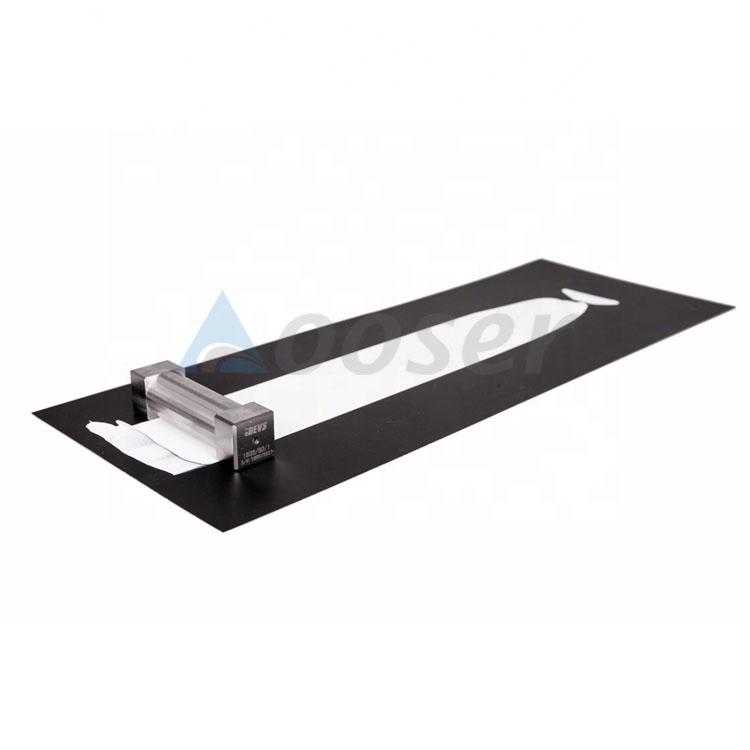

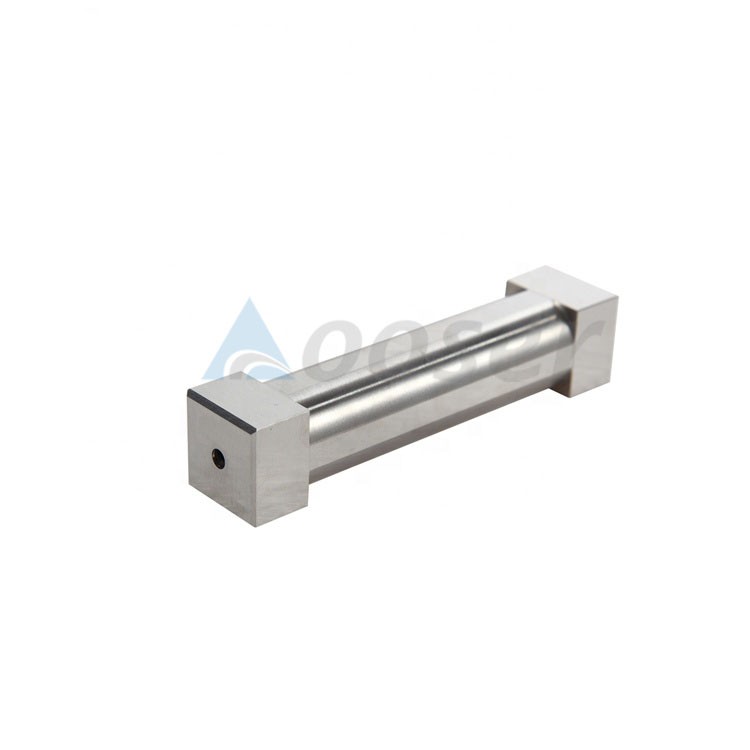

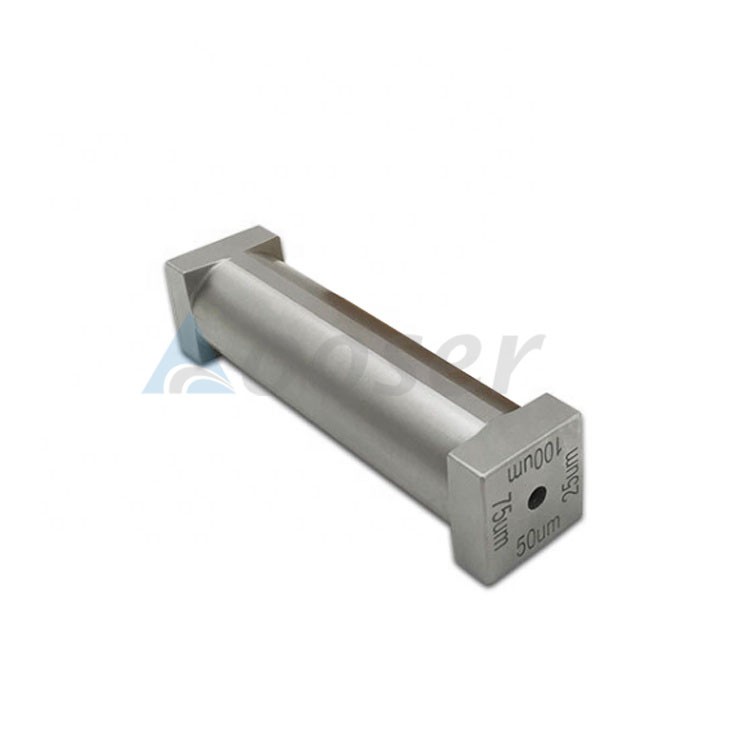

Manual Multi-groove Wet Film Coating Applicator For Lab Battery Making
Application:
1.Multi-groove coating device is designed for use on a flat substrate coating uniformity paint, adhesives andproducts similar .Our company put more grooves precision coating device diversity and alternative fixed groove coating device is incorporated in a meter.
2.Suitable for aqueous, acidic and alkaline products.
Technical parameters:
1. High grade stainless steel wear-resistant material
2.The effective coating width:
AS-DSP206 Universal type → 80mm (coating device total length 100mm)
AS-DSP205 lengthened type → 160mm (coating device total length 190mm)
3. Ordering Information:
|
Universal type |
The effective coating width |
|
AS-DSP206 |
80mm (coating device total length 100mm) |
|
AS-DSP206/1 |
(5µm,10µm,15µm,20µm) |
|
AS-DSP206/2 |
(25µm,50µm,75µm,100µm) |
|
AS-DSP206/3 |
(50µm,100µm,150µm,200µm) |
|
AS-DSP206/4 |
(30µm,60µm,90µm,120µm) |
|
Lengthened type |
The effective coating width |
|
AS-DSP205 |
160mm (coating device total length 190mm) |
|
AS-DSP205/2 |
(25µm,50µm,75µm,100µm) |
|
AS-DSP205/3 |
(50µm,100µm,150µm,200µm) |
