Model: AS-STC-21700
O-ring Material: PTFE
Application: Cylinder Cell Research
Origin: China

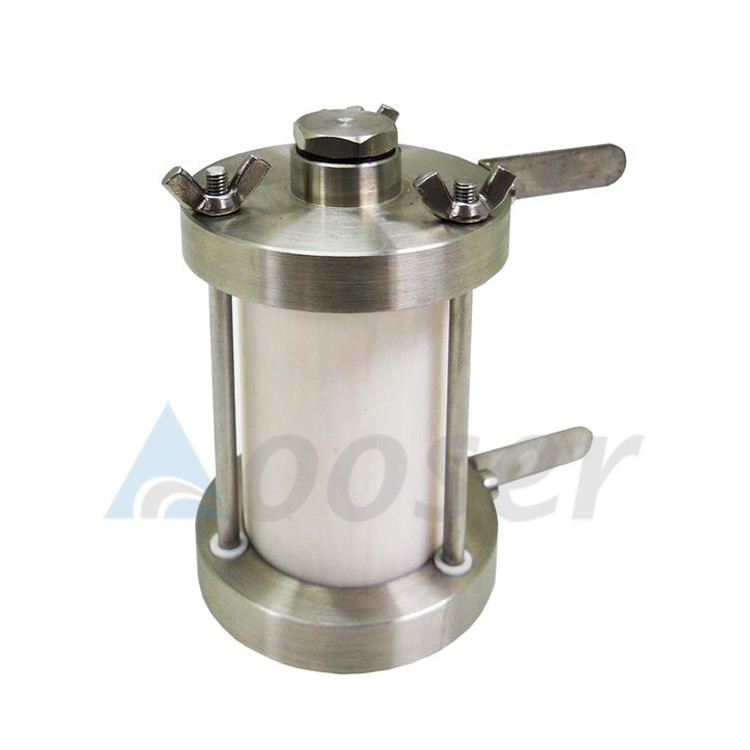

21700 PTFE Split Test Cell for Lab Cylindrical Battery Research
Description:
21700 Split Type Testing Cell can research the materials of 21700 cell easy. Its detachable design allows you to test the cycling behavior as well as structural changes of electrode easily and quickly.
|
Specification |
|
|
Dimensions (Dia x Height) |
ID of PTFE Body: 21mm OD of PTFE Body: 40mm Height of PTFE Body: 70mm |
|
Material |
Caps: Full Stainless steel end caps Body: Electrolyte corrosive-proof PTFE body can sustain with temperature up to 250ºC O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings |
|
Design |

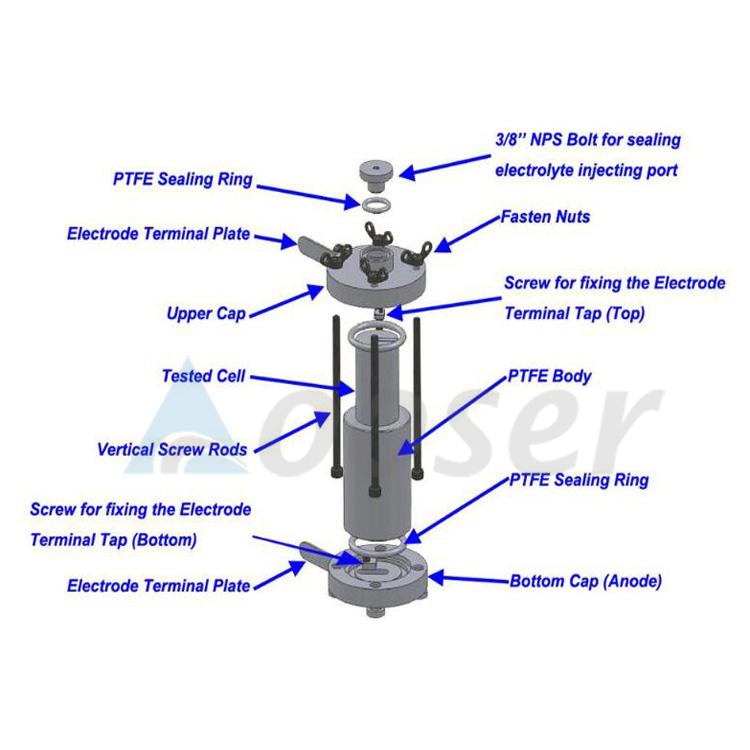

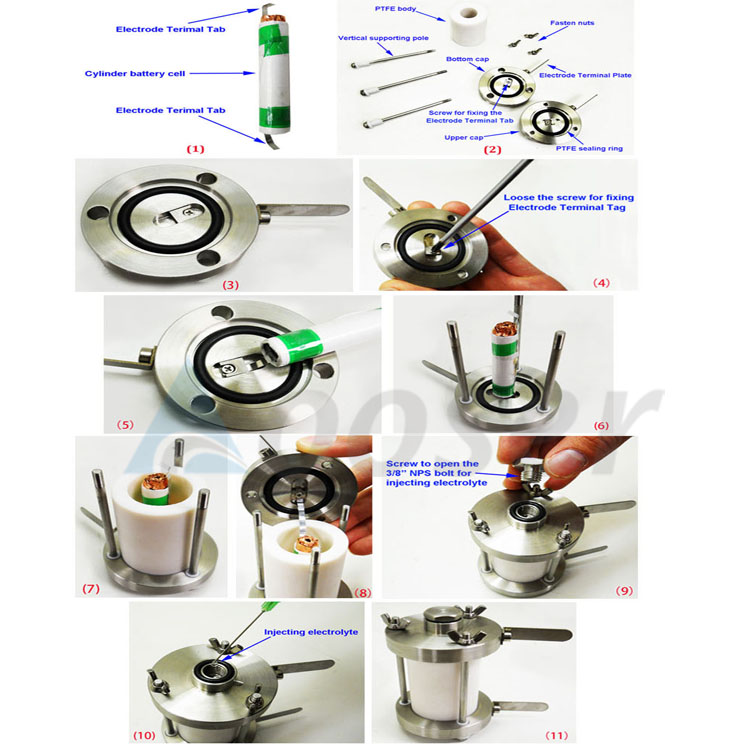

Easy assembling by only four cap mounting screws Easy to separate after test for cleaning Space saving, compact design allows you put it into the glove box Click the image left for the detailed illustration of this cell |
|
Origin |
China |
|
Warranty |
One year limited warranty with life time support |
