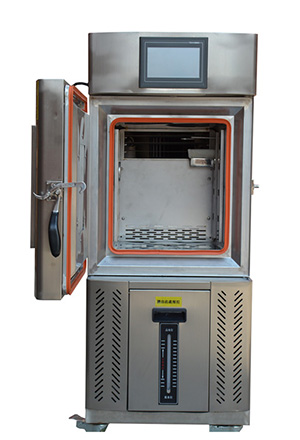

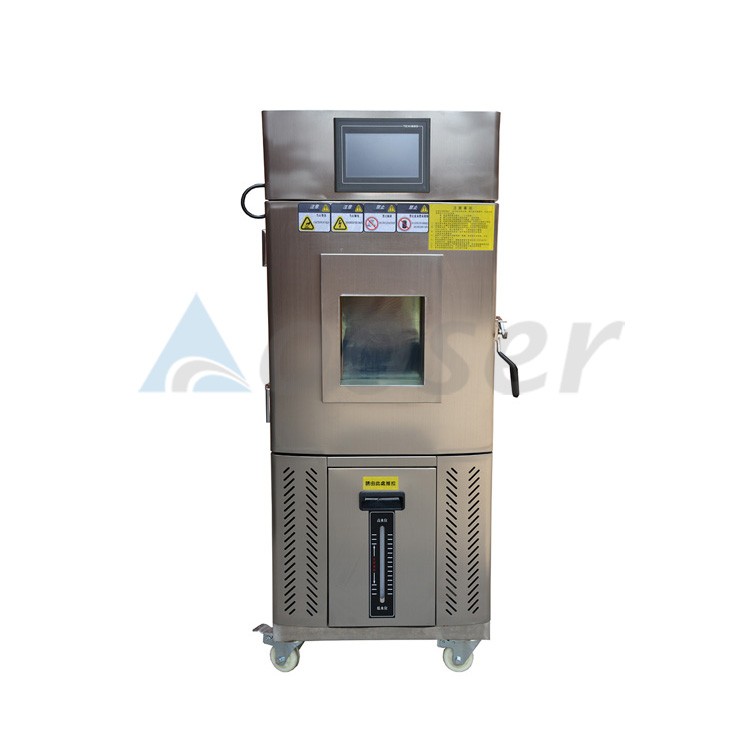

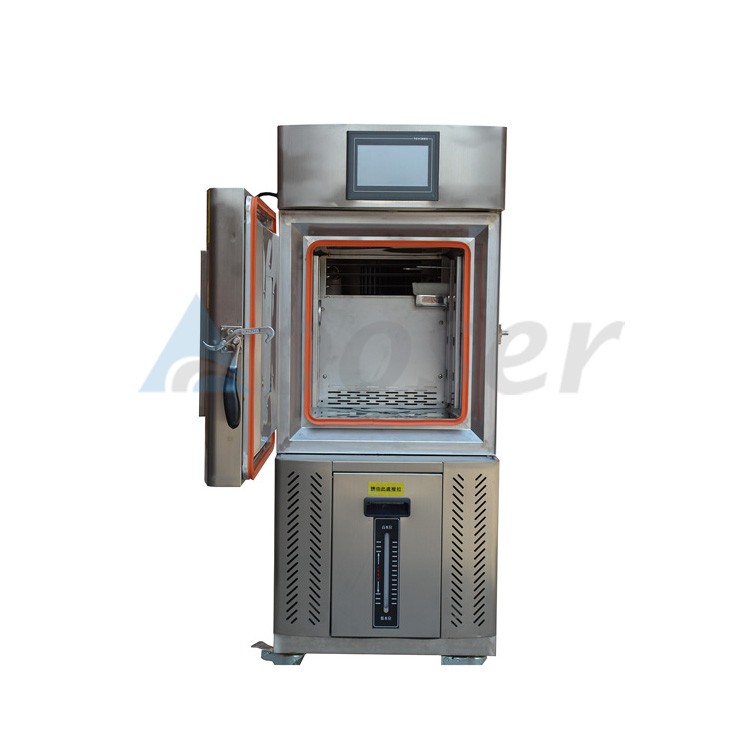

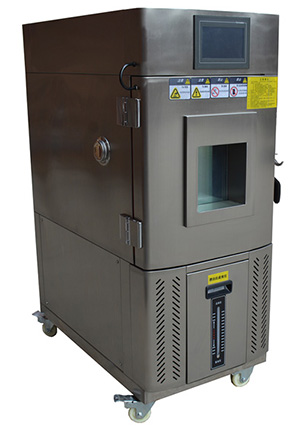

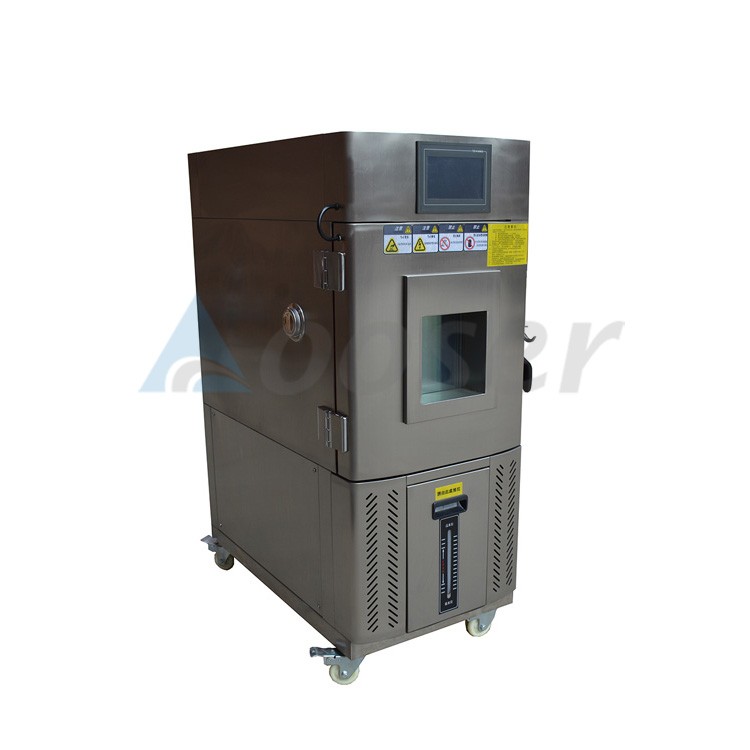

Small Stability Constant Temperature and Humidity Test Chamber Used for Lithium Battery

Model

High-Low Temperature Chamber  AS-THC-42L

Source voltage

AC 220V±10%, 50HZ (custom voltage available)

Power

3500W

Warranty

One year limited warranty with life time technical support

Temperature range

-20℃ to 150℃

Temperature fluctuation

Less than±0.5℃

Temperature uniformity

Less than±1℃

Temperature deviation

Less than±2℃

Temperature rise and fall

From 20℃ to -20℃, about 40 minutes

From 20℃ to 100℃, about 40 minutes

Humidity range

20% -98%R.H (AT+25℃～+85℃)

Humiditydeviation

+2/-3%R.H (above 75%R.H ) ,±5% R.H (under 75%R.H )

Wind speed

1.7m/s to2.5m/s

The data above is measured under≤25℃, normal pressure, no-load and no-load conditions,

1/6 space from the inner wall of the cabinet.

Inner box size(L*W*H)

350*300*400mm

Dimension(L*W*H)

550*870*1400mm

Cable hole

One 50mm diameter hole on the side on chamber(can be customized)

Workshop material

SUS304 mirror stainless steel plate

Box shell material

SUS304 stainless steel

Box door

A multi-layer insulating glass observation window is installed on the gate, and a heating anti-frost device is provided.

Lighting

A (AC12V) 20W halogen lamp is installed on the chamber door.

Safety device

With over temperature protection, grounding etc

Shelf

Two-layer adjustable height stainless steel strip shelves

Safety protection device

Studio over temperature protection;

Heater short circuit protection;

Humidifier short circuit protection;

Fan overload protection;

Compressor overpressure protection;

Compressor overload protection;

Water shortage protection;

Leakage Protection;

Safe and reliable grounding device.
