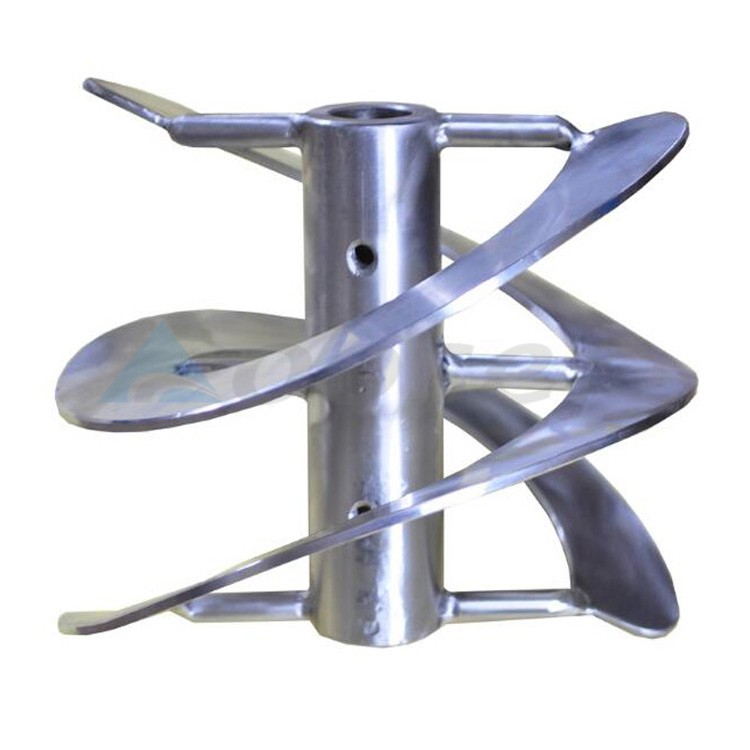

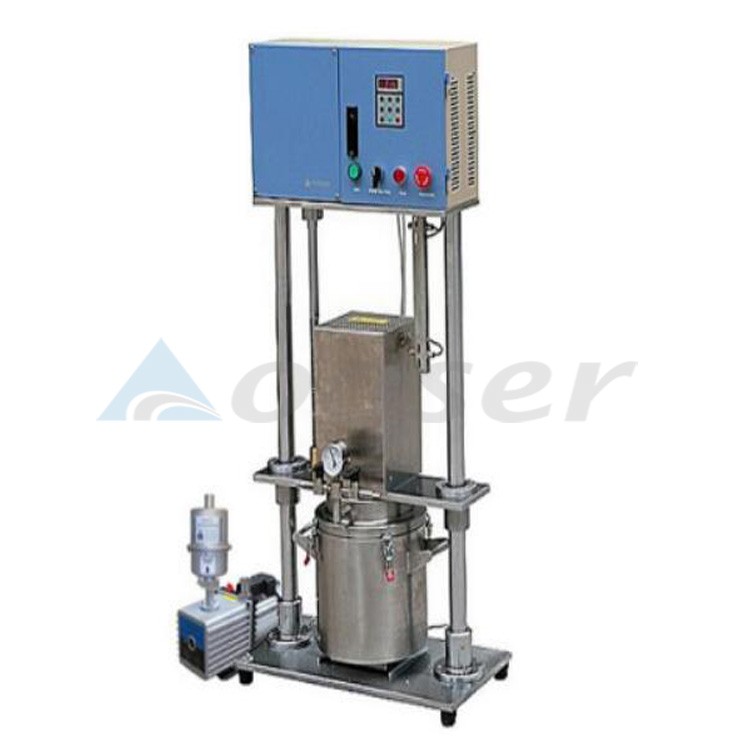

5L Small Helical Blade Vacuum Mixer for Lithium Battery Electrode Mixing

5L Small Helical Blade Vacuum Mixer for Lithium Battery Electrode Mixing

Model: AS-SFM-6E

Type: Vacuum Stirring

Net weight: 119 KG(262 lbs)

Origin: China

5L Small Helical Blade Vacuum Mixer for Lithium Battery Electrode Mixing

Description:

1:Vacuum mixing machine is designed for making large batch of chemical compound via blending and mixing in single container under vacuum driven by electricity only.

2:The vacuum mixing machine is programmed in speed, time, and rotating direction, and water cold stainless steel tank promise high efficient in mixing.

3:Thevacuum mixing machine is excellent for preparing lithium battery materials LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble.The processed material has good dispersion and uniformity.

Specifications:

Model	Vacuum mixing machine AS-SFM-6E

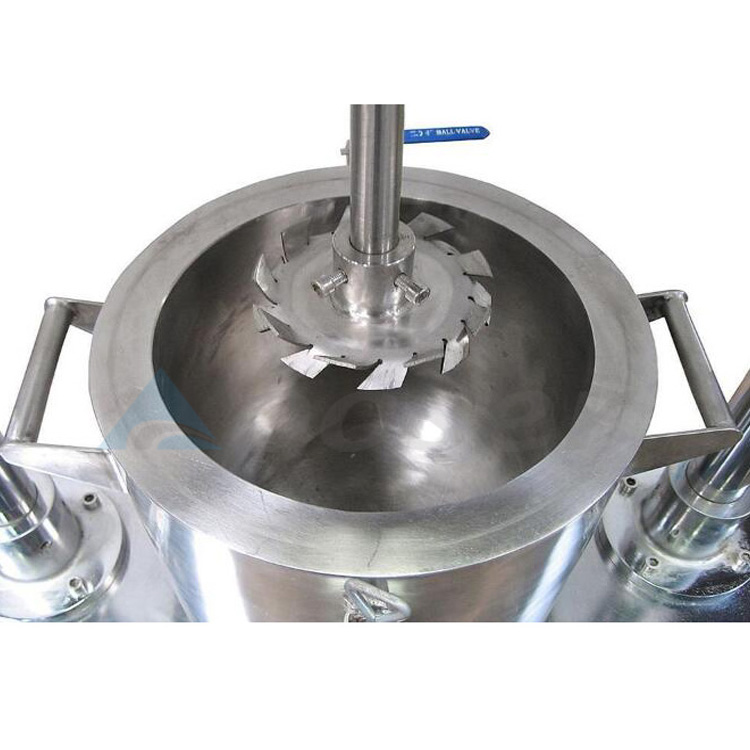

Features	5 liter 304 stainless steel container with double layer water cooling jacket. Advanced T type sealing to keep vacuum pressure up to 12 hours. Double Step Rotary Vane Vacuum Pump, is included for immediate operation Container is opened or closed by electric motor (no air pump is required any more) Programmable controller to set time, speed, rotation direction.
Voltage	110-240V AC single Phase, 50/60Hz (build-in frequency converter to ensure the mixer can be used under 50 or 60 Hz)
Rate Power	750 W
Rotor Rod Speed	0 -1400 RPM variable
Lifting	Electric motor ( no compress are pump required any more )
Water Requirement	16 L/min water flow required to cool mixing tank Cooling water 1/4'' Inlet and outlet on the back of the mixing tank (with build-in cooling jacket) Suggest you order recirculating water chiller by click picture picture left to save water (water chiller is not included)
Vacuum Pump	Double Step Rotary Vane Vacuum Pump, is included Vacuum gauge is built in with minimum vacuum level -0.1 MPa

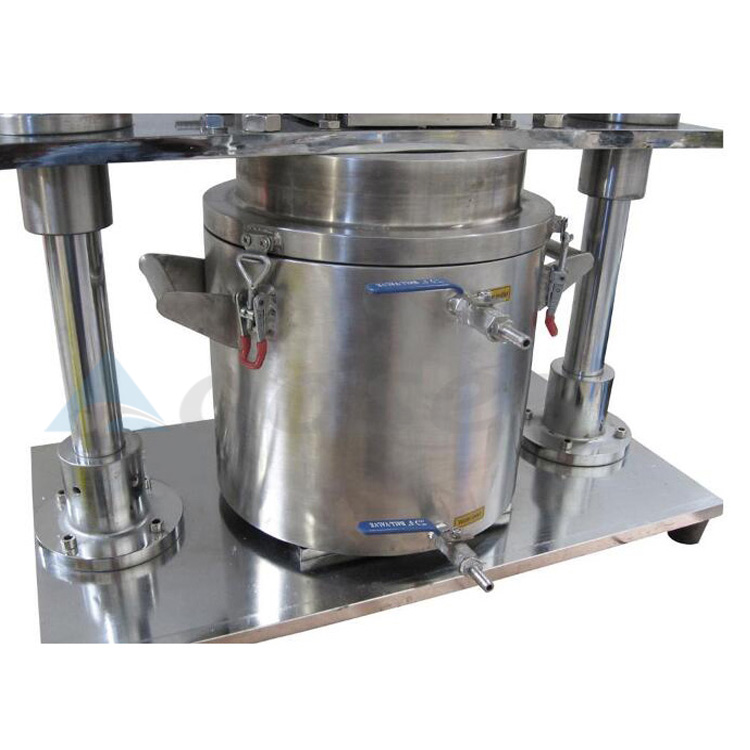

304SS Container Size	270mm O.D. x 210mm I.D. x 230mm H

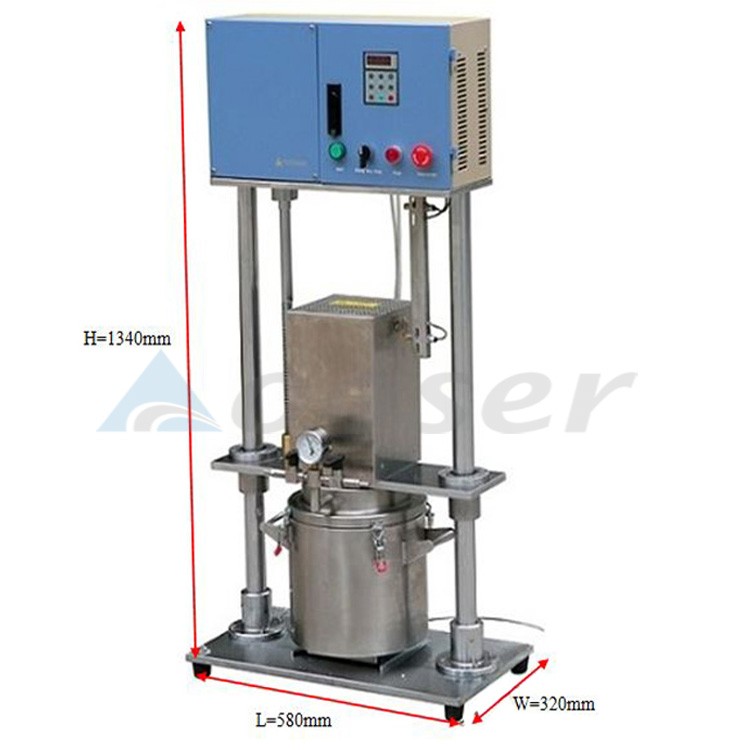

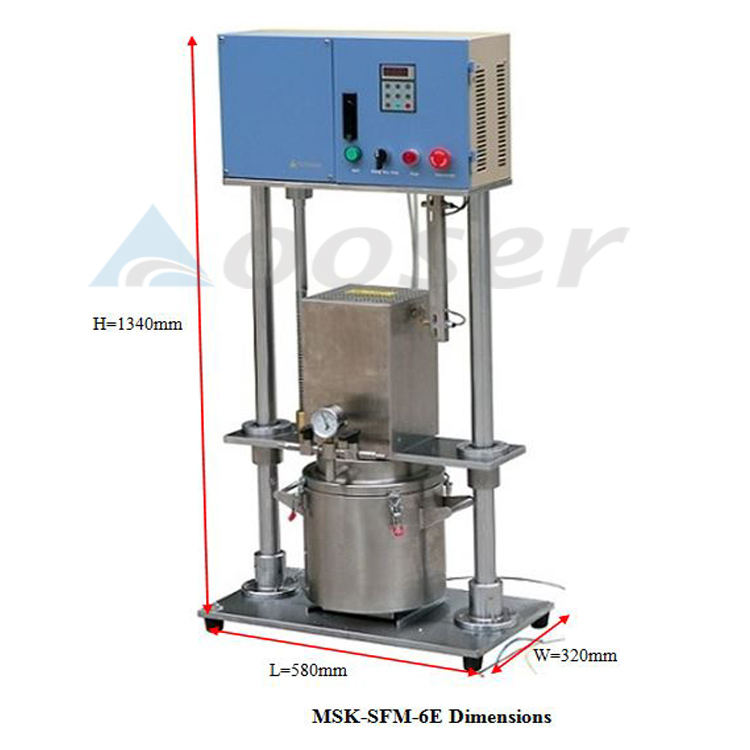

Dimensions	580mm(L) x 320mm(W) x 1340mm(H)
Net Weight	119 kg (262 lbs)
Warranty	One year limited warranty with lifetime support
Origin	China
