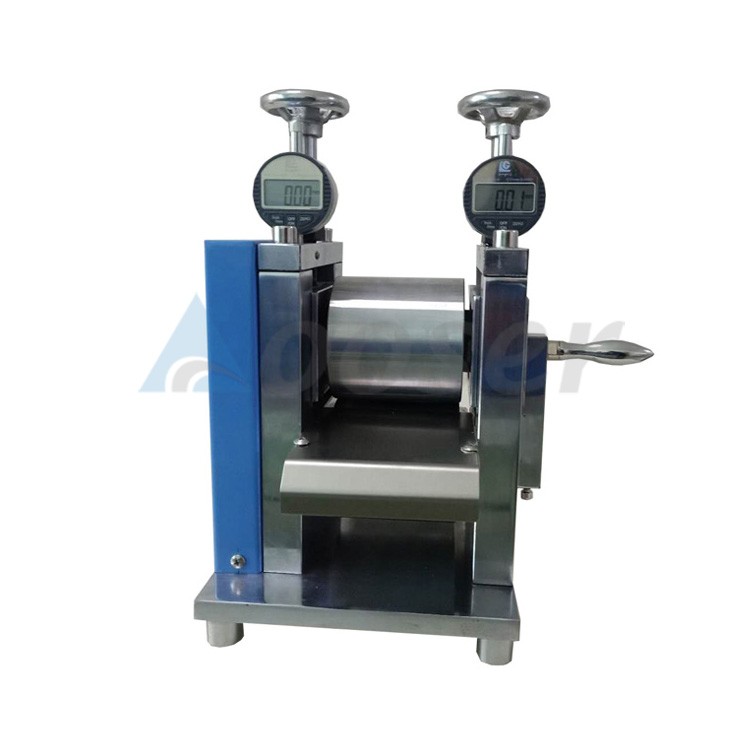

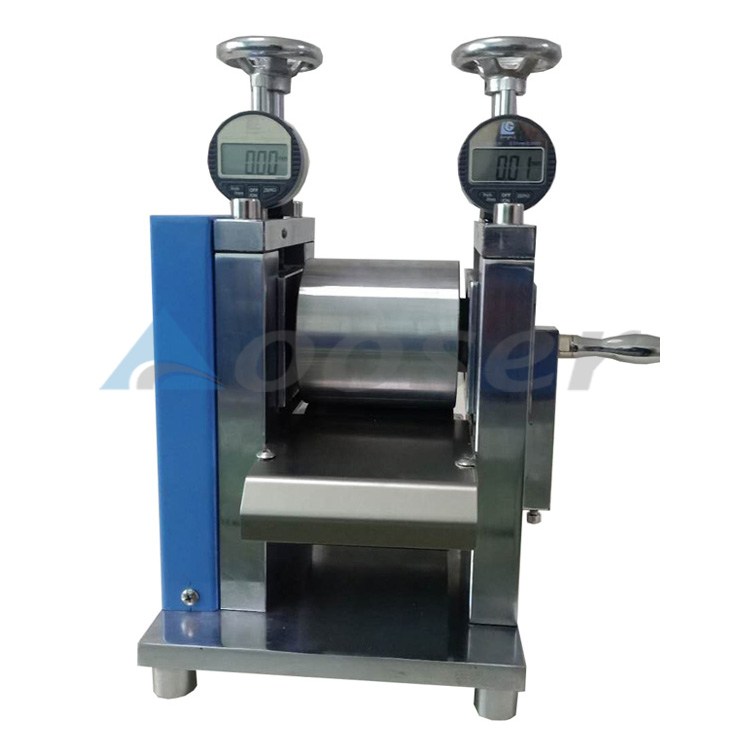

Vertical Manual Rolling Press Machine For Battery Electrode Calendering

Model: AS-RP-100V

Rolling width: 100mm(Can be customized)

Origin: China

Warranty: 2 Years

Description: AS-RP-100V Small wide roller press machine is mainly for manual rolling of battery electrode sheet in the lab, suitable for a small number of metal sheets materials.

Vertical Manual Rolling Press Machine For Battery Electrode Calendering

This manual rolling machine is mainly used for manual rolling of battery materials of a small amount of precious metals such as gold, silver, copper, aluminum and other nonferrous materials in the laboratory. Adopting gear transmission to realize the roll pressing, this rolling press machine thickness can be adjusted, easy to operate, Especially suitable for thinning and increasing the density of lithium battery plates.

Specification:

Of the Laboratory Small Manual Roller Press Calendering Machine with Dual Rollers for Lithium Battery Electrode:

Model	Vertical Manual Rolling Press Machine AS-RP-100V
Roller diameter	2~Φ100mm
Roller surface hardness	>HRC60
Rolling width	0~100mm / 0~200mm (can be designed according to your requirement)
Rolling thickness	0~3mm
Net weight	50KG
Compliance	CE Certificate
Warranty	Two Years limited warranty with lifetime support
