Model: DZF-6090 Vacuum Drying Oven
Origin:China
Power: 1400 W
Delivery time: 10-30 days

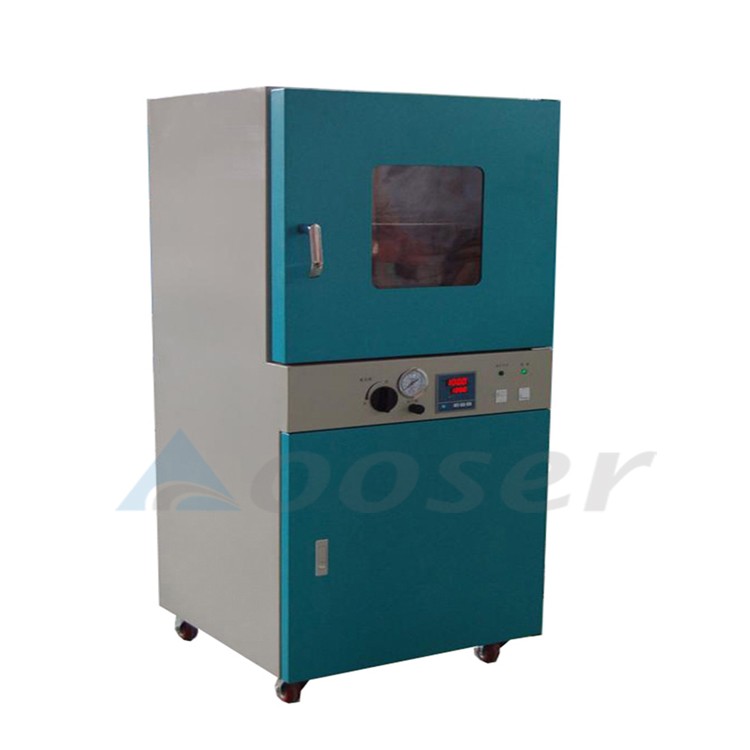

DZF-6090 Vacuum Heating Drying Oven of 90L Chamber
Description:
1.The Cuboid Studio achieves the maximum of effective volume,and the temperature control is precise and reliable by microcomputer temperature controller. With tempered bullet-proof double glass door, easy to observe the studio at a glance.
2.The airtightness of the chassis door can be adjusted by the user at will. The overall shape of the door is sealed with silicone rubber strips to ensure a high vacuum degree.
3.The Chamber is made of stainless steel (or wire-drawing sheet), which ensure durability.
4.The storage, heating, experimentation, drying will be implemented in the environment without oxygen or filled with inertia gas. Therefore it will not be oxidized.
5.Minimum heating time 50% less than traditional vacuum oven.
Specification:
|
Model |
DZF-6090 Vacuum Drying Oven |
|
Source voltage |
AC220V 50HZ |
|
Power |
1400W |
|
Warranty |
One Year Limited Manufacture Warranty with Life Time Support |
|
Temperature range |
RT+10-250℃ |
|
Temperature fluctuation |
0.1℃/±0.5℃ |
|
Vacuum degree |
-0.1MPa |
|
Inner box size(L*W*H) |
450*450*450mm |
|
Dimension(L*W*H) |
615*590*1470mm |
|
Temperature controller |
1 High precision microcomputer temperature controller, accurate temperature control 2 Working temperature can be set and working time can be set for 0-9999min. 3 When time reach, sound alarm, and when any error, also alarm. function |
|
Inner box material |
304 stainless steel |
|
Outside shell material |
High quality cold-rolled steel plate electrostatic spray |
|
Box door |
Toughened bulletproof double glass door |
|
Safety device |
With over temperature protection, grounding etc |
|
Shelf |
2 or3pcs 1. Solid stainless steel shelf, guarantee the oven temperature 2. Mesh stainless steel shelf can be also chosen |
|
Ambient temperature |
+5~40℃ |
Package list:
|
Item |
Qty |
|
Vacuum Drying Oven |
1 set |
|
Customized Power Plug |
1 piece |
|
Shelf |
2 or 3 pcs |
|
English Operating Manual |
1 book |
