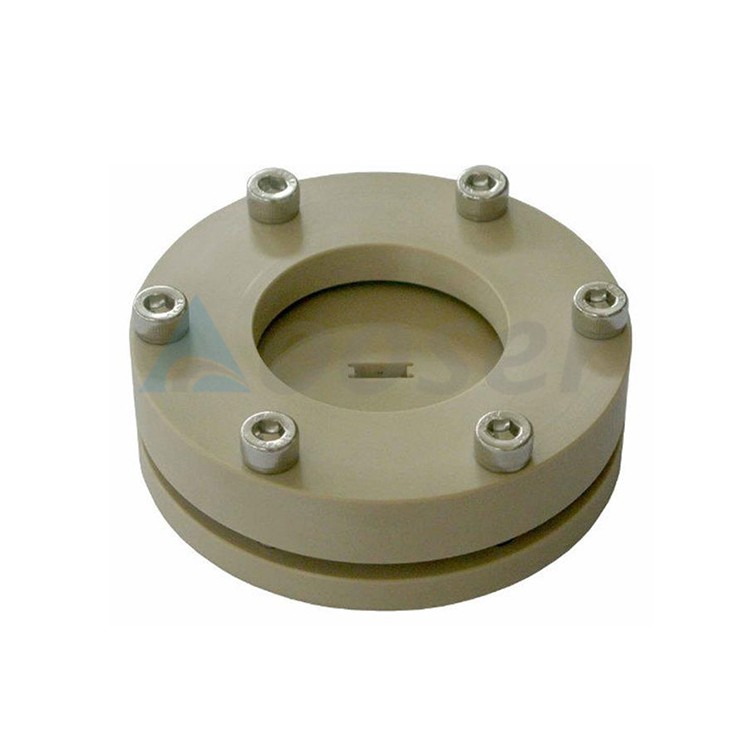

Quartz Window Split Cell For In-Situ Optical Microscope Analysis Of Battery Electrode Interface

Modal: AS-QW-SCI

Cell Materials: PEEK

Origin: China

Warranty: 1 Year

Description: AS-QW-SCI is a separable in-situ battery made of PEEK material (polyether ether ketone) and quartz window (diameter 38.1mm) optical microscope.

Quartz Window Split Cell For In-Situ Optical Microscope Analysis Of Battery Electrode Interface

Description:

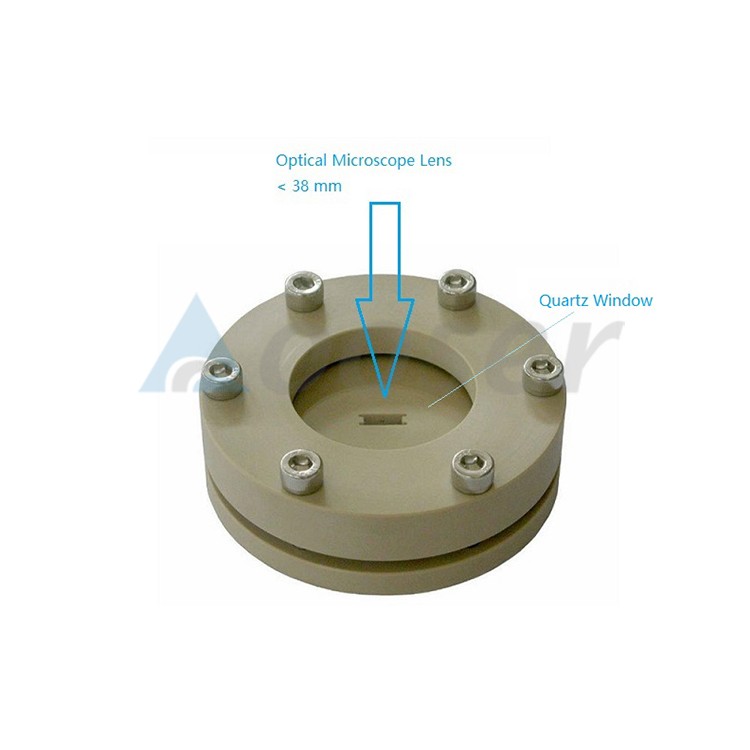

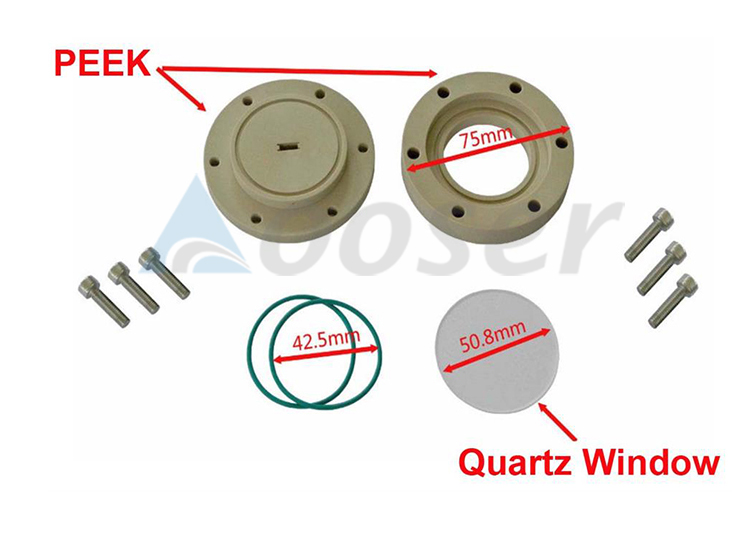

AS-QW-SCI split test cell is a separable in-situ battery made of PEEK material (polyether ether ketone) and quartz window (diameter 38.1mm) optical microscope. The lens can contact the quartz window, and the change of material microstructure and dendrite growth can be detected by the optical microscope in the process of charge and discharge. Such a cell can be used for different kinds of electrodes and separators and test the electrodes easily and quickly.

Specification:

Cell Material	PEEK (Poly Ether Ether Ketone), which is a semicrystalline thermoplastic with excellent mechanical and chemical resistance properties that are retained to high temperatures.

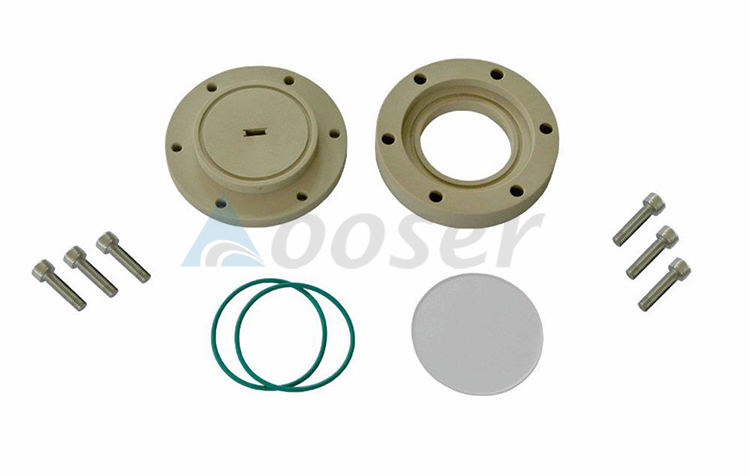

Features	1. Sealed by electrolyte corrosive-proof FKM O-rings. 2. Small enough to be put in and taken out from a glove box. 3. Easy to separate and clean after testing. 4. Use an optical microscope to see in-situ dendrite grow

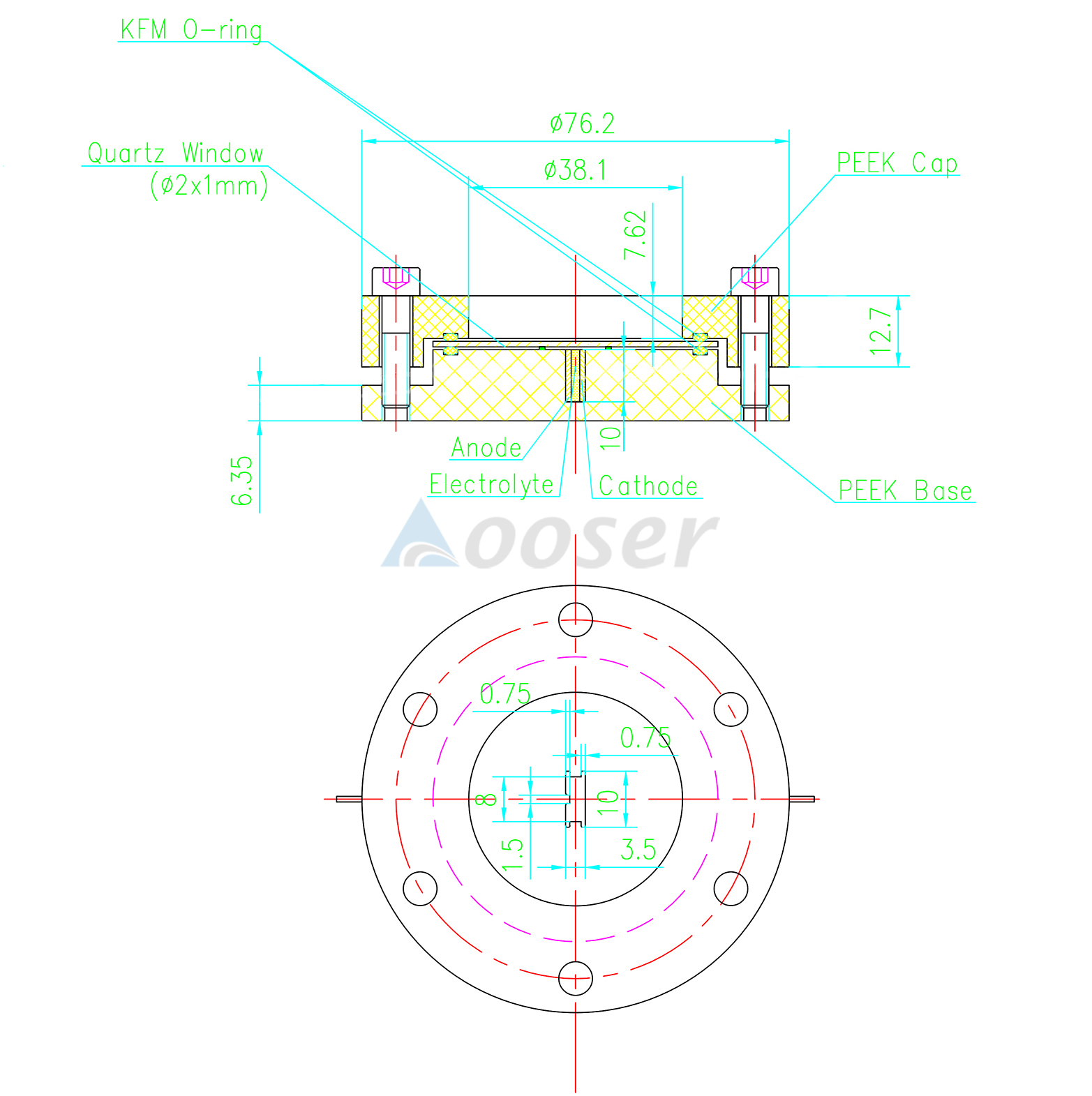

Quartz Observation Window	Diameter = 38.1mm Thickness = 1.00 mm
Application Notes	For better in-situ observation, electrode material shall face the window. you may use lab press and dry pressing dies below to prepare an electrode pellet instead of using electrode coated Al or Cu foil.
