  • Lab 200C Hot Roller Press Machine for Lithium Battery Electrode

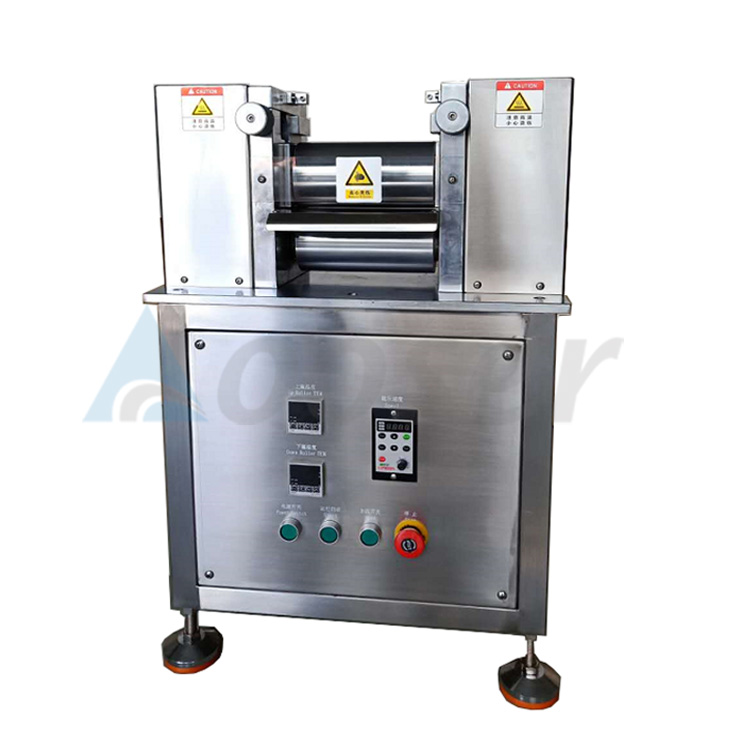

Lab 200C Hot Roller Press Machine for Lithium Battery Electrode

Lab 200C Hot Roller Press Machine for Lithium Battery Electrode

Power: 220V、3KW

Roller temperature: ~200°C

Pressure roll size: Φ100mm×200mm

Origin: China

EMAIL

Lab 200C Hot Roller Press Machine for Lithium Battery Electrode


Summarize:

This type of roller press is dedicated to small lithium electrode roller pressing process, using a single 220V power supply, suitable for universities and enterprises test line use. The heated roller mill is specially designed for material researchers, suitable for manual rolling of battery materials in the laboratory, a small amount of precious metal materials such as gold and silver, and nonferrous materials such as copper and aluminum. The rolling thickness can be adjusted and the operation is simple. It is especially suitable for thinning and increasing the density of lithium battery plate of clean energy material.


Working principle:

The equipment is driven by the deceleration motor to drive the high hardness roller, which mechanically adjusts the gap of the roller to press the pole sheet and increase the density of the pole sheet.


Loss-wearing parts distribution, 1 switch button, a heating pipe.


Specification:

Power

220V、3KW

Roller temperature

~200°C

Pressure roll size

Φ100mm×200mm

Horizontal arrangement of rolling roll

weight

About 105kg

Pressure roller surface hardness

HRC62

Roll cylinder

≤±2μm;Steel roller material imported 9CR2MO,temperature 200°C±10μm

Effective clearance

0-3mm adjustable; visual percentage table

working speed

Stepless variable speed, linear speed 0-4.0 m / minute adjustable

Roller finish


Work width

Maximum of 200mm

Quenched depth of roller surface

5mm

Maximum stress

5T


200C Hot Roller Press Machine
