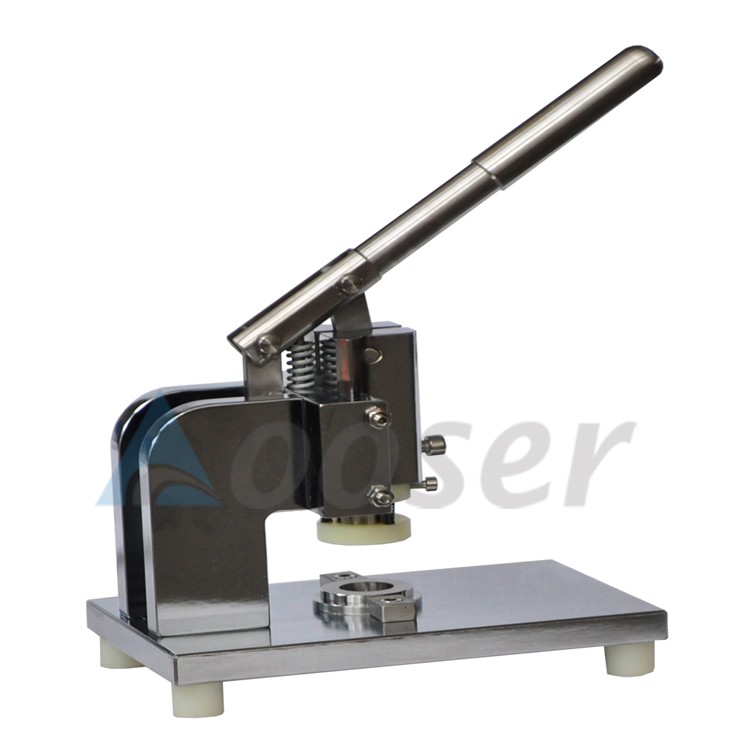

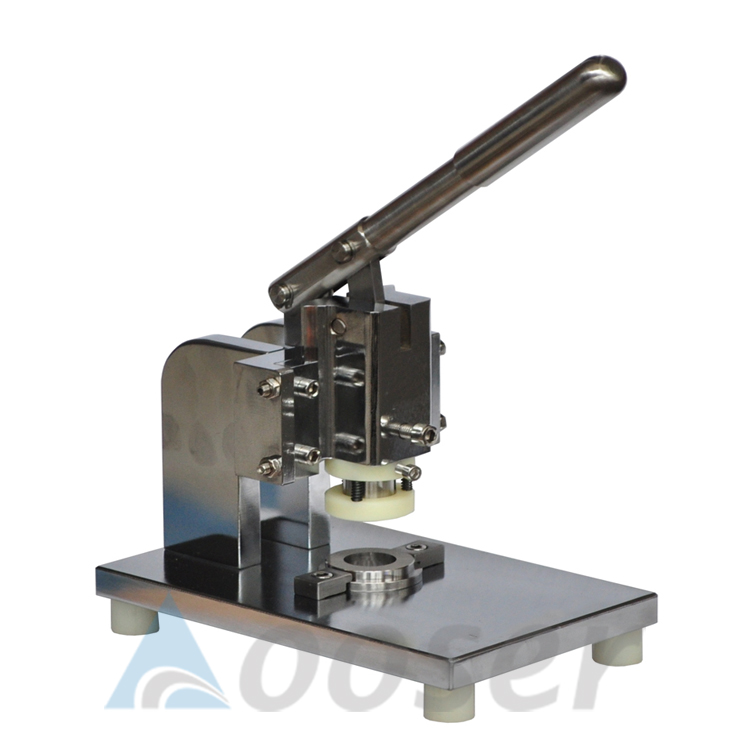

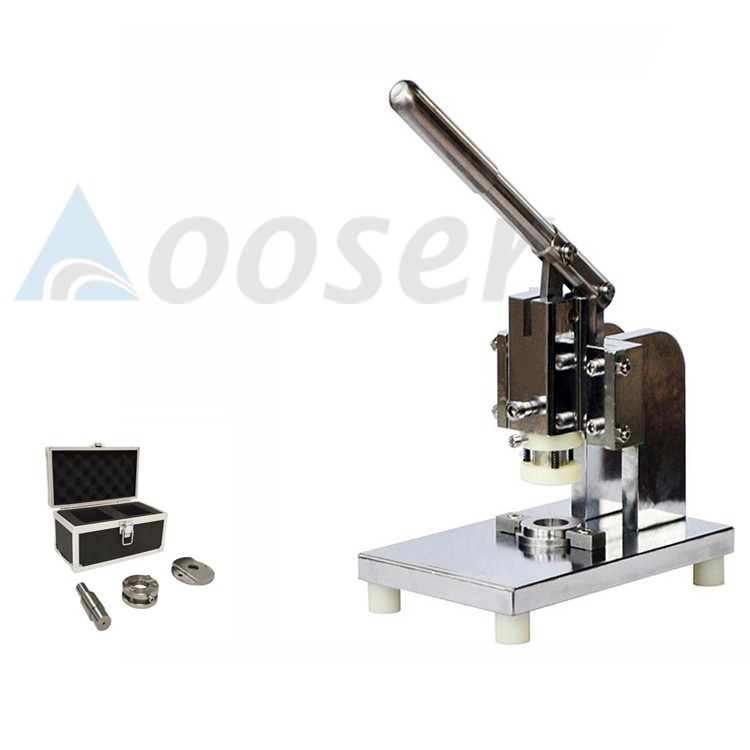

AS-MSK-07 Compact Precision Disc Cutter for Lab

Hole Diameter for mold insert

24mm

Cutting dies material

Hardened steel

Major structural material

Stainless steel

Cutting dies information

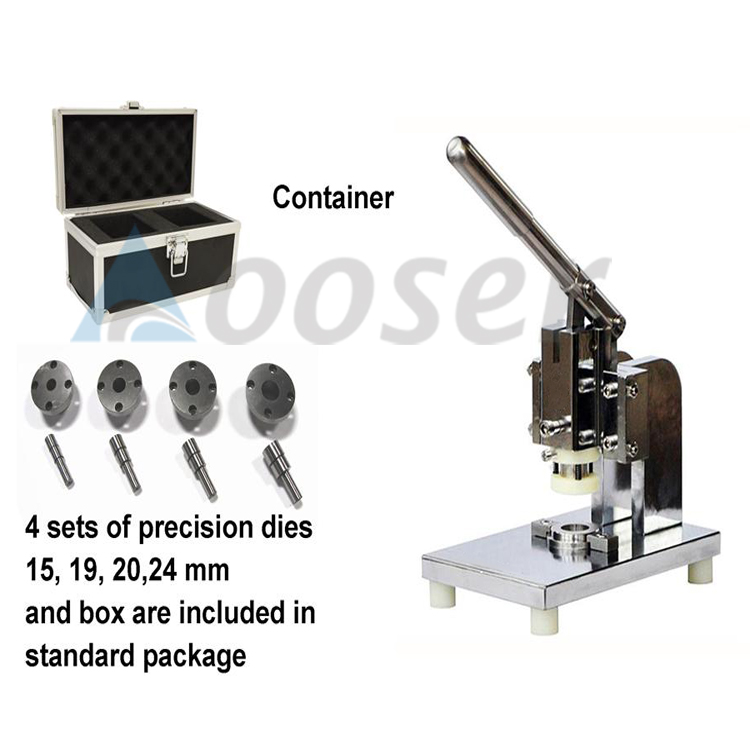

Four sets of cutting die: 15, 19, 20 and 24 mm diameter.

Product Dimensions

With handle: 140mm(L) x 220mm(W) x 338mm(H)

Without handle: 140mm(L) x 220mm(W) x 150mm(H)

Application Notes

If you are going to make CR2016, CR2025 or/and CR2032 coin cell batteries, you will need at least three cutting dies:

15mm (for negative side case, which is 16.5mm in diameter)

19mm (for positive side case, which is 20mm in diameter)

20 mm (for the separator to fully separate the electrodes in both negative and positive cases)

In order to cut thin separator,  please cut it together with an A4 paper for a better result

For CR2450 coin cells, a 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die can be used for cutting either electrode discs or separator discs

Separator discs must be large enough to fully separate the positive and negative electrodes to avoid short-circuit inside the coin cells

Warning: You must pay great attention to die change from one size to another. Misalignment will result in die damage. Please read the operation manual carefully when changing die.

Shipping Weight

30 lbs

Net weight

15 kg (33 lbs)

Origin

China

Warranty

One year limited warranty with lifetime support
