Model: AS-DB-100S
Material: Stainless Steel
Width: 100mm (Can be customized)
Accuracy: 0.003 mm
Coating Thickness: 0-3500 microns

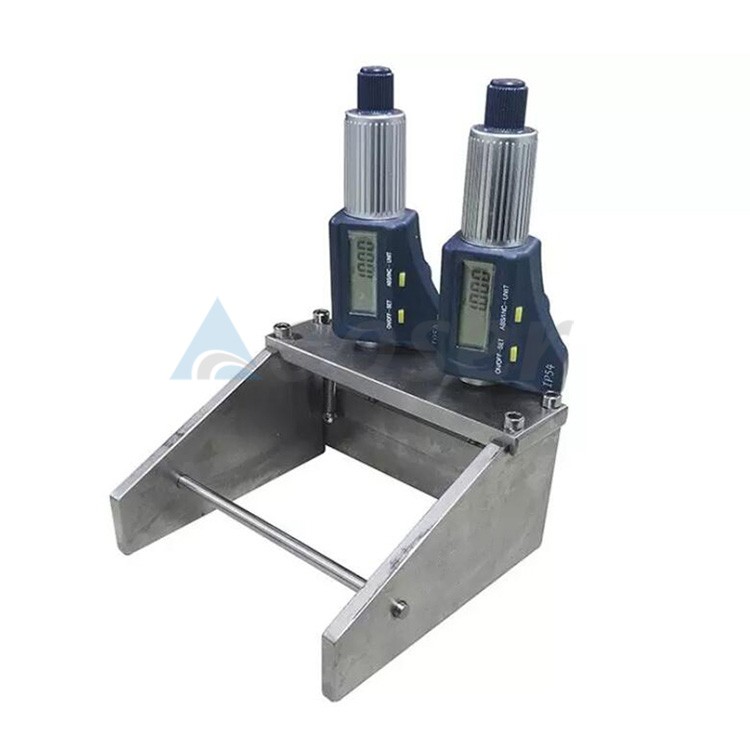

Film Casting Doctor Blade for Button Battery Lab Coating
Description:
Micrometer heads for knife blade adjustment, equipped with digital micrometer, the thickness adjustment is quite easy. This is a unique wet film applicator for lab coin cell battery electrode coating with low cost.
The operator sets the blade clearance by adjusting the digital micrometers. This is the excellent device to make good quality coated film for material research, to make ceramic tape casting, battery electrode sheets, and various coating at the lower cost.
Parameters:
Model |
Doctor Blade AS-DB-100S |
Features |
100 mm standard width Make wet film thickness between 0 - 3500 microns Micrometer head's controllable accuracy is 10 microns Made of SS304 stainless steel |
Application Notes |
Replacement springs are available for future maintenance, please contact us. |
Optional |
Upgrade to the digital micrometers for better accuracy, with customized doctor blade. Note that the for 100mm applicator, the two digital Micrometer Heads need to sit a little angle due to the width.
NOT naturally compatible film applicator, but could customize our film applicator width above 100mm to fit. Please email us first to order customized doctor blade, the separate orderwill notfit. |

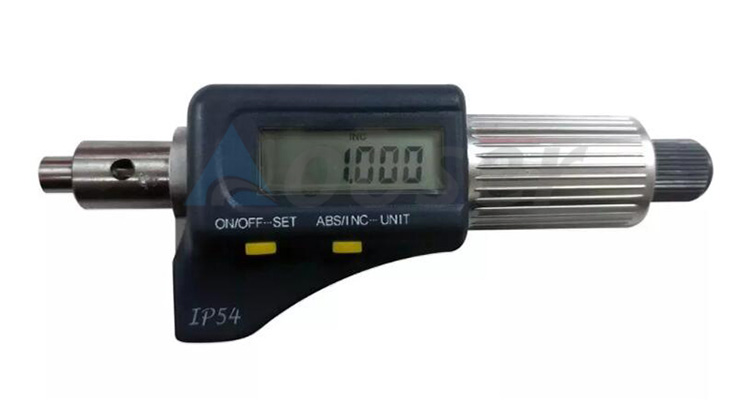

Digital Micrometer
Specifications
|
Digital Micrometer Head 1" Travel Reads to 0.001 mm (50 millionths of an inch) 0.003 mm accuracy Instant inch/millimeter conversion |
Warranty |
1 Year with life time support |
