  • Coin Cell Four Side Wet Film Coating Applicator for Lab Research
  • Coin Cell Four Side Wet Film Coating Applicator for Lab Research
Coin Cell Four Side Wet Film Coating Applicator for Lab ResearchCoin Cell Four Side Wet Film Coating Applicator for Lab Research

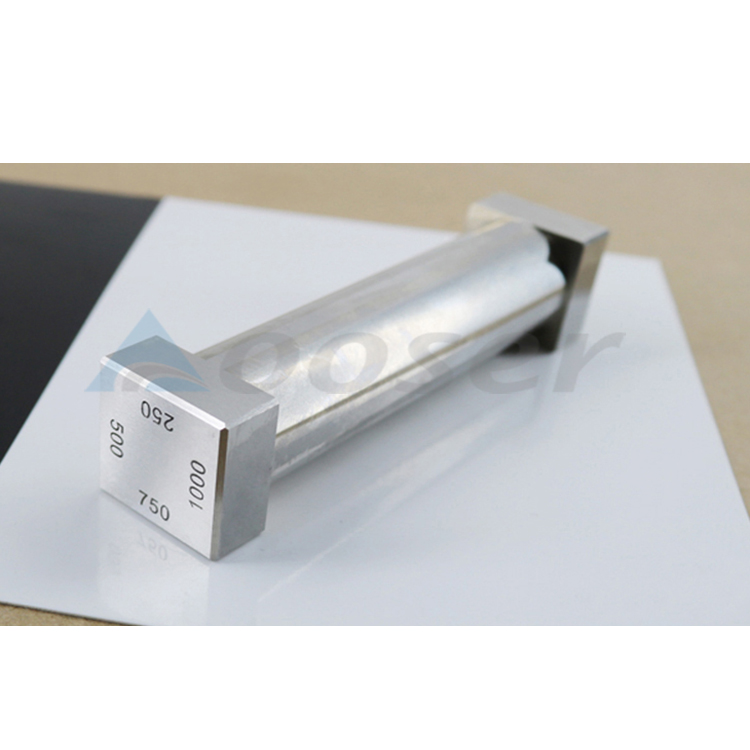

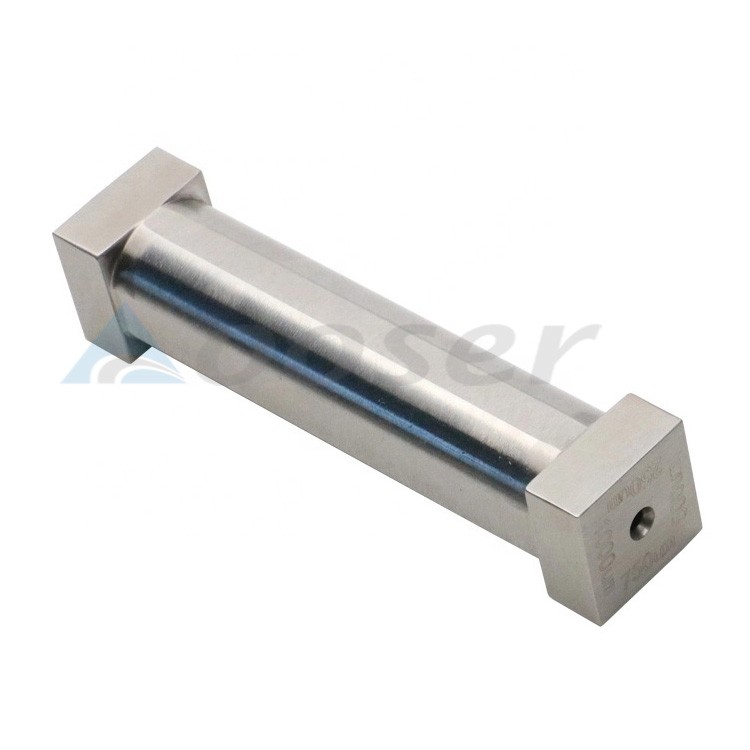

Coin Cell Four Side Wet Film Coating Applicator for Lab Research

Name: Wet Film Applicator

Material: Stainless steel abrasion resistant material

Hardness: HRC55±2

Effective width: 80mm

Origin:China

EMAIL

coin cell Four Side Wet Film Coating Applicator for Lab Research


Deacription:

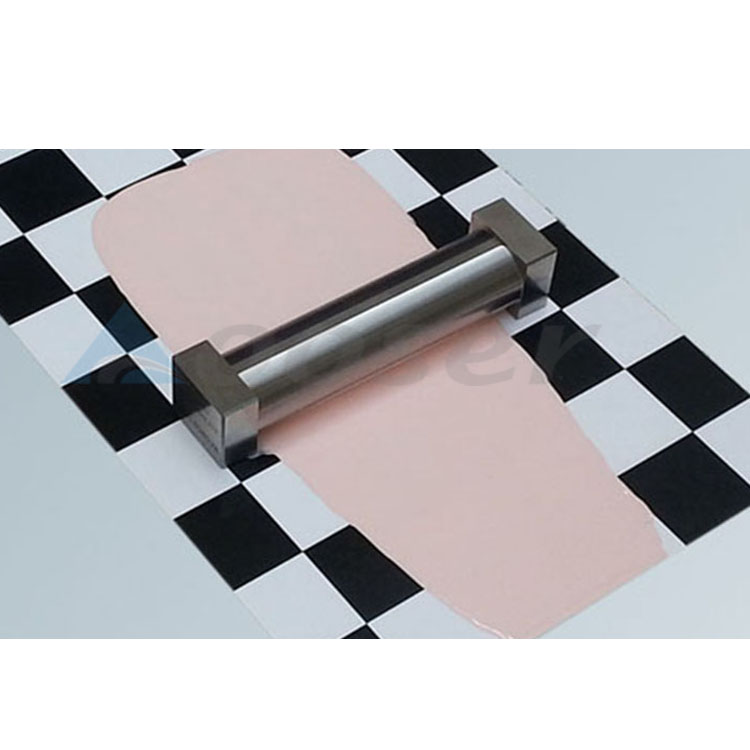

1. Four side coating device is specially designed for being used in the substrate flat top uniform coating of paint, adhesive and similar products.

2. Multi slot coating is the diversity of choice and the fixed groove evaporator precision combined in one instrument. Suitable for water, acid and alkaline products.


Material: Stainless steel abrasion resistant material

Hardness: HRC55±2

Effective coating width : 80mm, Total width : 100mm (other coating width can be customized)

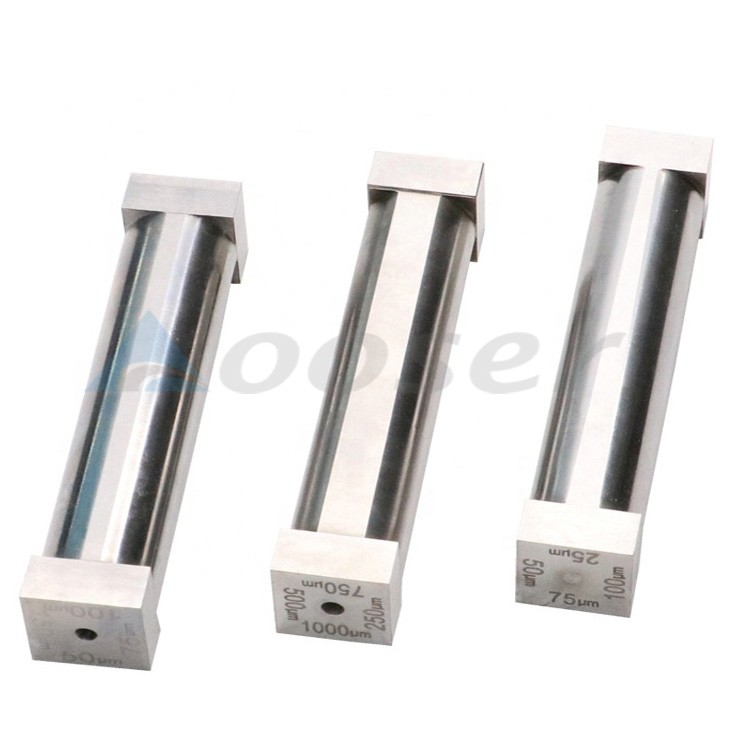

The coating thickness for your choice:

K01:(5um、10um  、15um、20um)

K02:  (10um、15um、20um、25um)

K03:  (25um、50um、75um、100um)

K04:   (50um、100um、150um、200um)

K05:   (30um、60um、90um、120um)

K06:   (100um、200um、300um、400um)

K07:   (50um、75um、100um、150um)

K08:   (100um、150um、200um、250um)

K09:   (250um、500um、750um、1000um)


Recommendation:

For lithium battery laboratory studies, we usually use the K04 or K08 with thickness 150um or 250um.
