  • Compact Small Tape Casting Coater with Vacuum Bed and Heating Function Machine
  • Compact Small Tape Casting Coater with Vacuum Bed and Heating Function Machine
Compact Small Tape Casting Coater with Vacuum Bed and Heating Function MachineCompact Small Tape Casting Coater with Vacuum Bed and Heating Function Machine

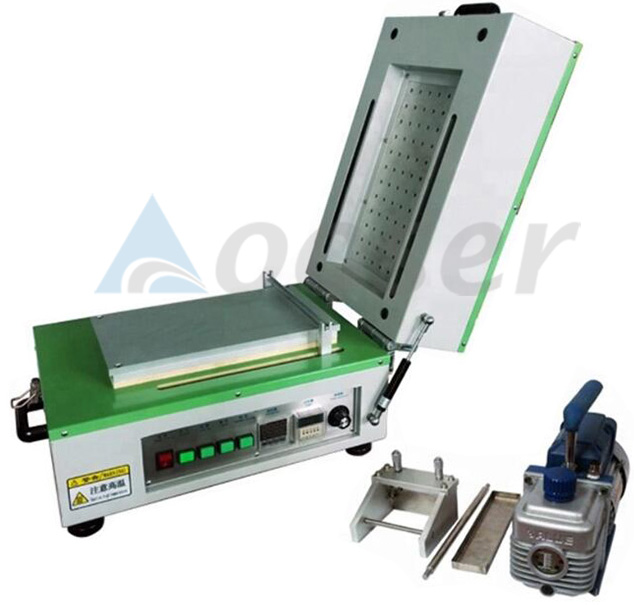

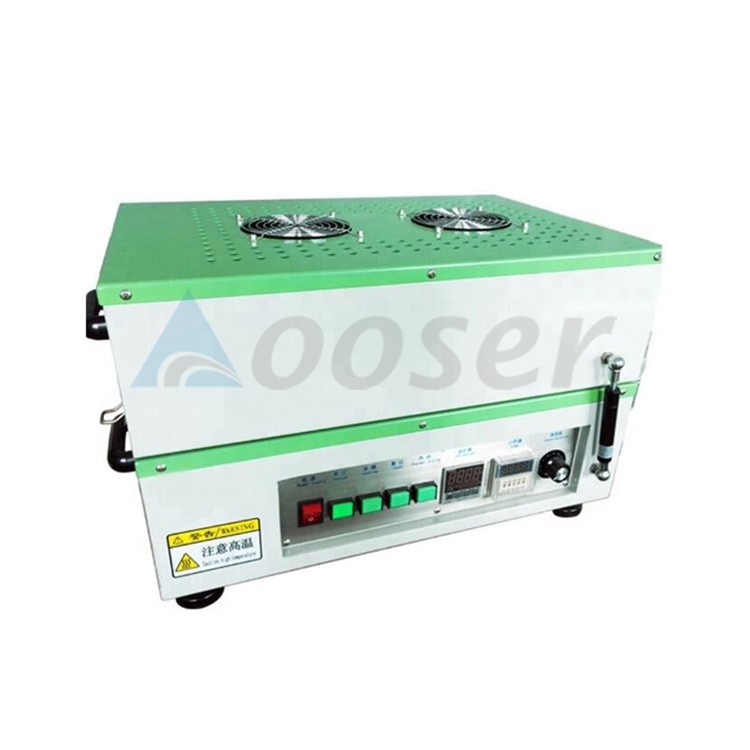

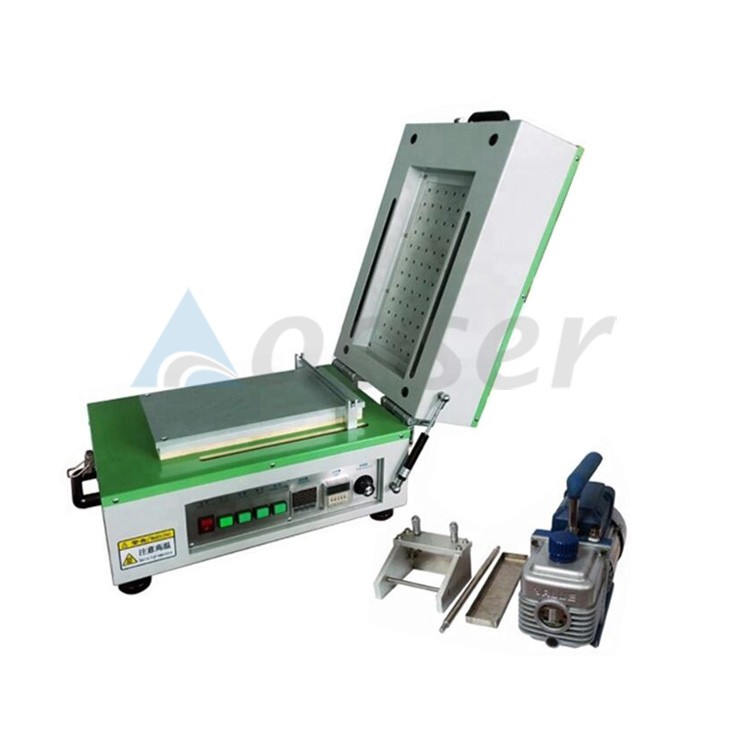

Compact Small Tape Casting Coater with Vacuum Bed and Heating Function Machine

Model:AS-VTC-200

Weight:50kg

Warranty: 2 Years

Vacuum Board Material:Aluminum alloy

Description:AS-VTC-200 is designed for producing coated films with consistent thickness.

EMAIL

Compact Small Tape Casting Coater with Vacuum Bed and Film Machine


Advantage:

It has a unique driving system to produce smooth coating on many types of materials. The flat vacuum chuck is built in to aluminum plate, easy for placing and moving out the foils or electrodes. One 100 mm width (other width optional) adjustable micrometer applicator (doctor-blade) and an oilless vacuum pump are included for immediate use. Heating cover with digital temperature controller can dry films after coating up to 150C with a temperature accuracy of +/-1C. This equipment can be used for researches on Li-Ion battery electrode coating and ceramic tape castings.


Specifications:

Model

Tape Casting Coater with Vacuum Chuck AS-VTC-200

Voltage

AC220V/50Hz

Power

650W

Coating Speed

0~100mm/s is adjusted

Maximum Stroke Length

250mm is adjusted, can be customized

Platform

1. Aluminum alloy flat vacuum chuck

2. Vacuum chuck dimensions:365mm(L)*200mm(W)*30mm(H)

Maximum Stroke Width

200mm, can be customized

Thickness Adjustment Range

0.02-3mm

Film Applicator

1. One 100 mm width micrometer adjustable film applicator is included, with adjustable thickness from 0.01mm~3.5mm

2. Traverse pusher is included for pushing the doctor blade to ensure constant speed coating

Heating Dry System

RT-150°C, Digital temperature controller

Temperature Control Accuracy

±1°C

Vacuum Board Material

Aluminum alloy

Vacuum Board Size

L365mm×W200mm×H30mm

Whole Device Size

L470mm×W310mm×H330mm

Vacuum Pump

Vacuum pump is included

Weight

50kg

Warranty

One year limited manufacture warranty with lifetime support

Accessory

1. One oil-less vacuum pump is included for immediate use

2. One 100mm width micrometer adjustable film applicator is included


Presentation:

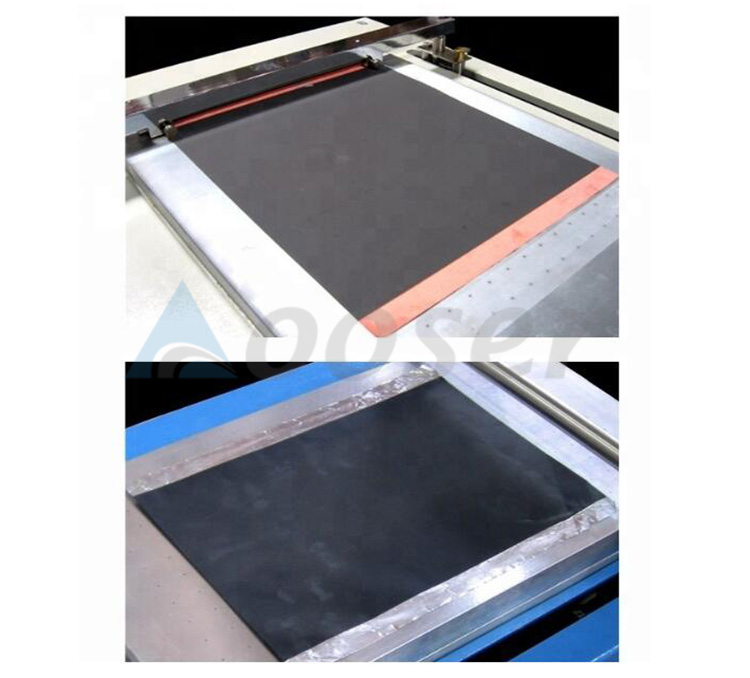

Presentation of coater machine


Compact Tape Casting Coater with Vacuum Bed and Film Machine
