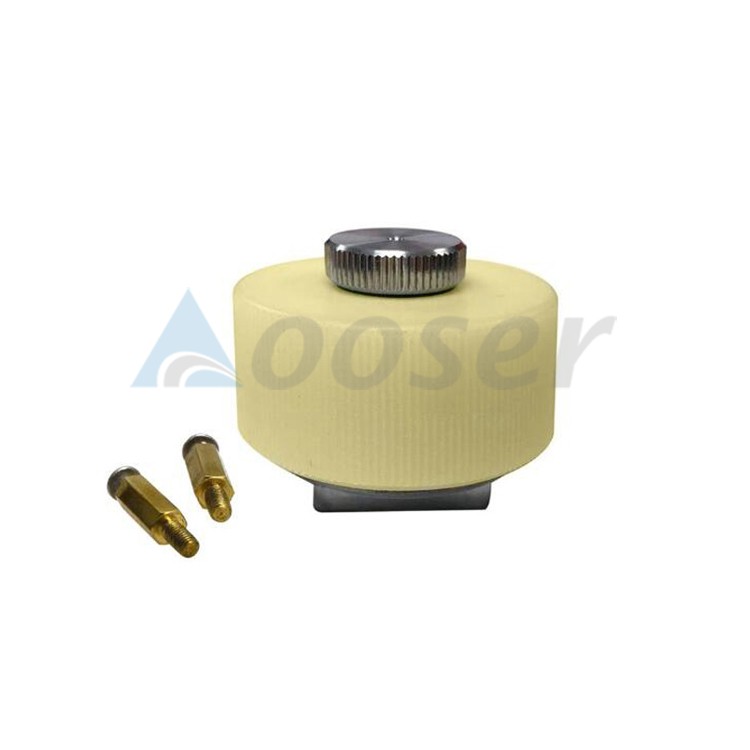

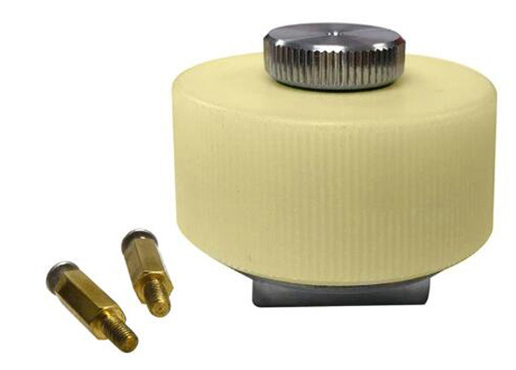

Quick Assembly Split Coin Cell for Testing Lithium Battery Materials

Structure & Features

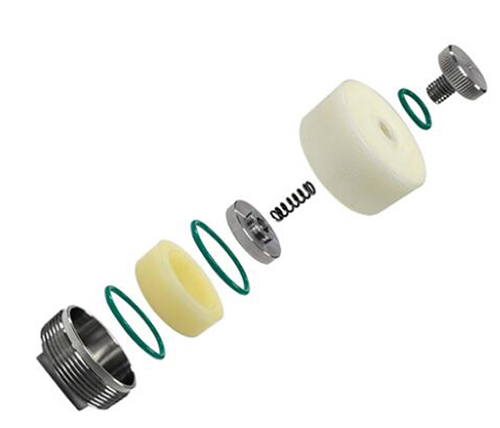

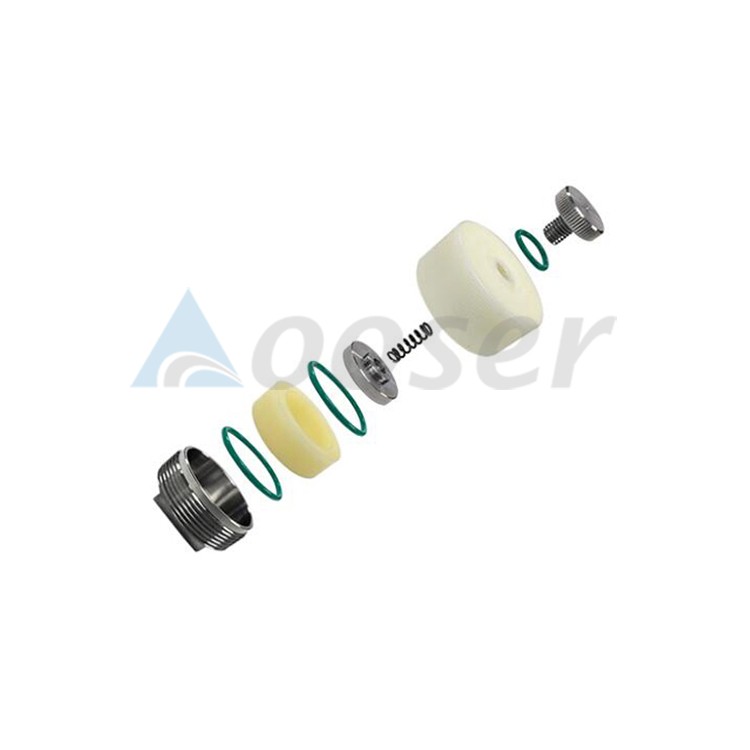

Easy cell assembling by "thread-in" the bottom contacting plate and top plunger into the Nylon body.

Stainless Steel contact plate and plunger. (Copper made contact plate and plunger are available with extra cost)

PTFE made sealing gaskets and Nylon body can well resist the chemical corrosion from electrolyte

Air-tight design ensures zero electrolyte leakage

Easy to separate and clean after use

Same functionality as "Swagelok Type Cell" but with more size options for electrode and separator.

Spacer inside the test cell to press down on the electrode and prevent the electrode from curling

Directly clamp on battery analyzer without wire connection for quick testing

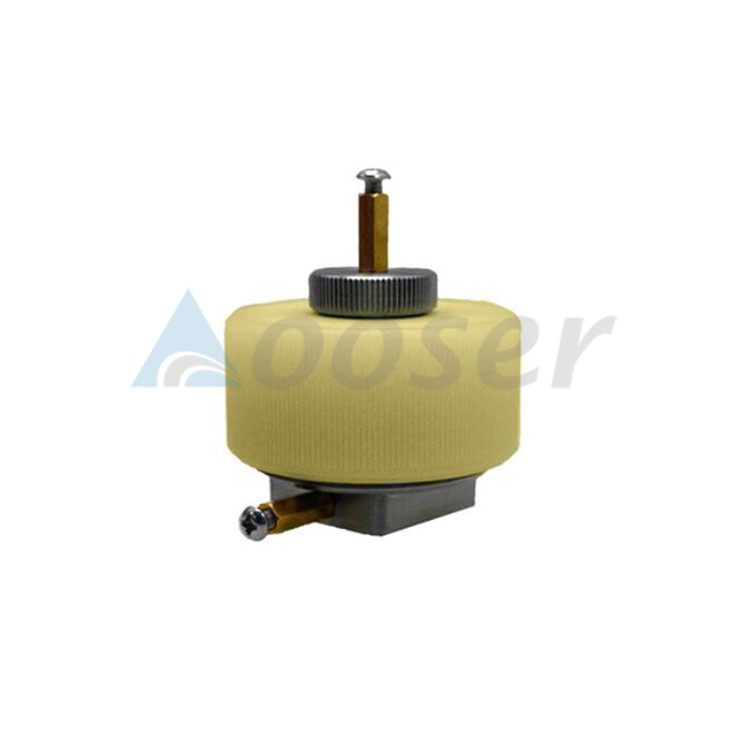

Extending rod included for each electrode

Electrode Dia.

Standard 20mm ID

Insertion Thickness

max. thickness of the material can be inserted is upto 6mm

Working Temperature

Max. 100 ºC

Electrode Contact Coating (Optional)

Anti-corrosive Au coating on the base contact plunger and inserts is available upon request
