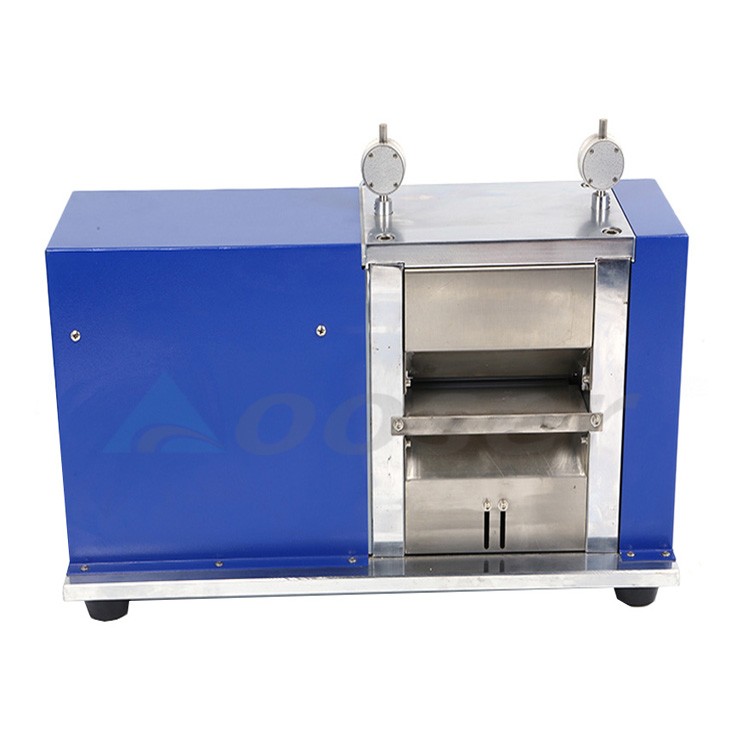

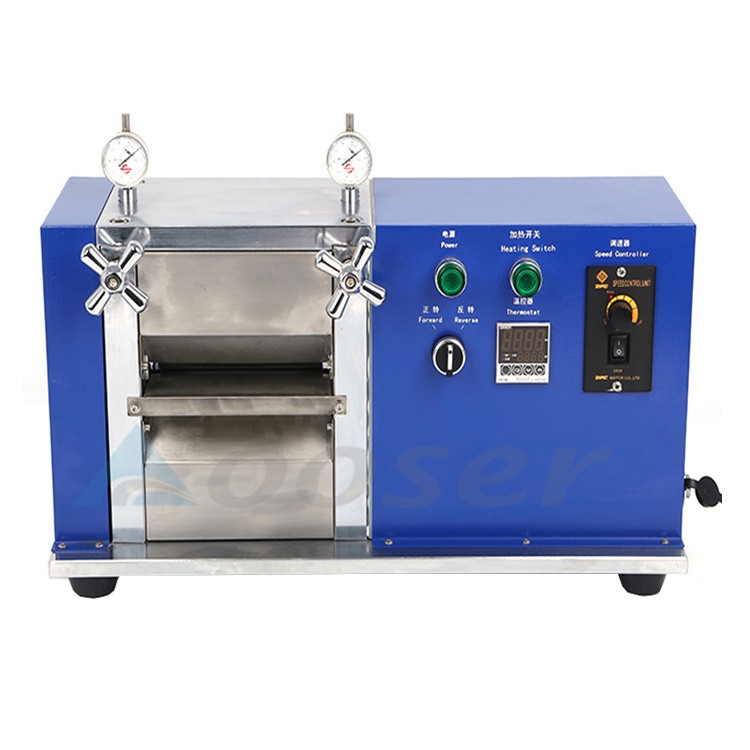

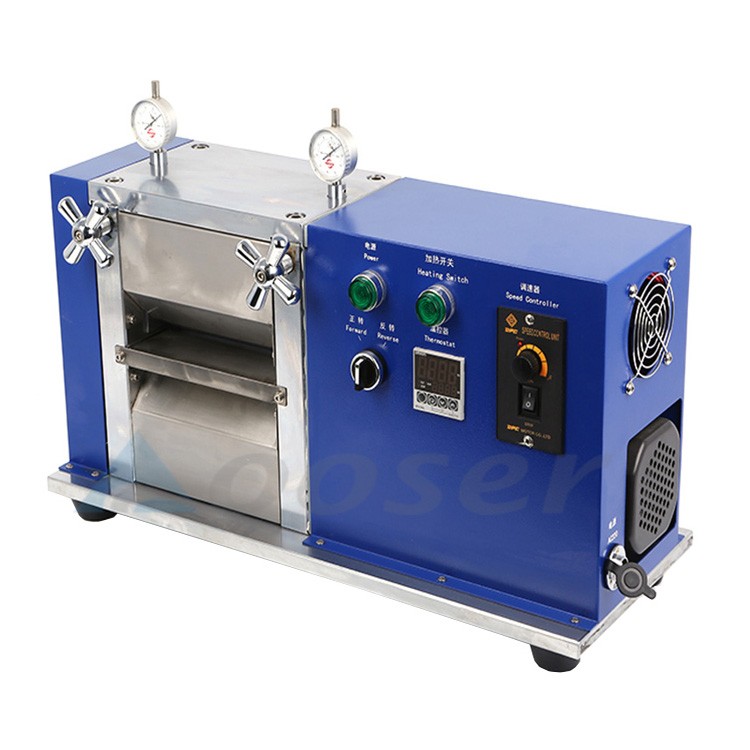

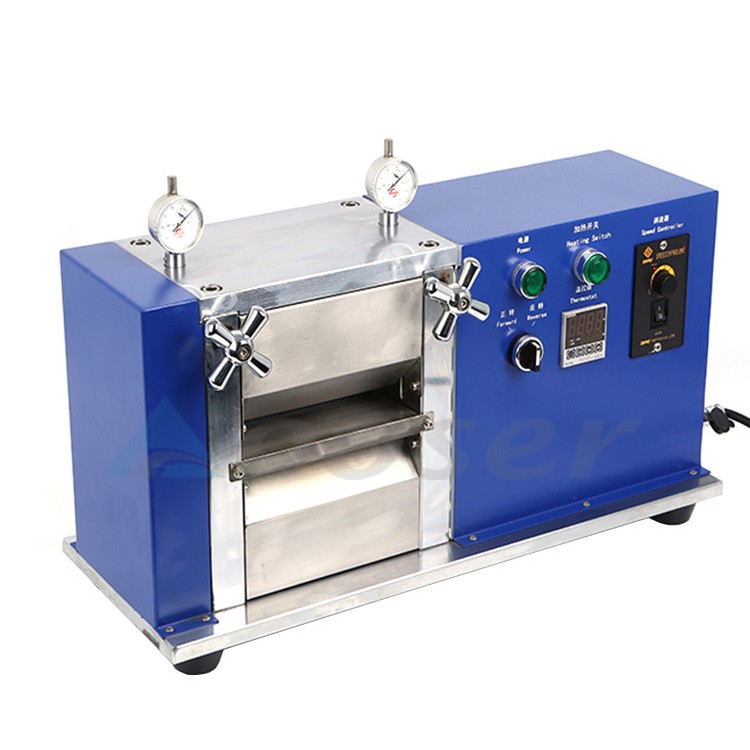

HPR-100 Hot Roller Press Machine for Lab Battery Electrode Sheet

Model: AS-HRP-100

Roller width: 100 mm

Application: Battery Sheet Pressing

Weight: 60 KG

Origin: China

AS-HPR-100 Hot Roller Press Machine for Lab Battery Electrode Sheet

Features :

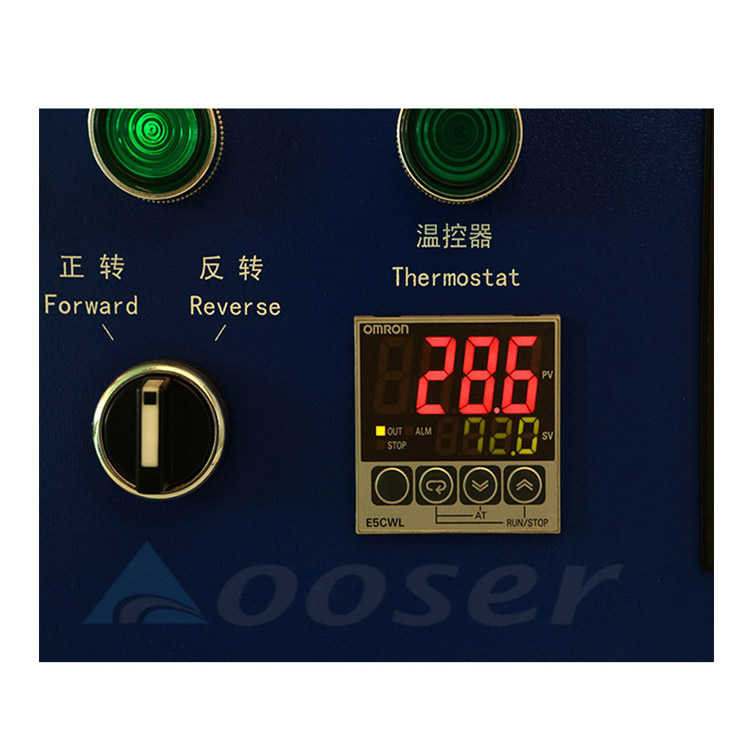

1. Heat rolling and temperature can be regulated & digital displayed.

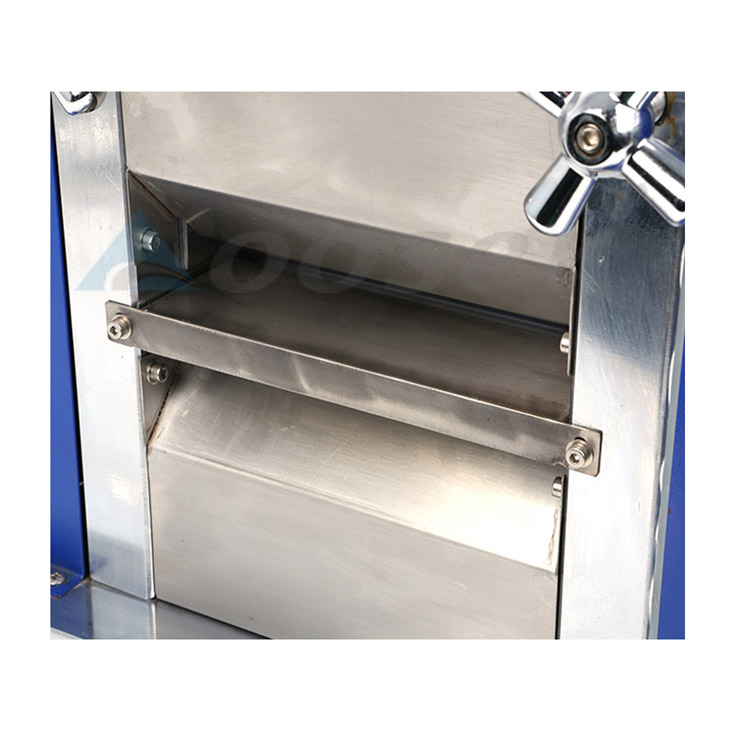

2. Rolling hardness is high,and the surface plated by chrome treatment that hardness can reach HRC 62 and anti-rust.

3. Thickness and speed can be regulated.

4. Electric rolling makes automation.

5. Install transparent protection plates for safety use.

6. Vertical design for convenient feeding and pressing of strip and piece materials.

7. Use gear engagement to accomplish rolling press.

8. Small dimension, convenient and operation, flexible and quick use.

Specification:

Lithium ion battery electrode calendering machine, hot roller press AS-HRP-100
Item Name	battery material hot presser
Roller diameter	2-Φ96mm
Roller hardness	HRC62
Roller finish	Ra > 0.8
Pressing thickness	0-2mm, adjustable
Pressing sheet width	0-100mm
Roller placing	vertical placed
Rolling temperature	Room temperature to 120℃, adjustable, with digital display
Operating method	Electrical
Voltage and Frequency	AC 220V/50Hz
Power	750W
Feeding Speed	0-40mm/s
Dimension	L650mmW260mmH340mm
Weight	60KG
Origin	China
Warranty	One year limited time with life time support

hot roller press machine

hot roller press machine with thermostat
