Heat Sealer Sealing Machine Suited For Pouch Cell Cases Sealing of Laminated Aluminum Film

Heat Sealer Sealing Machine Suited For Pouch Cell Cases Sealing of Laminated Aluminum Film

Model: AS-PHS-200

Origin: China

Warranty:One Year limitedwarranty with lifetime support

Application: Battery Case Sealing

Description: Compact heating sealer for sealing aluminum-laminated films during pouch cell case preparation in laboratory and battery factory.

Heat Sealer Sealing Machine Suited For Pouch Cell Cases Sealing of Laminated Aluminum Film

Description:

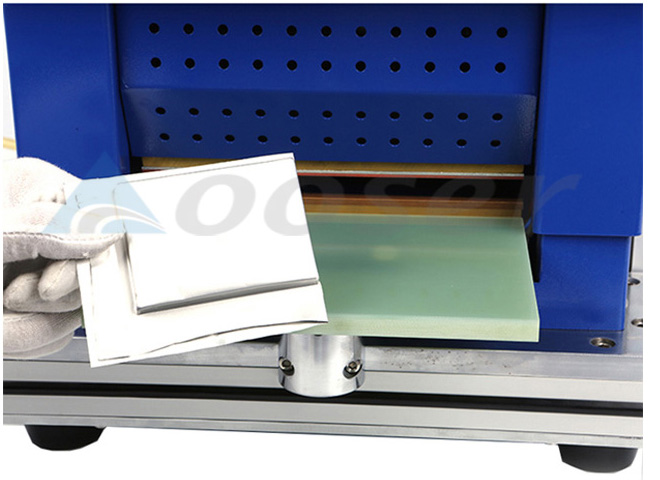

1. Battery heat sealing machine is a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.

2. The battery heat sealing machine adopts soft sealing bar, The sealing is copper in bottom and aluminum and Silicone rubber piece on top. So it can be used for both top and side sealing for pouch cell.

3. It can prepare the pouch cell for the injection of electrolyte by sealing the side and top of the pouch cell with tab.

Parameters:

Model	Heat Sealing Machine AS-PHS-200 for Lithium Polymer Battery
Power Supply	220V 50Hz ( 110V is available request )
Sealing Length	200 mm Max.
Sealing Width	5 mm (3-10mm)
Sealing Thickness	0.15 - 0.3 mm
Max. Power	500W
Sealing Pressure	0.5 - 0.7 MPa adjustable
Sealing Temperature	RT-250degree centigrade, adjustable
Heating Timer	0 - 99 Seconds Adjustable
Warranty	One Year limitedwarranty with lifetime support
Product Dimensions	430mm(L) x 330mm(W) x 480mm(H)
Net Weight	35kg
Sealing blade type	Soft sealing blade (Copper sealing blade with aluminum and Silicone rubber piece, good for Al film case sealing and case with tab in between, suitable for both top sealing and side sealing)
