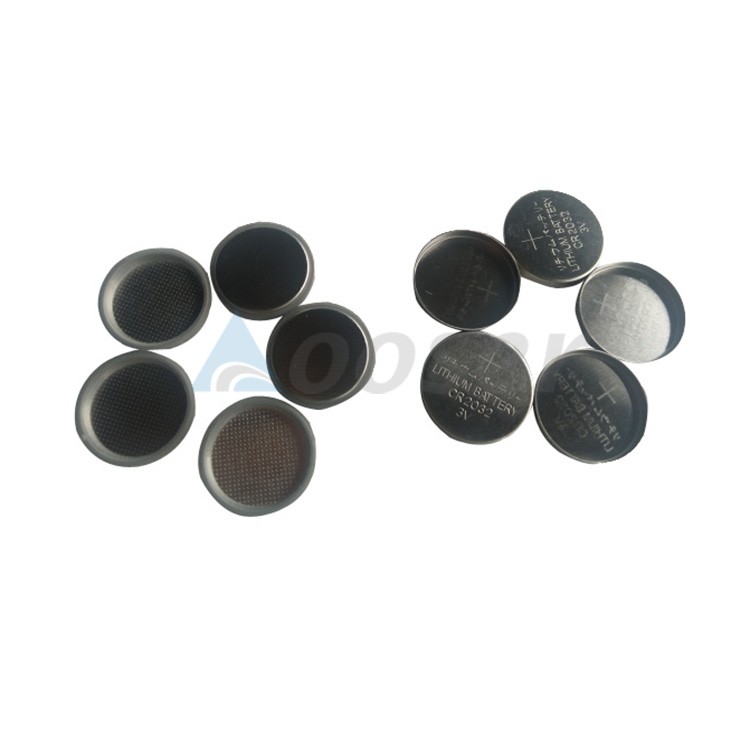

SS316 304 Stainless Steel CR2032 CR2025 CR2016 Coin Cell Cases for Button Batteries

Model

Diameter/mm

Thickness/mm

CR2016

20

1.6

CR2025

20

2.5

CR2032

20

3.2

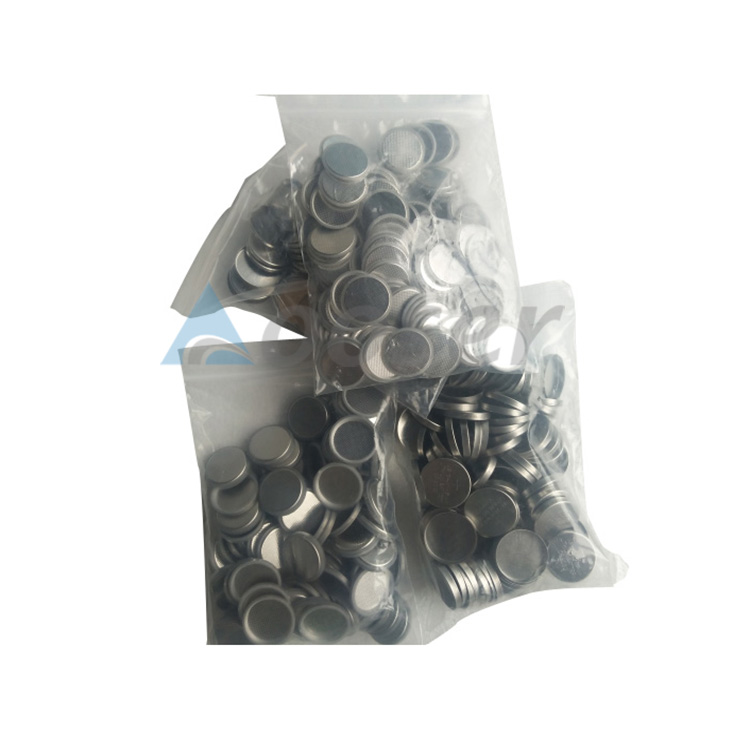

100 pairs of CR2032 button cell cases, made of 304 or 316 stainless steel with sealing o-ring. ( Qty discount )

Dimensions (Dia x Height)

20 mm x 3.2 mm

Weight

0.12 oz

Material

· Casing: SS304 or SS316.

· Sealing Gasket: PP

· The thickness of the SS304/316 for both anode and cathode case is 0.25 mm +/- 0.02 mm.

Application Note

· After perfectly crimping, the External Height should be around 3.0mm.

· The diameter of the inner ring of the plastic gasket for the coin cell 2032 is around 16.39mm.

· Usually, a case does not need to clean before crimping, but if you do need to clean the case, please put in ethanol for 4-6 hrs, and use Oven to dry serval hours, (please set the oven to 30C, if it has ORING.)
