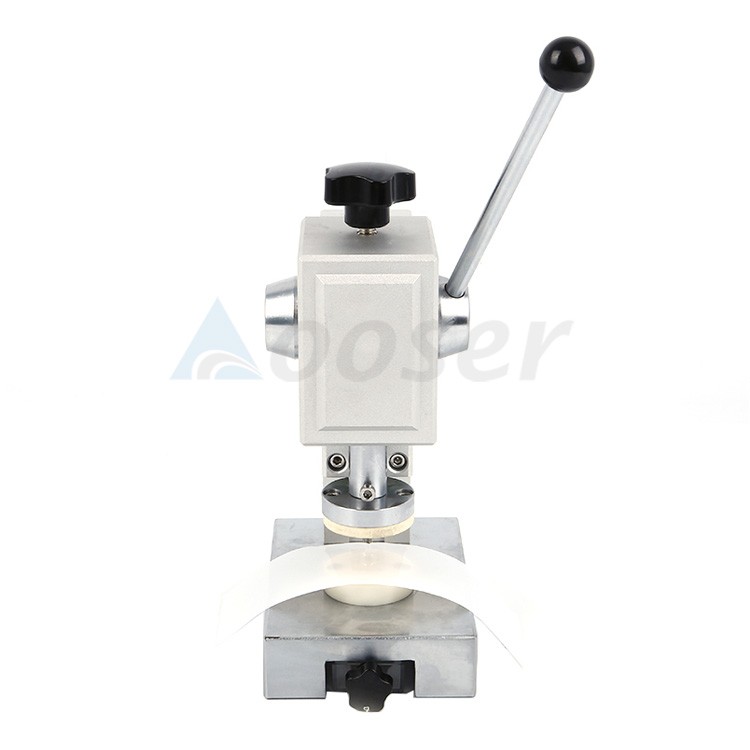

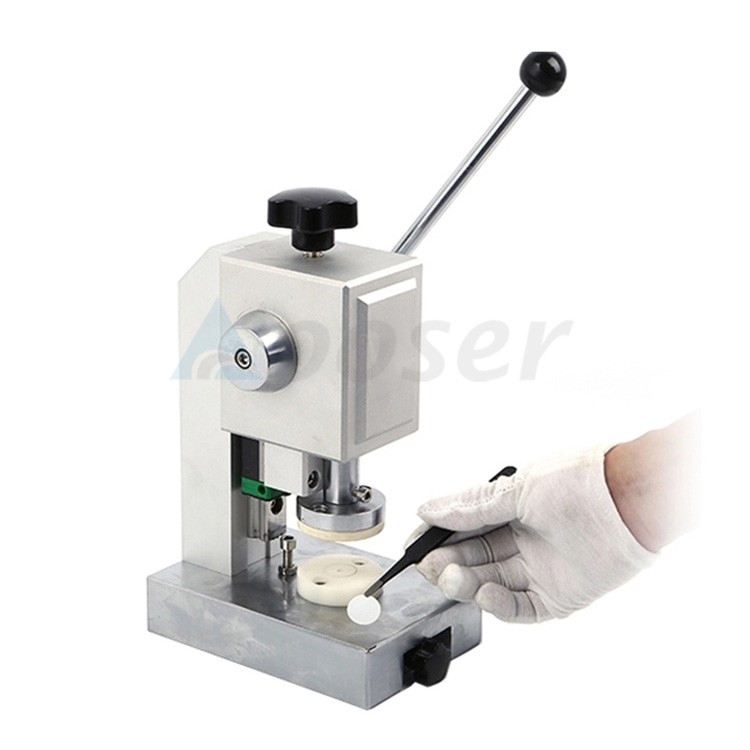

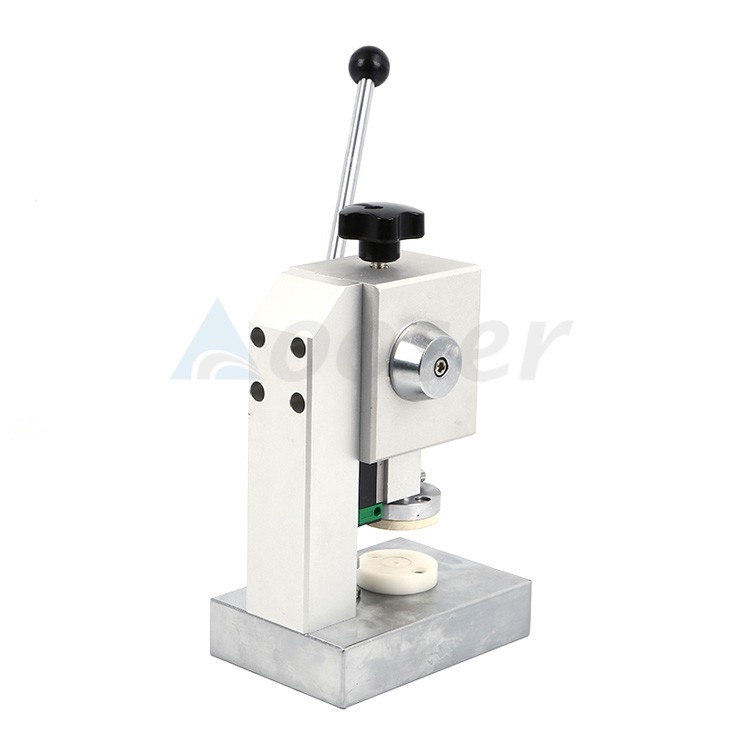

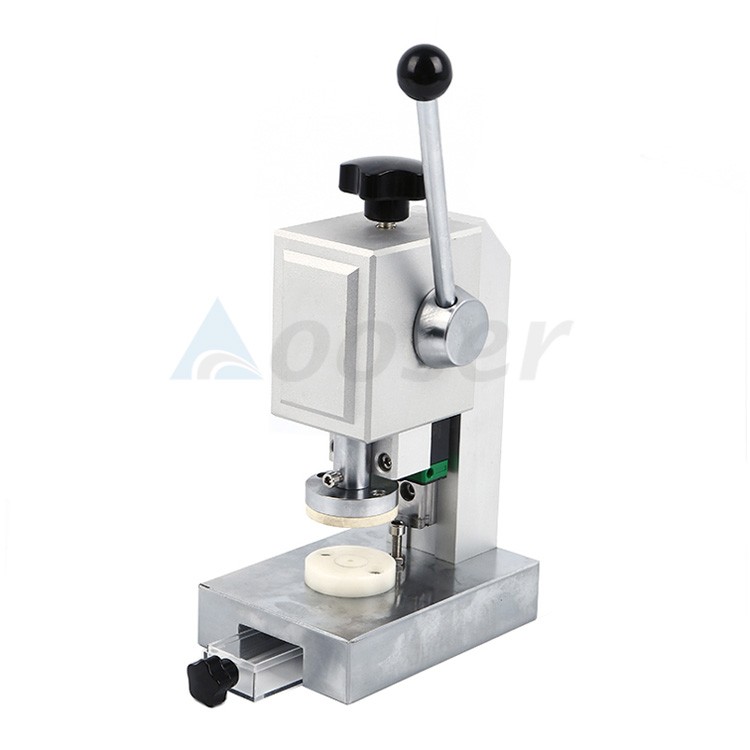

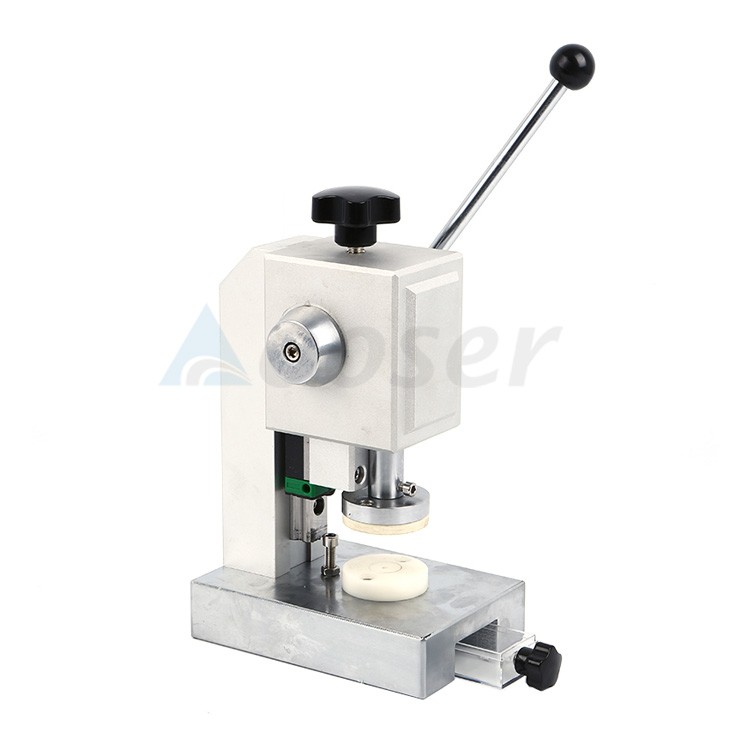

Compact Lab Coin Cell Disc Punch Machine with Optional Punching Diameter

Compact Lab Coin Cell Disc Punch Machine with Optional Punching Diameter

Model: AS-CP60

Lead time: 5-10 Days

Features:
1. High accuracy ,no burrs,rag and indentation .
2. It can cut various of battery materil with thinkness 0.001-0.5mm .
3. Compact size, easily operating, quick and flexible use in the glove box.
4. The machine body is made of anti-corrosion material that is anti-rust forever and has a nice appearance.

Precision Lab coin cell Disc Punch Machine with Optional Punching Diameter

Description:

AS-CP60 coin cell battery punching machine is a patented product independently developed by AOOSER. It is specially used for coin cell electrode and battery separator round disc cutting. It can punching and blanking on the sheet material with 6-24mm diameter molds. The whole machine is compact in design and flexible in use. It is very suitable for laboratory battery electrode sheet blanking on cathode, anode and PP/PE separator with 0.001-0.5mm thickness.

Features :

1. High accuracy ,no burrs,rag andindentation .

2. It can cut various of battery materil with thinkness 0.001-0.5mm .

3.Compact size,easily operating, quick and flexible use in the glove box.

4. The machine body is made of anti-corrosion material that is anti-rust forever and has a nice appearance.

Parameters:

Machine model	Disc cutter for coin cell electrode and separator punching AS-CP60
Operating	By Hand

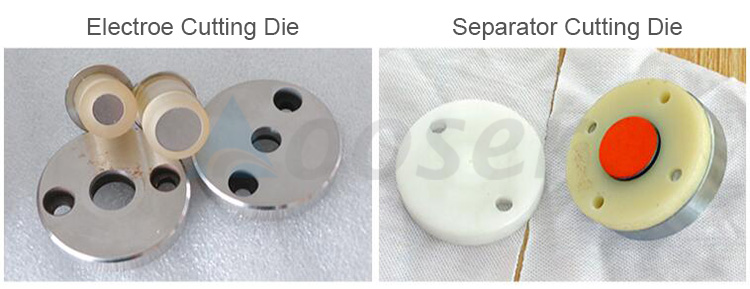

Punching size	Recommend configuration: φ15mm electrode punching die and φ19mm separator cutting die. (φ6-24mm customized)
Laboratory use	For making CR20xx series buttonbatteries, we suggest you can choose three cutting dies: A 15mm (for negative side case, which is 16.5mm in diameter) B 19mm (for positive side case, which is 20mm in diameter) C 20 mm (for separator to fully separate the electrodes) For CR2450 coin cell: 20mm cutting die is used for cutting electrode disc; 24mm cutting die for either electrode or separator disc.
Punching stroke	Max 30mm
Punching thickness	0.005-0.5mm electrode and separator
Advantages	Simple operation Light weight Can both cut electrode and separator
Dimension(LWH)	110mm150mm220mm(without handle)
Net weight	About 8 kg
Package weight	About 11 Kg
Warranty	One year limited with life time technical support
