Lab Small Manual Ring Disc Puncher for Coin Cell Electrode and Separator Cutting

Material:Carbon Steel

Diameter:3-32 mm optional

Accuracy:0.05 mm

Length:80-118 mm

Origin:China

Manual Ring Disc Puncher for coin cell Electrode and separator Cutting

Description:

Made of alloy steel, high-frequency heat treatment on the head, high hardness, sharp cutting edge Durable.

Puncher : 3-25mm diameter can be chosen, for coin cell, we usually use 12 15 16 18 20mm model.

Rubber Blanket : 500*500*3mm sheet, used for buffer. (Optional, you can prepare by yourself)

Can be used for electrode, copper foil, aluminum foil and battery separator punching to disc pieces.

It doesn’t include the hammer, but if you want, we can also supply.

Specification:

Model	Manual Coin Cell Disc Punch Tool AOOSER-MP-C2
Warranty	One year limited warranty with lifetime support
Material	Carbon Steel
Diameter	3-32 mm optional
Accuracy	0.05 mm
Length	80-118 mm
Weight	0.5 kg

Manual Coin Cell Disc Punch Tool

Manual Coin Cell Disc Puncher

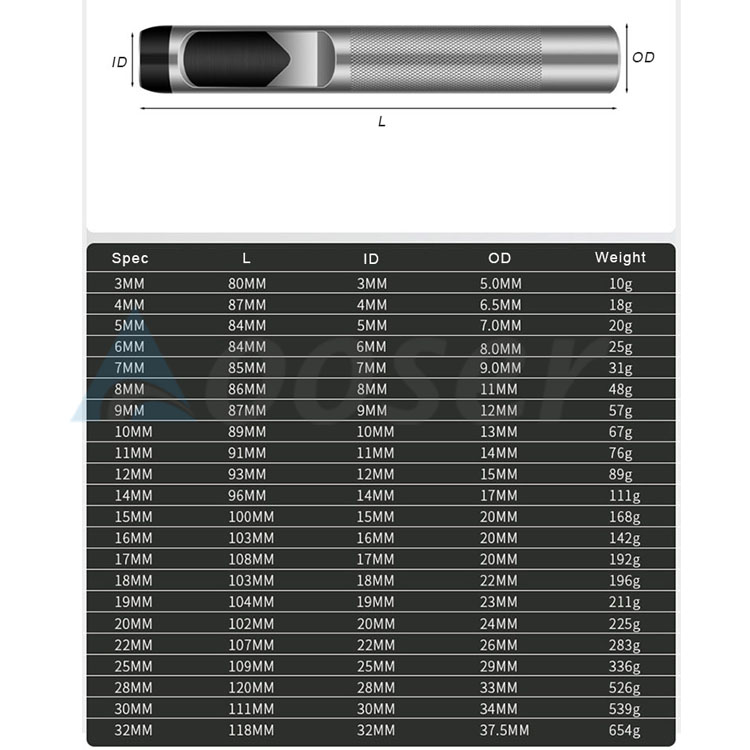

specification of Manual Coin Cell Disc Puncher
