AS-BFZ200 is mainly applied to flexible packaging (medium and small size) lithium battery in the injection of liquid after standing vacuum, hot compression package; simple secondary packaging.

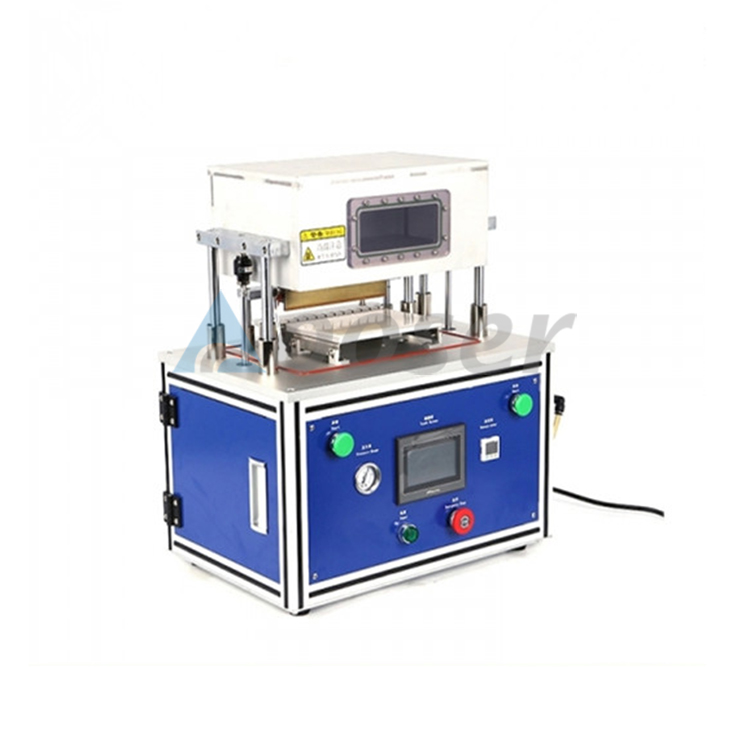

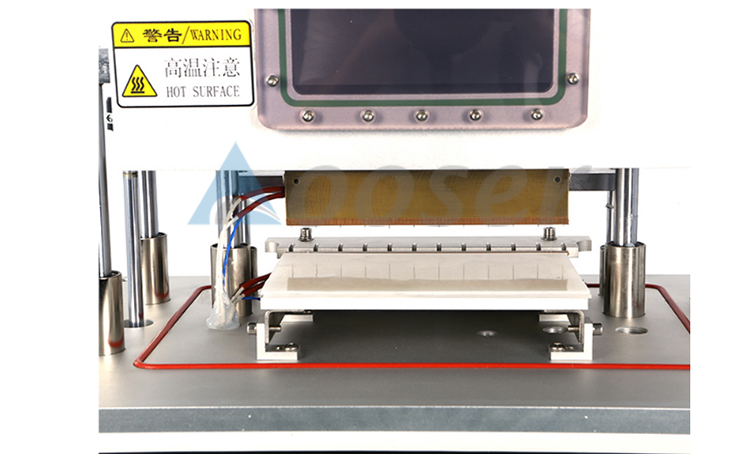

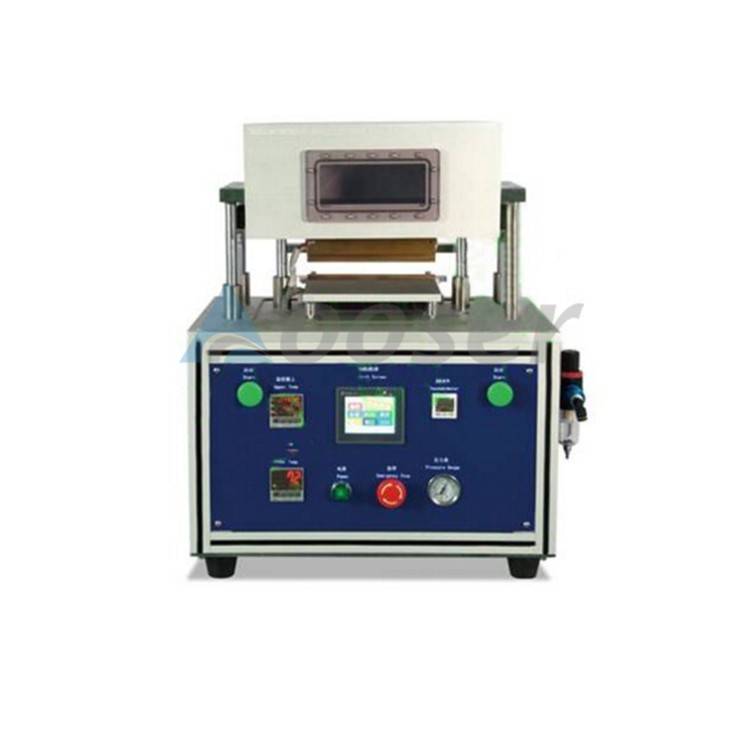

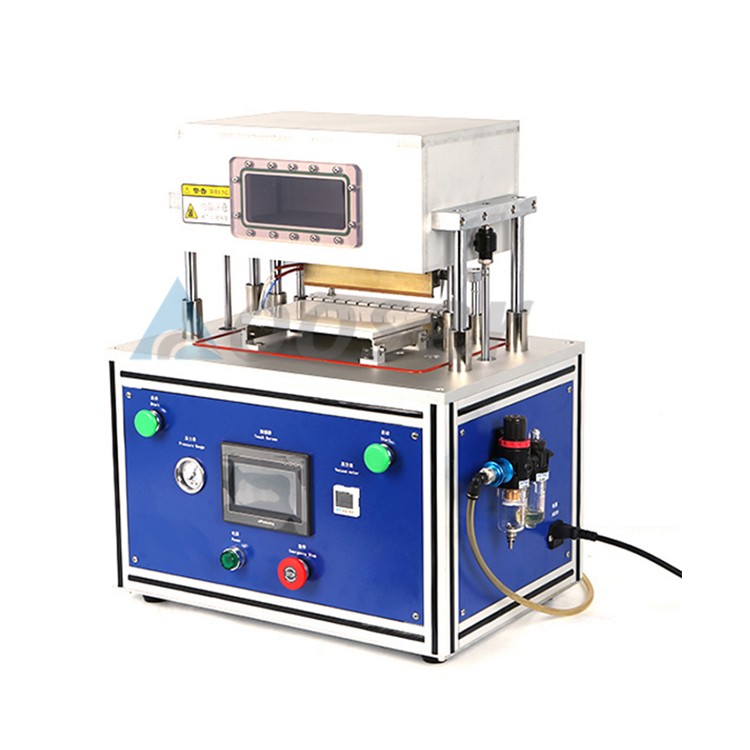

Pouch Cell Final Vacuum Sealing Machine for Aluminum-Laminated Case
Description:
AS-BFZ200 is mainly applied to flexible packaging (medium and small size) lithium battery in the injection of liquid after standing vacuum, hot compression package; simple secondary packaging.
Specification:
|
Sealing head temperature |
RT-250℃,adjustable |
|
Temperature control precision |
±1.5℃ |
|
Heat sealing pressure |
0-7kg/cm2,adjustable |
|
Heat sealing time |
0-99 second,adjustable |
|
Sealing width |
5mm,adjustable |
|
Max sealing size |
200mm(L)*150mm(W) |
|
Vacuum degree |
-90Kpa ~ 0 adjustable (the buyer-owned vacuum pump) |
|
Voltage |
220V/50Hz |
|
Power |
300w heat pipe, heating when the power consumption of about 0.6KW |
|
Compressed air source |
0.5-0.7Mpa |
|
Size |
L500mm*W500mm*H700mm |
|
Head parallelism |
with triple carbonless paper, head pressure at 0.6MPa, the temperature at 200 ℃ when the seal out of the seal |
|
Air consumption |
about 0.2L compressed gas / each time |
|
Pneumatic working speed |
≥ 180 times / h |
|
Dimension |
Working Department: 520mm * 350mm * 650mm; |
