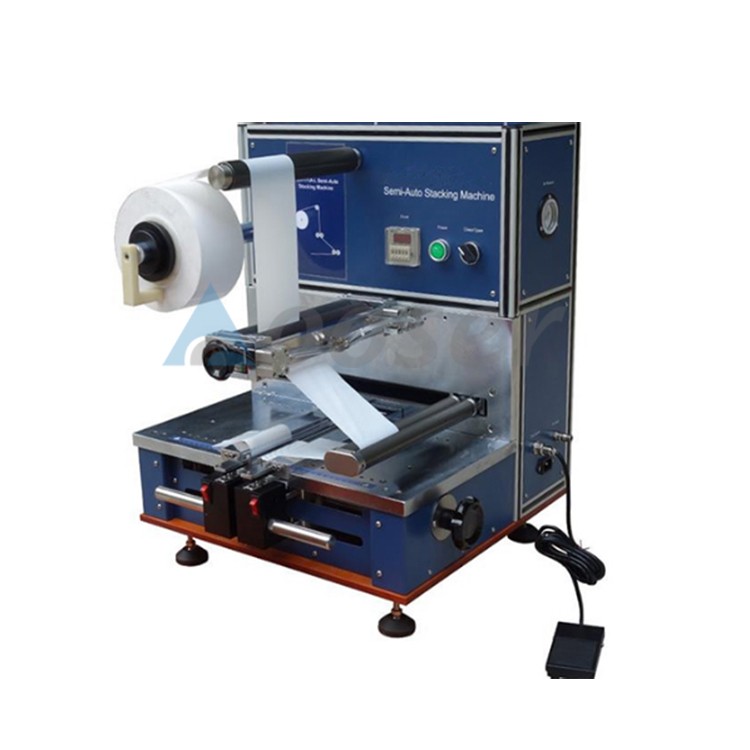

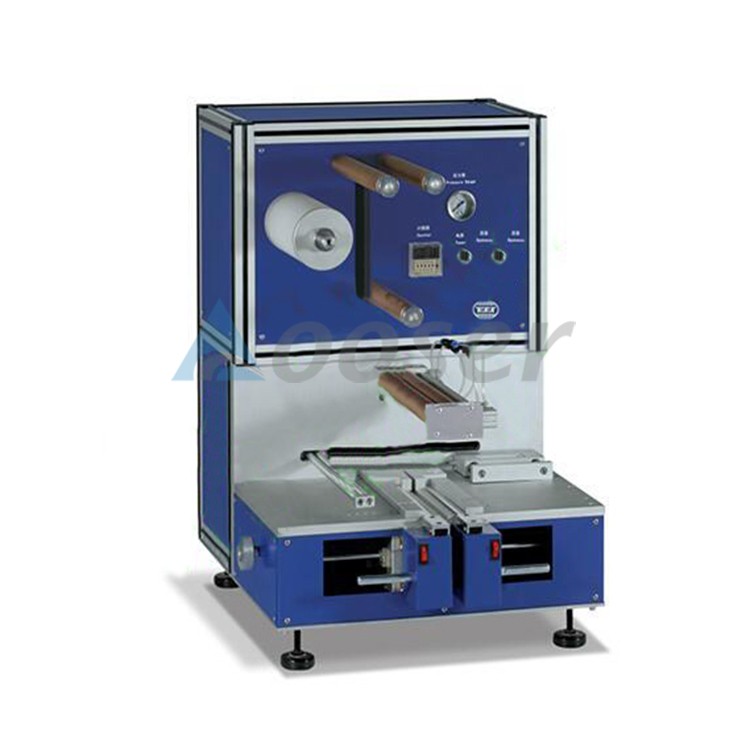

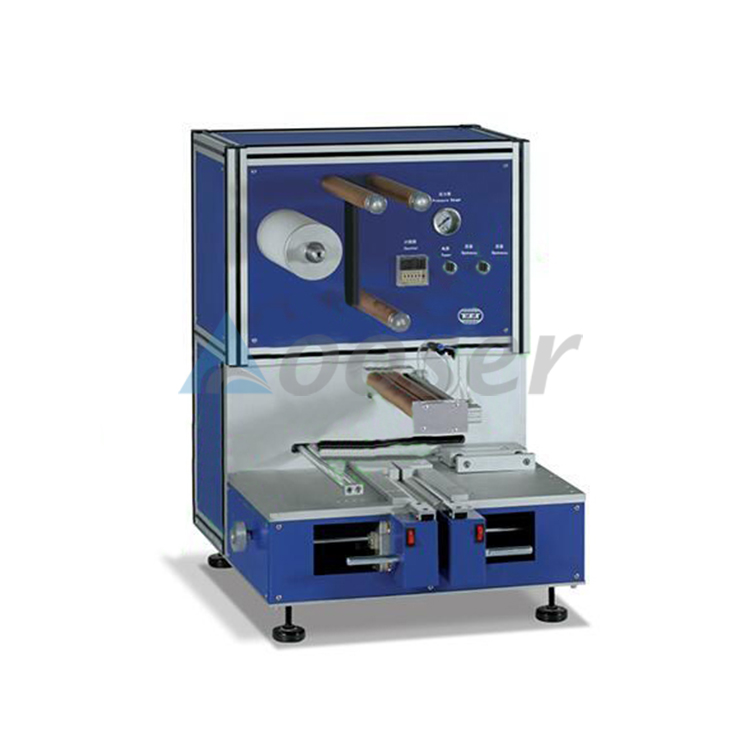

AS-S-DP200 Stacking Machine is suitable for lithium battery Z-type lamination process. The device is equipped with correction device, diaphragm release tension control device and auxiliary positioning device. Only need to manually feeding the electrodes, through the control button to control the cylinder to complete the stack. Simple operation and high efficiency.
Lithium ion Battery Stacking Making Machine For Pouch Cell
Description:
AS-S-DP200 Stacking Machine is suitable for lithium battery Z-type lamination process. The device is equipped with correction device, diaphragm release tension control device and auxiliary positioning device. Only need to manually feeding the electrodes, through the control button to control the cylinder to complete the stack. Simple operation and high efficiency.
Advanced Features:
* Desktop type, can be placed on a normal desktop;
*The adjustment, operation and maintenance of the machine is simple and easy;
*Applicable to a large range of cell laminations;
* High efficiency, with digital counter;
* Use the foot switch to control the cylinder movement;
*The machine is small in size and exquisite in appearance.
Specifications:
|
Working Voltage |
AC220V 50/60Hz |
|
Stacking Electrode Size |
· 230mm x 150mm Max. · 44mm x 44mm Min. Customizable as customer's request |
|
Max. Electrode Thickness |
Piled up thickness < 9mm |
|
Aligning Accuracy |
±0.3mm for stacked electrodes |
|
Acceptable separator Roll Size |
220mm O.D Max. |
|

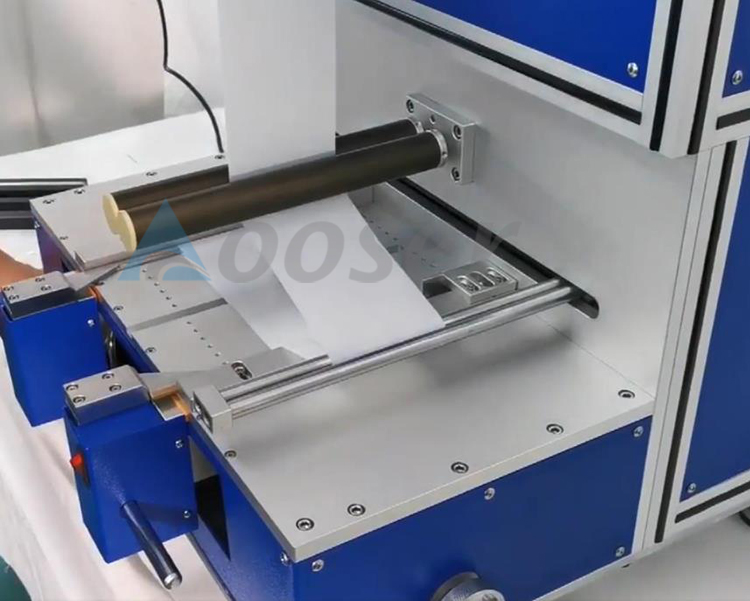

Slidable Electrode Fixture |
Two slidable fixtures ensure a compact, tight electrode stacking |
|
Electrode Tongs |
One electrode tongs are included for easy electrode pick-up |
|
Suggested Air Pressure |
0.6 - 1.5 MPa
(Air compressor is not included in the standard package)
|
|
Product Dimensions |
480mm(L) x 560mm(W) x 650mm(H) |
|
Net Weight |
55Kg |
|
Compliance |
CE Certified |
|
Warranty |
· Two Years limited warranty with lifetime support |
