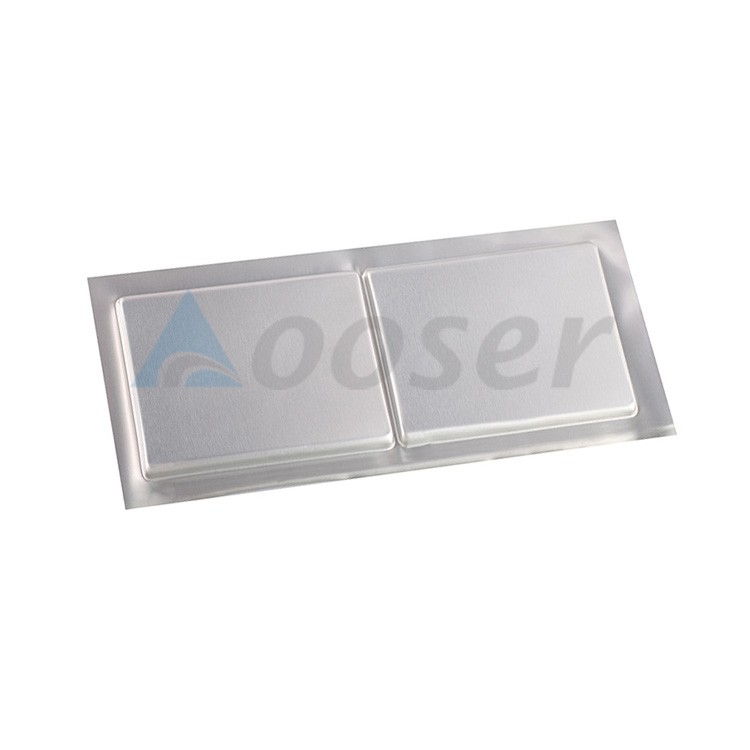

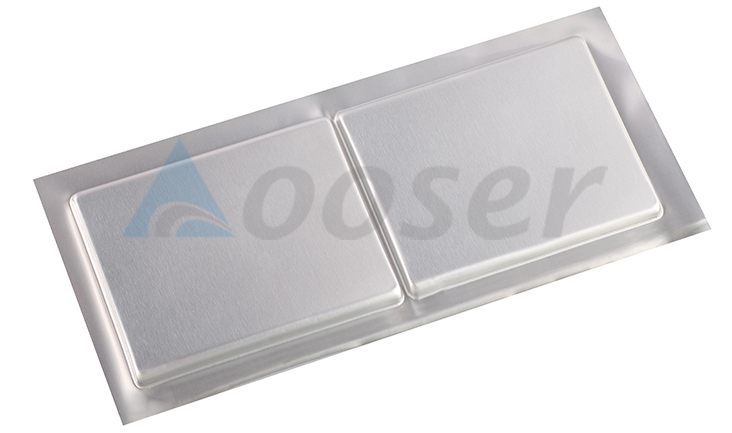

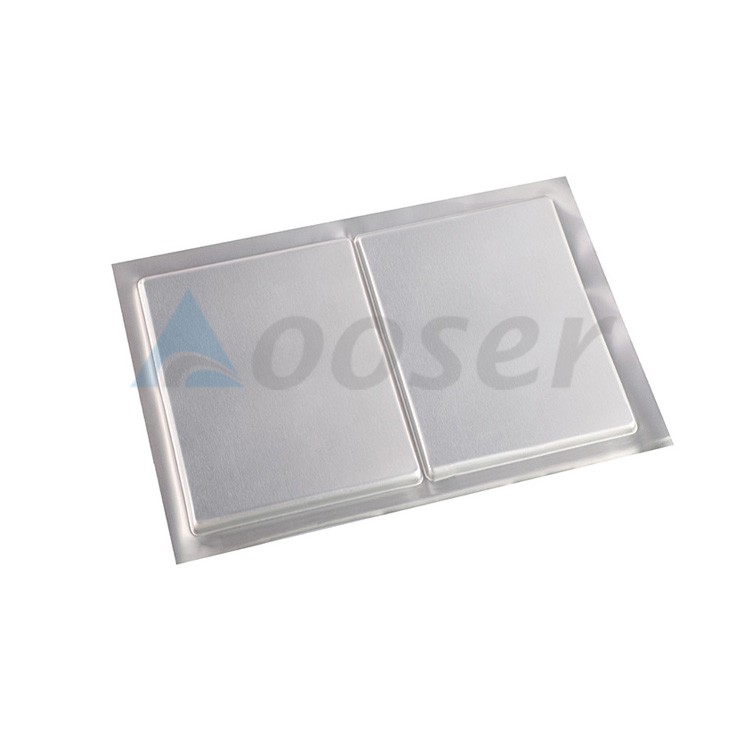

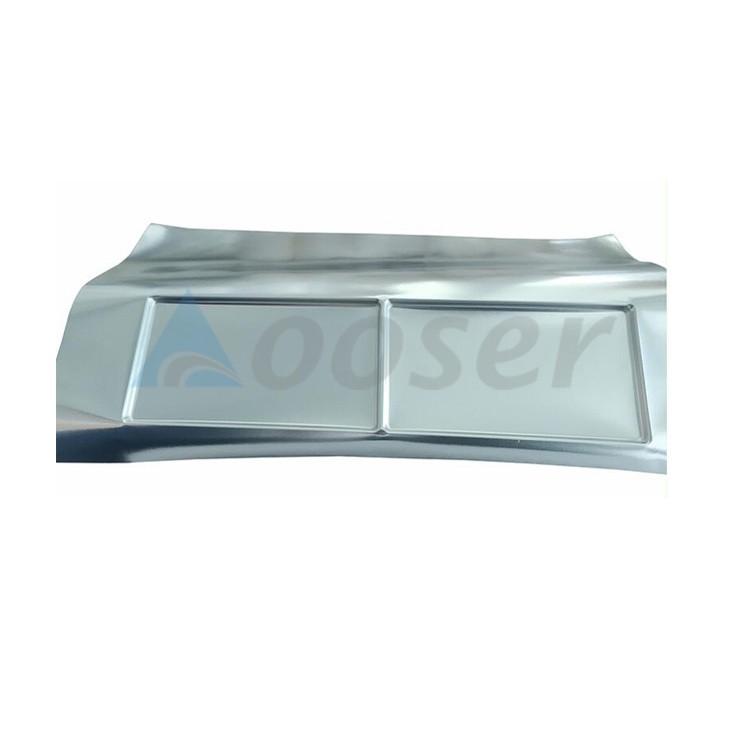

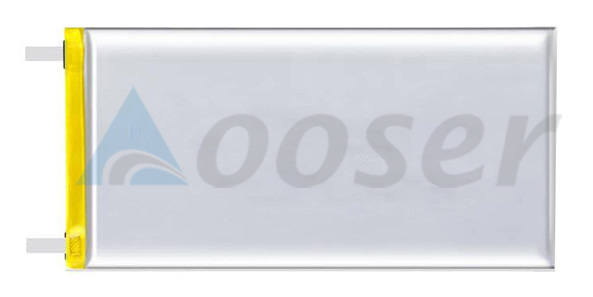

Pouch Cell Ready Made Aluminum Laminated Film for Lab Lithium Batteries Cases

Consist

D-EL40H

ON25

DL4

AL40

Improved PPa15

Improved PP30

Acid modified resin combination, waterproof and acid attacks

(Thickness 113µm)

Thickness

µm

Designed

113

Steam Barrier Property

60°C90%RH 336H

PPm

Sealing Pressure 1.0MPa

50↓

Initial strength of laminated layers(AL/PPa)

N/15mm

11~12

Initial sealing strength

N/15mm

Sealing Pressure 0.5MPa

70~80

190°C 3seconds

Sealing Pressure 1.0MPa

85↑

The electrolyte resistance(Test for sealing into film strength)

N/15mm

4.0↑

60°C 14days

Electrolyte resistance(Test for sealing into film strength)

N/15mm

Sealing Pressure 0.5MPa

40~50

60°C 14days

Sealing Pressure 1.0MPa

50~60

Sealing strength for electrolyte

N/15mm

Sealing face pressure 0.5MPa

80~90

190°C 3seconds

Sealing face pressure 1.0MPa

80~90

Punch forming depth

mm

Control drape pressure 0.17MPa(Size:80*120mm)

5.0↑
