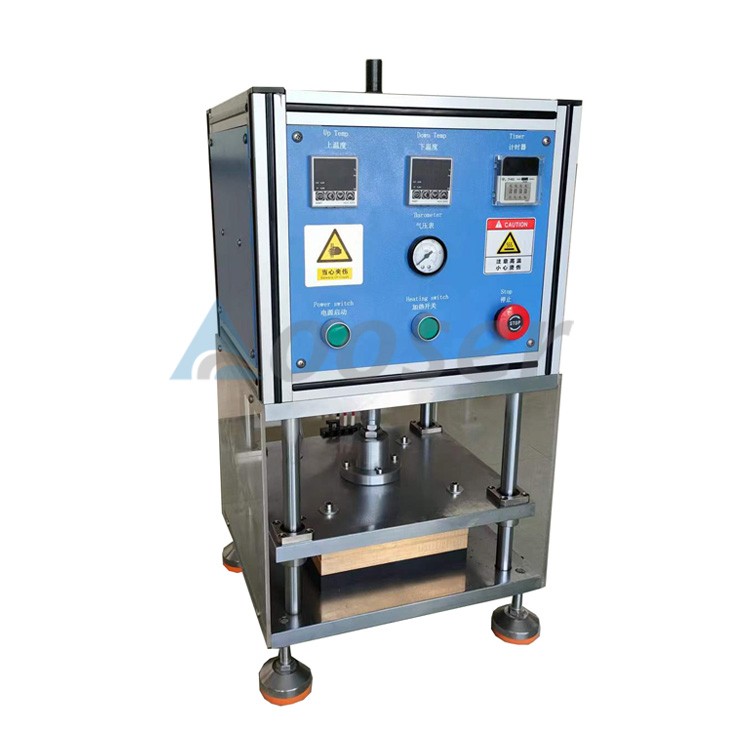

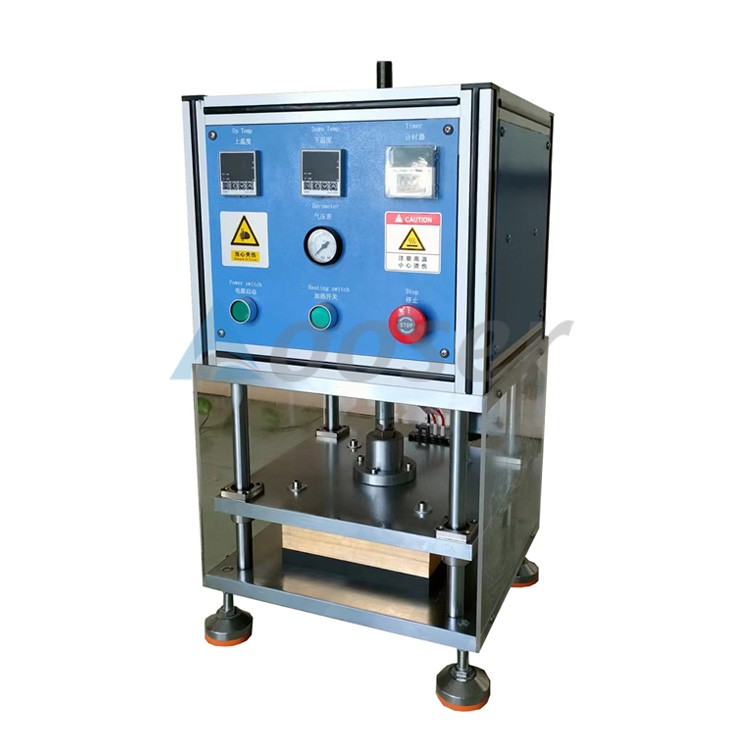

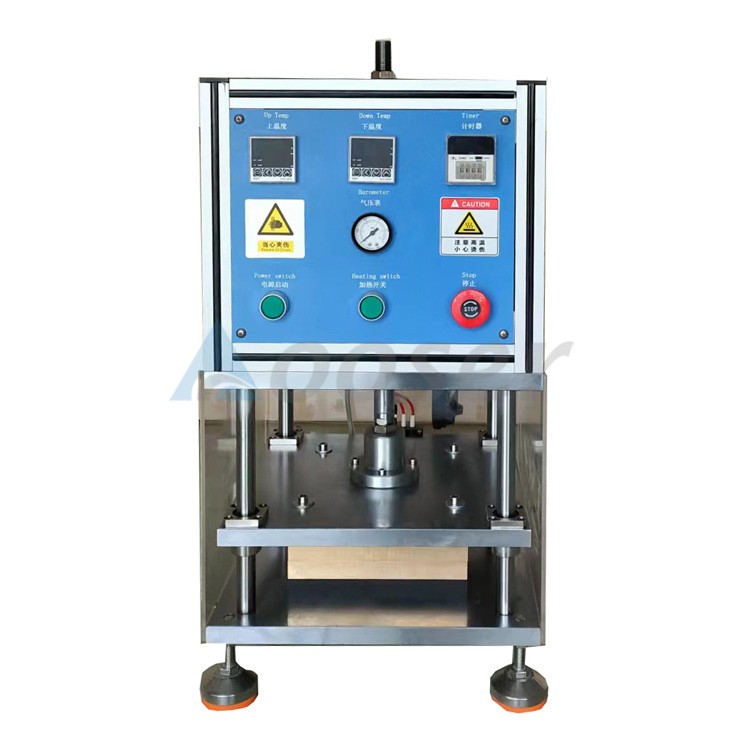

Pouch Cell Hot Press Shaping Machine For Battery Core After Stacking Process

Model: AS-RYJ-200
Input voltage: 220V/50Hz, 110V optional
Power: 2000W
Pressure: 1000 kg
Hot press area: 200*200mm
Heating TEM: RT-150℃, adjustable

EMAIL

Pouch Cell Hot Press Shaping Machine For Lithium Battery Core After Stacking Process


Description:

AS-RYJ-200 hot press machine is mainly used for battery core hot press shaping after stacking or winding process, easy for battery core into the pouch or shell.

Using this hot press shaping machineon the template by pressure and heat to reduce batteries thickness with finalize design, reducing the battery core short circuit rate and ensure the consistency of the thickness of the finished batteries.


Functional Overview:

1: Suitable for hot pressing and cold pressing of soft-pack lithium batteries

2: Air pressure working speed: 500 times/H

3: Required pressure: 0~1T adjustable (3T can be customized)

4: Effective pressing working area: 200*200mm, 300*300mm, optional

5: The parallelism of the upper and lower hot pressing plates <0.05mm

6: Emergency stop switch, safe operation

7: Using Taiwan Sentuo booster device, the pressure time is adjustable

8: The upper and lower molds of hot pressing have heating devices,

9: The hot pressing temperature is adjustable at +20~150°C


Specifications:

Name

Hot press machine for pouch cell shaping

Model

AS-RYJ-200

Input voltage

220V/50Hz, 110V optional

Power

2000W

Structure

The LCD display shows Temperature

Using light curtain protection device, guarantee security

With abnormal temperature alarm function

Hot-pressing time, temperature, pressure can be adjusted

Use automatic and semi-automatic control, easy to operate

Pressure

1000 Kg adjustable, can be customized to 3000Kg

Air source

0.5-0.8MPa

Hot press area

200*200mm, can be customized to 300*300mm

Heating TEM

RT-150℃, adjustable

TEM accuracy

±2℃

Parallelismof press plate

<0.05mm

Dimension(L*W*H)

350*320*550mm

Weight

About 90kg

Warranty

One year limited warranty with lifetime online support
