  • Wet Film Applicator Doctor Blade for Lab Coin Cell Coating

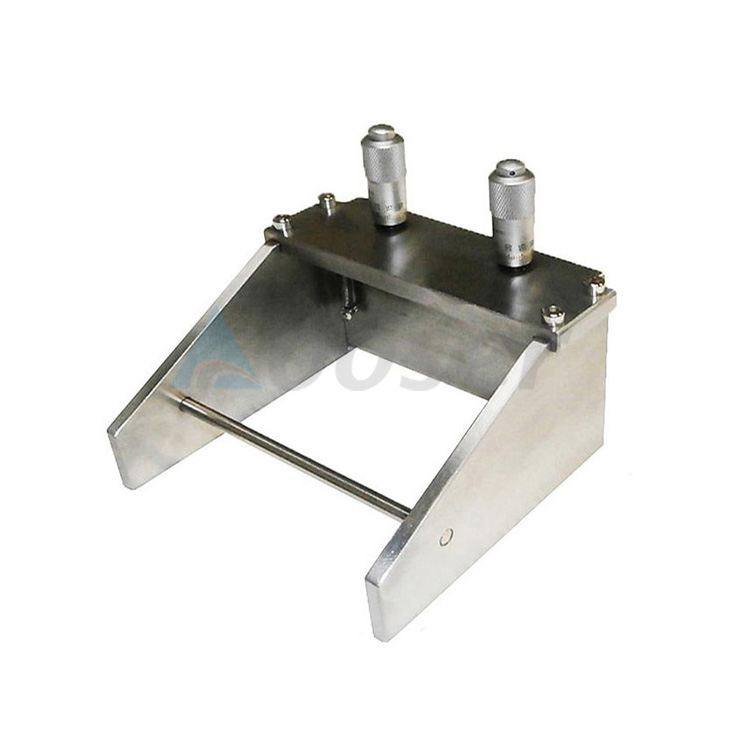

Wet Film Applicator Doctor Blade for Lab Coin Cell Coating

Wet Film Applicator Doctor Blade for Lab Coin Cell Coating

1. Model: AS-DB-100
2. 100 mm standard width
3. Make wet film thickness between 0 - 3500 microns
4. Micrometer head's controllable accuracy is 10 microns
5. Made of SS304 stainless steel

EMAIL

100mm Adjustable Doctor Blade for coin cell Electrode Coating


Description:

This Adjustable doctor blade is unique wet film applicator features micrometer heads for knife blade adjustment. It is an ideal tool for lab coin cell electrode coating.

The operator sets the blade clearance by adjusting the micrometers. This is the excellent tool to make the quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at the lower cost. Stainless steel knife blade with the precision ground edge.


Parameters:

Product Name

Wet Film ApplicatorAdjustable Doctor Blade for Coin Cell Electrode Coating

Features

100 mm standard width

Make wet film thickness between 0 - 3500 microns

Micrometer head's controllable accuracy is  10 microns

Made of SS304 stainless steel

Application Notes

Replacement springs are available for future maintenance, please contact us.

Optional

Upgrade to the digital micrometers for better accuracy, with customized doctor blade. Note that the for 100mm applicator, the two digital Micrometer Heads need to sit a little angle due to the width.

NOT naturally compatible film applicator, but could customize our film applicator width above 100mm to fit. Please email us first to order customized doctor blade, the separate orderwill notfit.

Doctor Blade for Lab

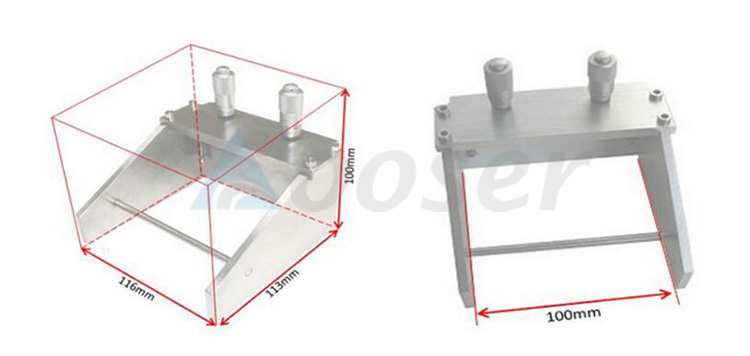

Dimension of Doctor Blade Wet Film Applicator
