Model: AS-DB-250SD
Material: 304 Stainless Steel
Width: 250mm, optional
Baffle: Slurry Guide
Thickness: 0-3mm

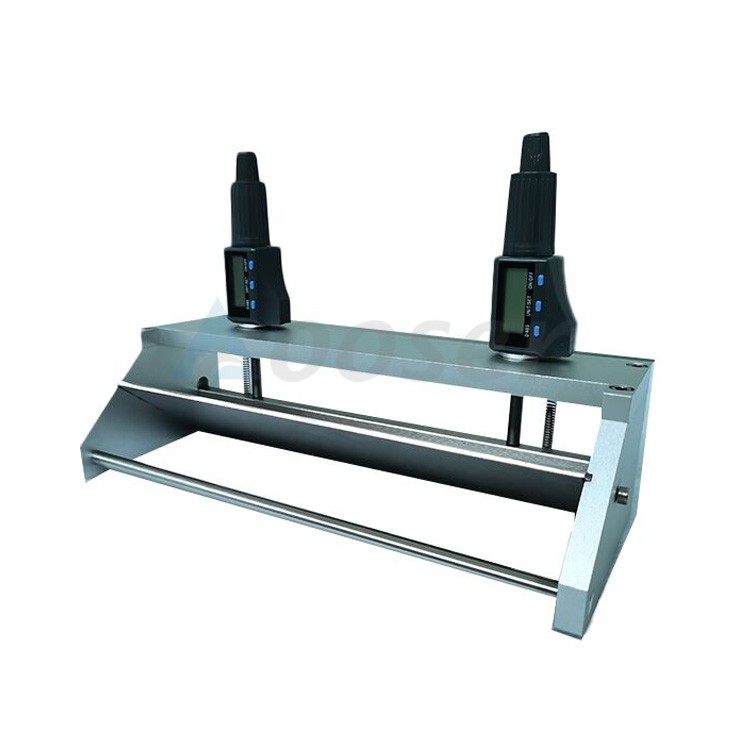

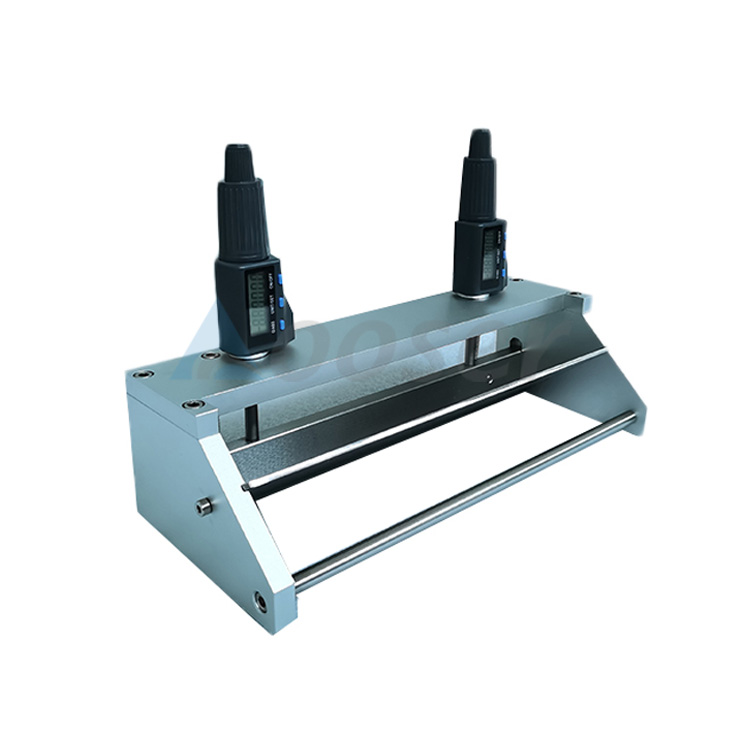

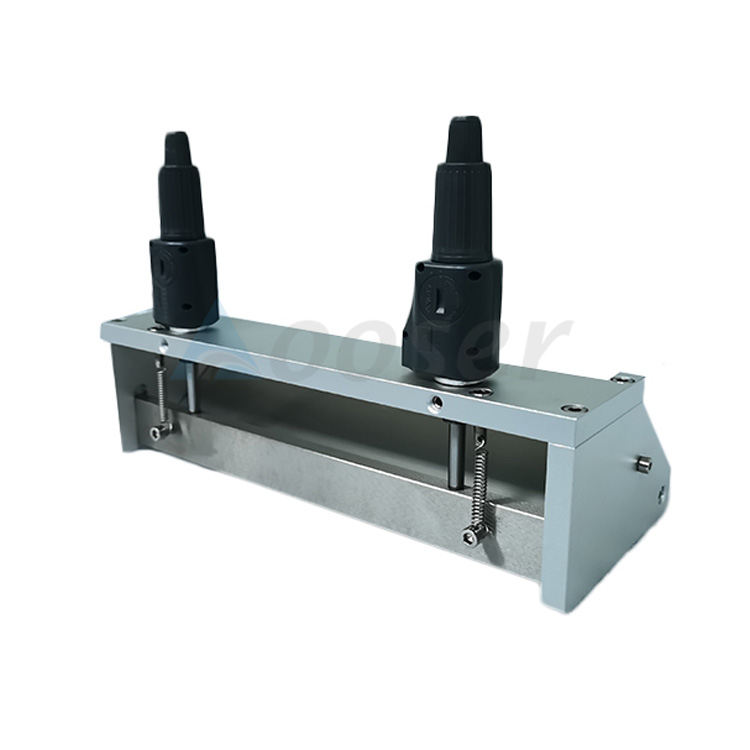

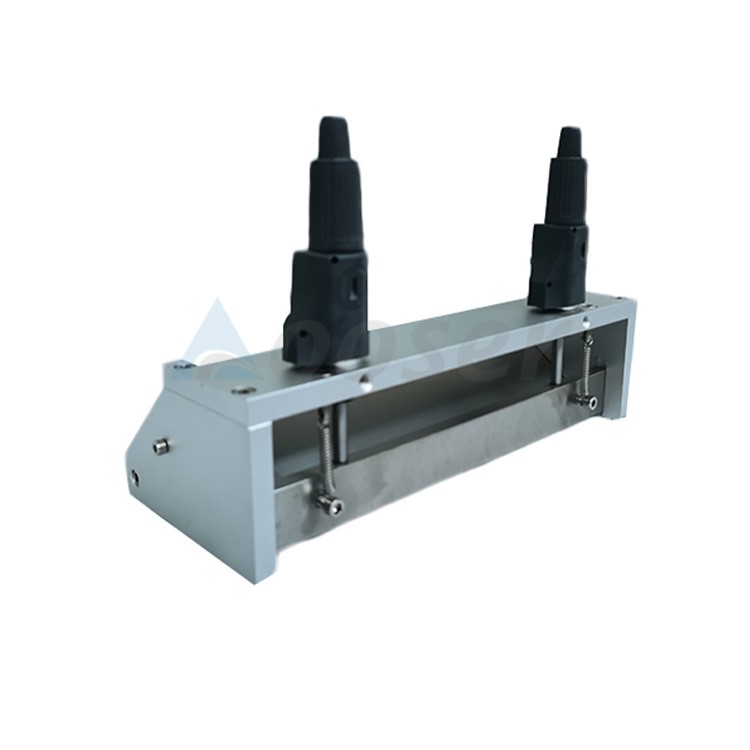

Lab Film Casting Knife Doctor Blade for Battery Electrodes Film Coating
Description:
Adjustable Film Applicator - This unique doctor blade features micrometer heads for knife blade adjustment. This is excellent tool to make quality film for material research laboratories to make battery electrodes and various material coatingwith lower cost. The 304 stainless steel knife blade with precision ground edge.
Features:
1. 250 mm standardcoatingwidth
2. Make wet film thickness between 0 - 3000 microns
3. Micrometer head's controllable accuracy is 10 microns
4. Made of SS304 stainless steel
5. Slight weight, esay operation
Parameters:
|
Product Name |
Lab Doctor Bladewith Slurry Baffle |
|
Model |
AS-DB-250SD |
|
Width |
250 mm standard width, other width optional |
|
Wet film thickness |
0-3mm |
|
Micrometer head's controllable accuracy |
10 microns (Digital display is 1um) |
|
Slurry Capacity |
About 100 ml |
|
Optional Function |
Built in slurry guiding plate to make film coating at easy |
|
Warranty |
1 Year with lifetime support |
