Item NO.:AS-TCM-350

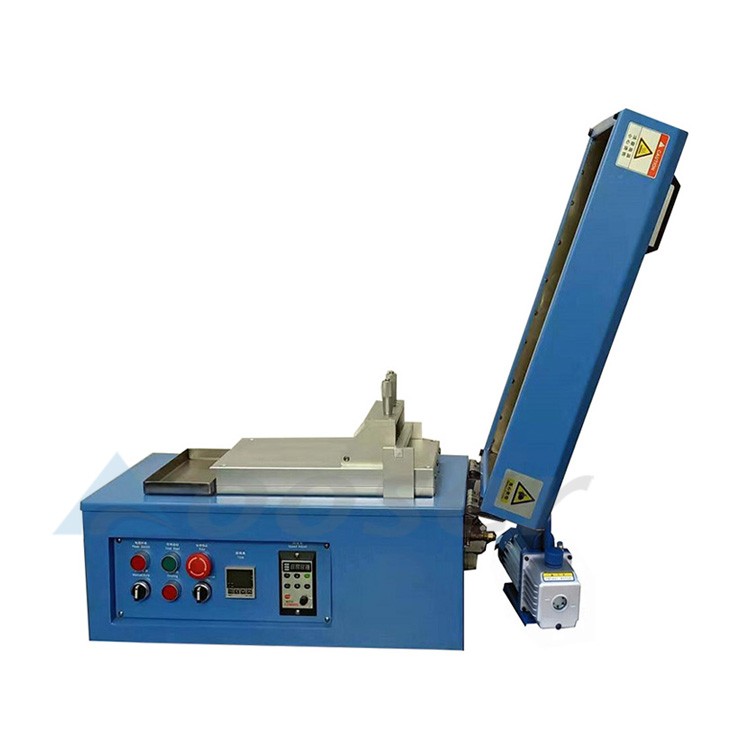

Item Name:Automatic Tape Casting Machine with Heater and Dryer
Power: 650W
Origin:China
TCM-350 Tape Casting Machine with Vacuum Pump and Dryer for Laboratory
Description:
1.This tape casting machine is specially used for continuous coating process of cathode and anode electrode of lithium ion batteries, suitable for small-scale experiments in colleges and enterprises.
2.Can also be used for ceramic films, crystal films, special nano films and so on.
3.The body is made of stainless steel, beautiful and durable, and the surface is sprayed with plastic, which is easy to operate.
Features:
1. The coating film speed can be adjusted within the range of 0-100mm / sec, with digital display;
2. Vacuum aluminum plate, can quickly place or remove the electrodes, copper foil, aluminum foil;

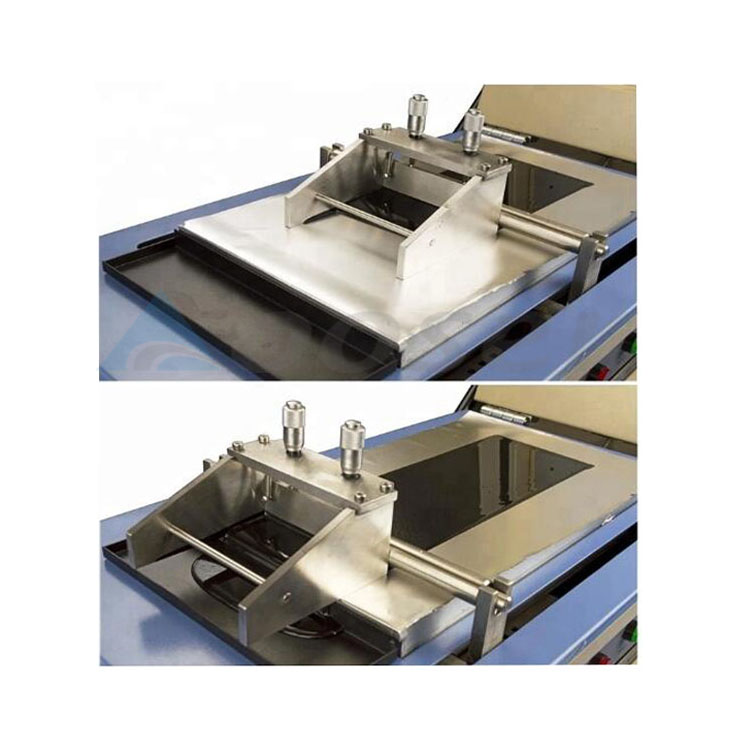

3. Doctor blade with adjustable coating thickness (accuracy 0.02mm) width 0-150mm;
4. The film coating motor is a low-speed synchronous synchronous motor from Taiwan Edley;
5. The ball screw and linear guide are only imported from Taiwan with high-precision HIWIN brand;
6. The doctor blade(applicator) adopts the SUS316L stainless steel material imported from Finland;
7. Drying system with strong wind heating and digital display temperature control, the maximum working temperature is 150℃.
|
Item Name |
Automatic Tape Casting Machine with Heater and Dryer |
|
Model |
AS-TCM-350 |
|
Source Voltage |
AC220V ±10%, 50Hz |
|
Power |
650W |
|
Stroke Range |
10 - 350mm adjustable by using Adjustable Position Switch |
|
Vacuum plate |
Equipped with vacuum aluminum plate |
|
Coating Speed |
0-100mm/s, Step-less transmission ;Accuracy: 10mm/sec |
|
Dimension of vacuum plate |
L465mm×W200mm×H30mm |
|
Doctor Blade width |
150mm |
|
Regulating range of blade |
0.02~2.5mm |
|
Heating temperature |
Room temperature ~ 150℃ Digital displayed thermostat, the accuracy is±1℃ |
|
Weight |
65KG |
|
Dimension |
About L700mm×W310mm×H330mm |
|
Standard Configurations |
*applicator *no-oil vacuum pump * Pump pipe *horizontal rod |
|
Warranty |
One year limited warranty with lifetime support |
|
Origin |
China |
PACKAGE LIST
|
Item |
Qty |
|
Tape Casting Machine AS-TCM-350 |
1 set |
|
150mm width doctor blade |
1 set |
|
Socket Head Wrench |
1 set |
